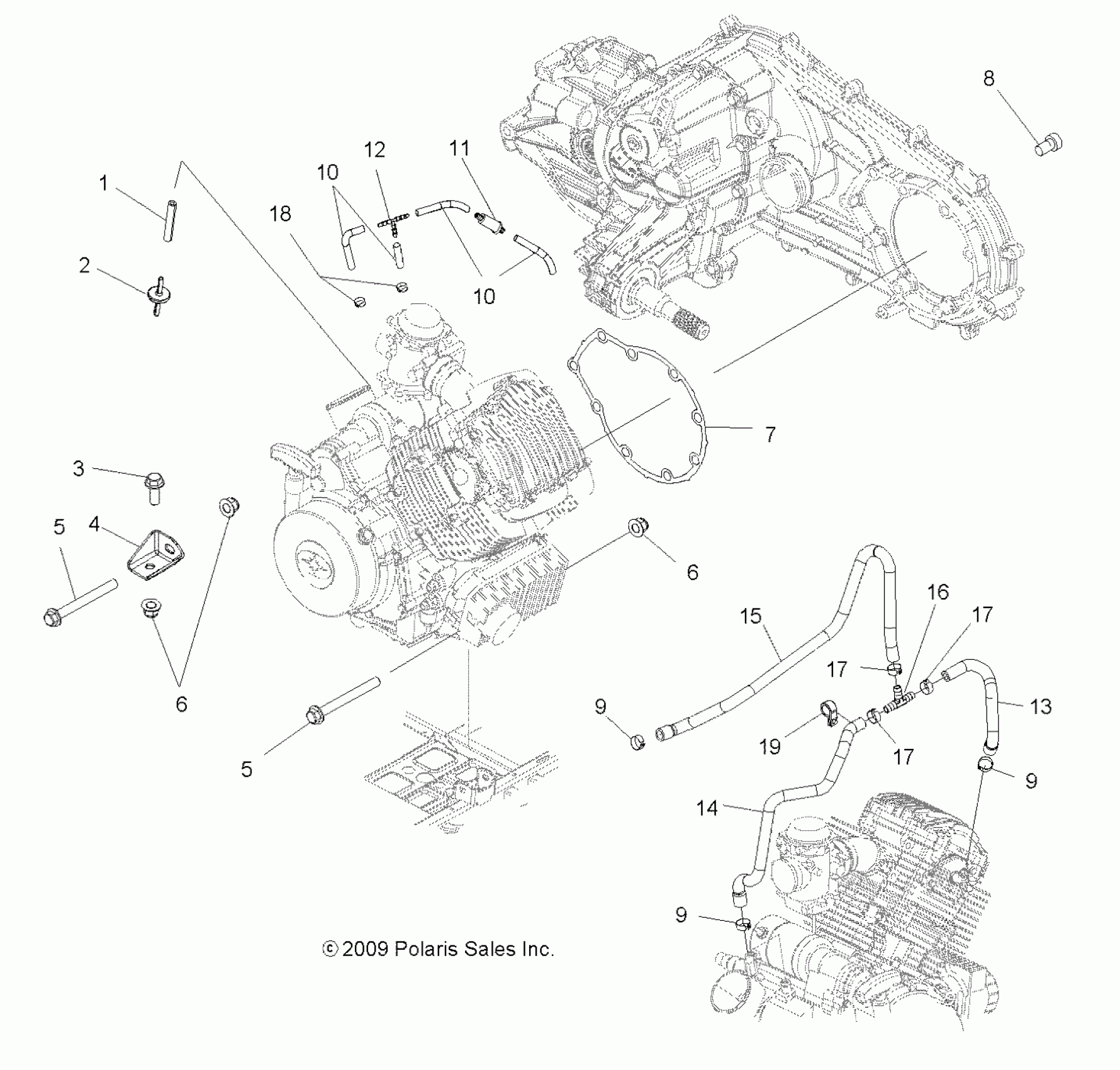

Polaris HAWKEYE 2X4 - A11LB27AA ENGINE, MOUNTING - A11LB27AA (49ATVENGINEMTG10HAWK) Diagram

#

Description
Price

1

LINE, FUEL

8360009-600

Unavailable

2

VALVE, CHECK

7051011

Unavailable

3

SCR-HXFL-M10X1.5X20 8.8 Z NYL

7518460

$1.59

4

Mount, Engine, Rear, RH

5248864

$20.63

5

Screw

7518466

$4.79

5

Screw

7518466

$4.79

6

Nut, Flange

7547313

$1.49

6

Nut, Flange

7547313

$1.49

7

Gasket

5812849

$31.99

8

Screw

7518483

$4.79

9

Clamp, Hose

7080694

$6.53

9

Clamp, Hose

7080694

$6.53

9

Clamp, Hose

7080694

$6.53

10

Line, Fuel

8450003-1525

Unavailable

10

Line, Fuel

8450003-1525

Unavailable

11

FILTER

2530009

$5.65

12

FITTING, TEE

7052075

$9.59

13

Hose, Breather, Engine

5413289

$7.43

14

Hose, Breather, Crankcase

5413290

$9.11

15

Hose, Breather, Airbox

5413291

$28.32

16

Fitting, Tee

7052432

$14.75

17

Clamp, Hose

7080699

$1.59

17

Clamp, Hose

7080699

$1.59

17

Clamp, Hose

7080699

$1.59

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

19

Clamp, Hose

7080880

$5.59
