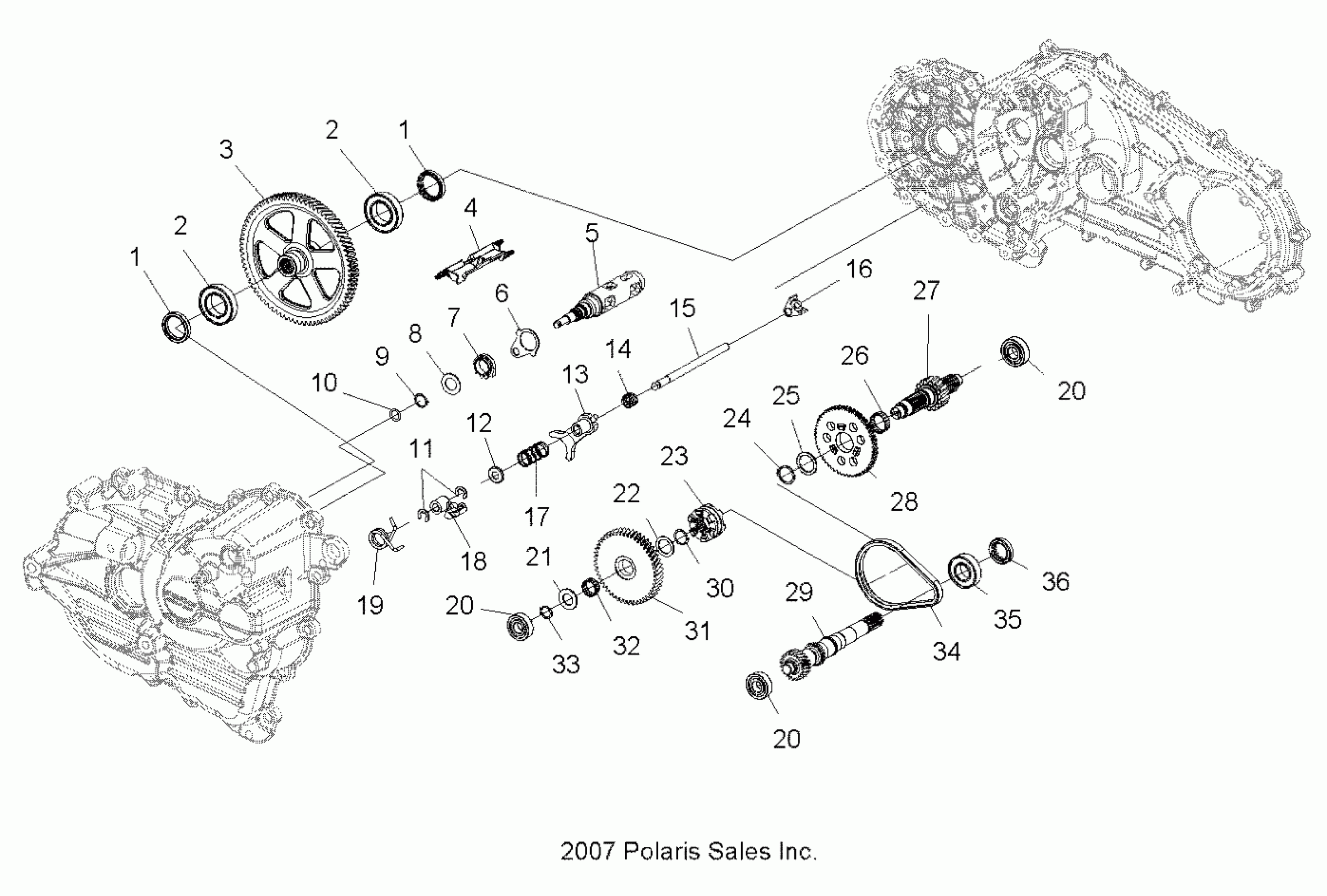

Polaris HAWKEYE 2X4 - A11LB27AA DRIVE TRAIN, MAIN GEARCASE INTERNALS - A11LB27AA (49ATVTRANSINTL08HAWKINTL) Diagram

#

Description
Price

-

Asm., Transmission, Shaft, 2x4 [Incl. All]

1332697

$1,434.99

1

Seal

3234307

$15.99

1

Seal

3234307

$15.99

2

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

2

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

3

Gear, 77T

3234306

$195.24

4

Trough, Oil

3234254

$10.71

5

Drum, Shift

3234341

Unavailable

6

Spacer

3234337

$4.00

7

Star, Detent

3234250

$10.71

8

Washer, Thrust

3234314

$10.63

9

Ring, Retaining

3234335

$10.63

10

O-RING

3234302

$7.19

11

RING, RETAINING

3233834

$10.39

12

WASHER-CUP

3234091

$9.59

13

Fork, Shift

3234328

$37.11

14

SPRING, COMPRESSION

3234089

$23.99

15

Rail, Shift Shaft

3234606

$20.63

16

COLLAR-SHIFT

3234073

$31.99

17

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

18

Pawl, Detent

3234251

Unavailable

19

Spring, Torsion

3234607

$4.15

20

BEARING, BALL

3234274

$27.99

20

BEARING, BALL

3234274

$27.99

20

BEARING, BALL

3234274

$27.99

21

Washer, Thrust

3234319

Unavailable

22

WASHER

3233855

$10.39

23

Engagement Dog

3234258

$91.99

24

RING, RETAINING

3233306

$4.79

25

WASHER, THRUST

3234248

$9.59

26

BEARING, NEEDLE

3233103

$31.99

27

Shaft, Reverse, 15T

3234323

Unavailable

28

Sprocket, 52T

3234332

$121.41

29

Shaft, Input, 17T

3234357

Unavailable

30

RING, RETAINING

3234336

$5.59

31

Gear, 50T

3234320

Unavailable

32

BEARING, NEEDLE

3233718

$35.99

33

RING, RETAINING

3234318

$3.19

34

Chain

3234321

$128.87

35

Bearing

3234419

$39.99

36

Seal, Triple Lip

3234322

$32.37
