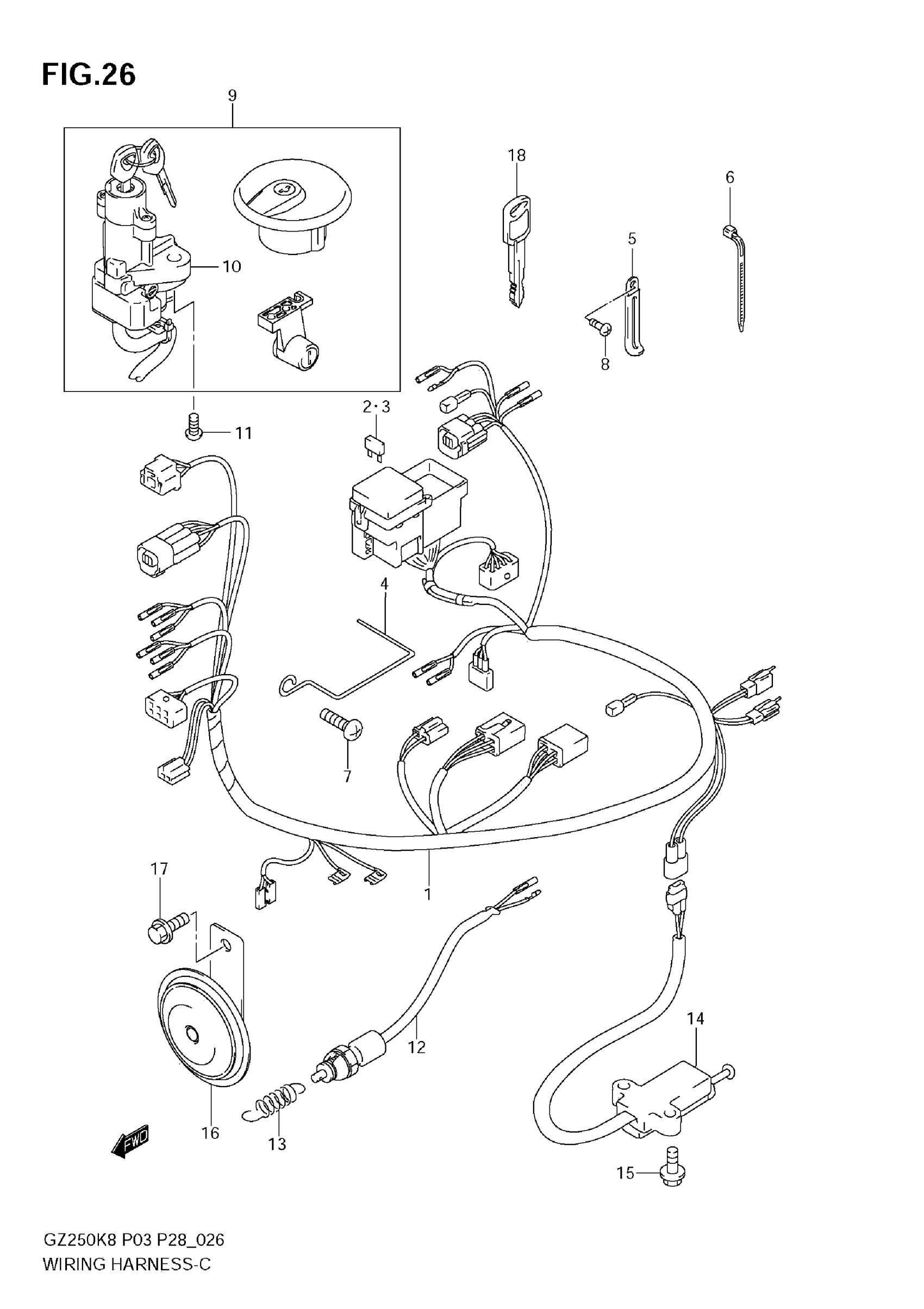

Suzuki GZ250K8 (2010) WIRING HARNESS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 36610-13FA0.

36610-13FA1

Unavailable

2

FUSE (10A)

09481-10501

$2.07

3

FUSE (15A)

09481-15501

$2.07

4

GUIDE, WIRING HARNESS

36619-23E00

Unavailable

5

CLAMP (L:45)

09404-06429

$1.82

5

CLAMP This part replaces 09404-06431.

09404-06039

$1.73

5

CLAMP (L:135)

09404-06435

$4.00

6

CLAMP (L:95)

09407-11401

$2.87

6

CLAMP (L:125)

09407-14403

$2.24

6

CLAMP (L:165)

09407-18402

$2.21

6

CLAMP (L:235)

09407-25401

$4.21

7

BOLT

01550-0616B

$2.53

8

SCREW, CLAMP

03541-0410B

Unavailable

9

LOCK SET | E3, E28 This part replaces 37107-33810.

37107-33811

$450.58

9

LOCK SET | E33

37107-33820

Unavailable

10

LOCK ASSY,STEER This part replaces 37100-33E20.

37100-33E21

$224.17

11

SCREW

09139-08016

$3.04

12

SWITCH ASSY, STOP LAMP

37740-04A10

$26.32

13

SPRING, STOP LAMP

09443-06046

$2.84

14

SWITCH ASSY,SID This part replaces 37840-44A20.

37840-44X52

$75.68

15

BOLT

01550-0616B

$2.53

16

HORN ASSY This part replaces 38500-12F10.

38500-10D10

Unavailable

17

BOLT

01550-0816B

$2.75

18

KEY, BLANK | OPT

37146-33E00

$19.42
