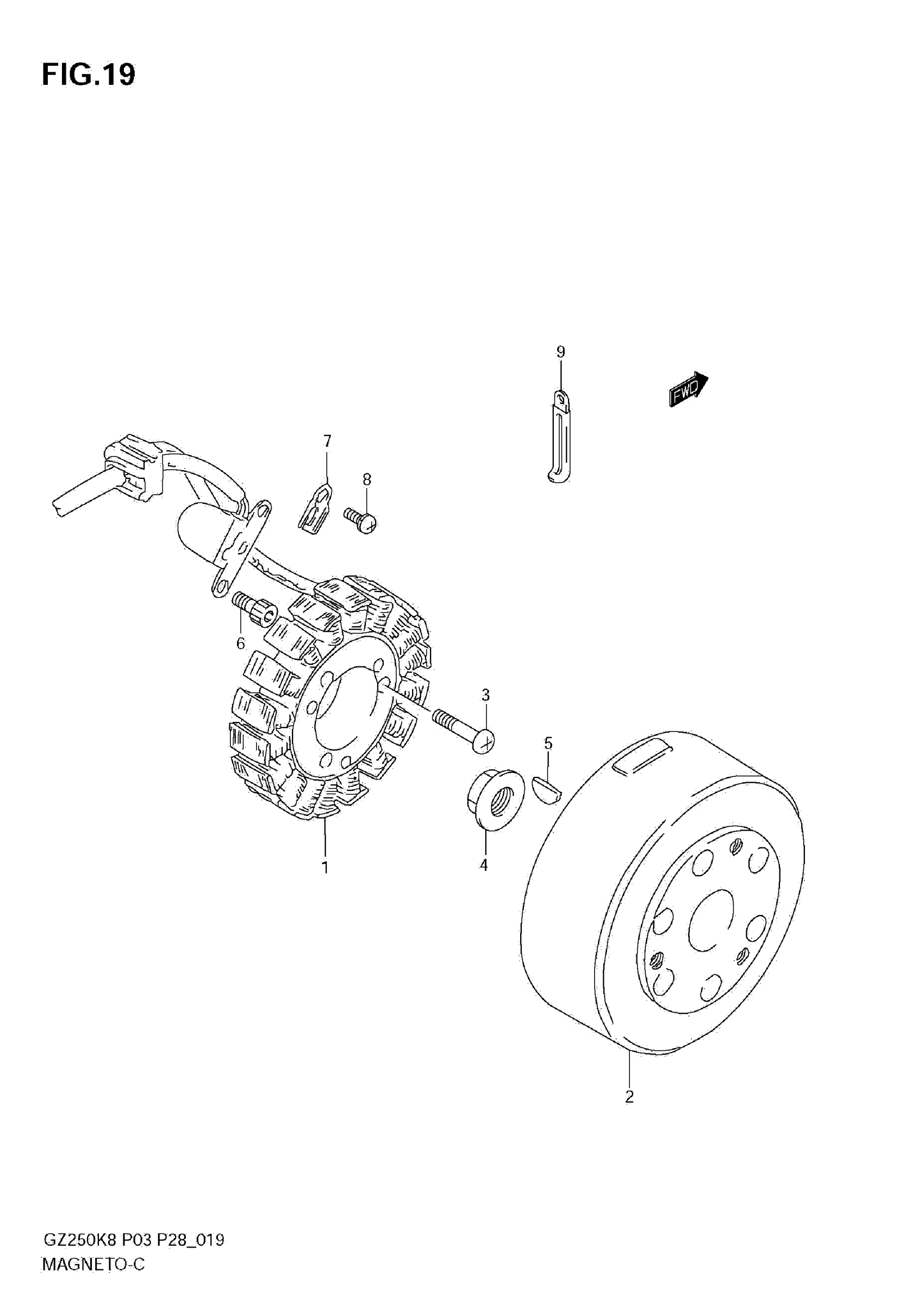

Suzuki GZ250K8 (2010) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY This part replaces 32101-13F00.

32101-13F01

$535.30

2

ROTOR ASSY

32102-13F01

Unavailable

3

SCREW

02112-0625B

Unavailable

4

NUT, GENERATOR

31792-49200

$9.54

5

KEY

08341-31039

$1.97

6

BOLT

07130-0512B

$2.61

7

CLAMP, GENERATOR LEAD WIRE

31497-45000

$2.17

8

SCREW

02142-3508B

$3.17

9

CLAMP (L:45)

09404-06429

$1.88
