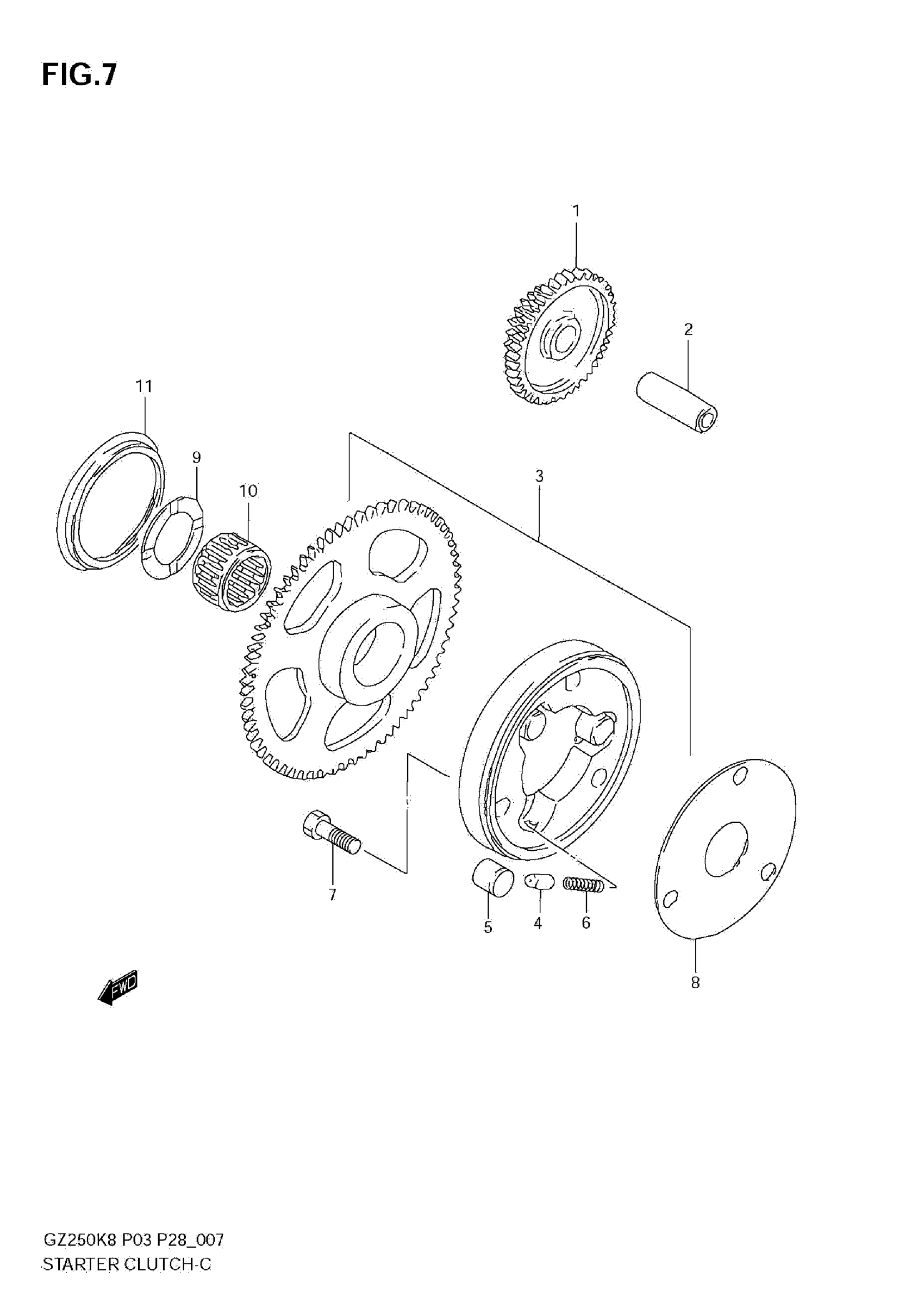

Suzuki GZ250K8 (2010) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLER (NT:19/51)

12611-38301

$93.87

2

PIN

09206-13007

$17.38

3

CLUTCH SET, STARTER This part replaces 12600-38814.

12600-38815

$290.08

4

PIECE, PUSH

12633-31000

$8.27

5

ROLLER

09261-14001

$5.00

6

SPRING

09440-04015

$2.24

7

BOLT

09100-08299

$4.53

8

SHIM, STARTER CLUTCH HUB

12649-49300

$20.33

9

WASHER (27X40X2.5)

09160-27005

$14.07

10

BEARING

09263-27004

$36.03

11

OIL SEAL

09289-52002

$34.08
