2010 Suzuki GZ250K8 Front Fork Damper Diagram

← All diagrams

Find the part on the Front Fork Damper diagram for your 2010 Suzuki GZ250K8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

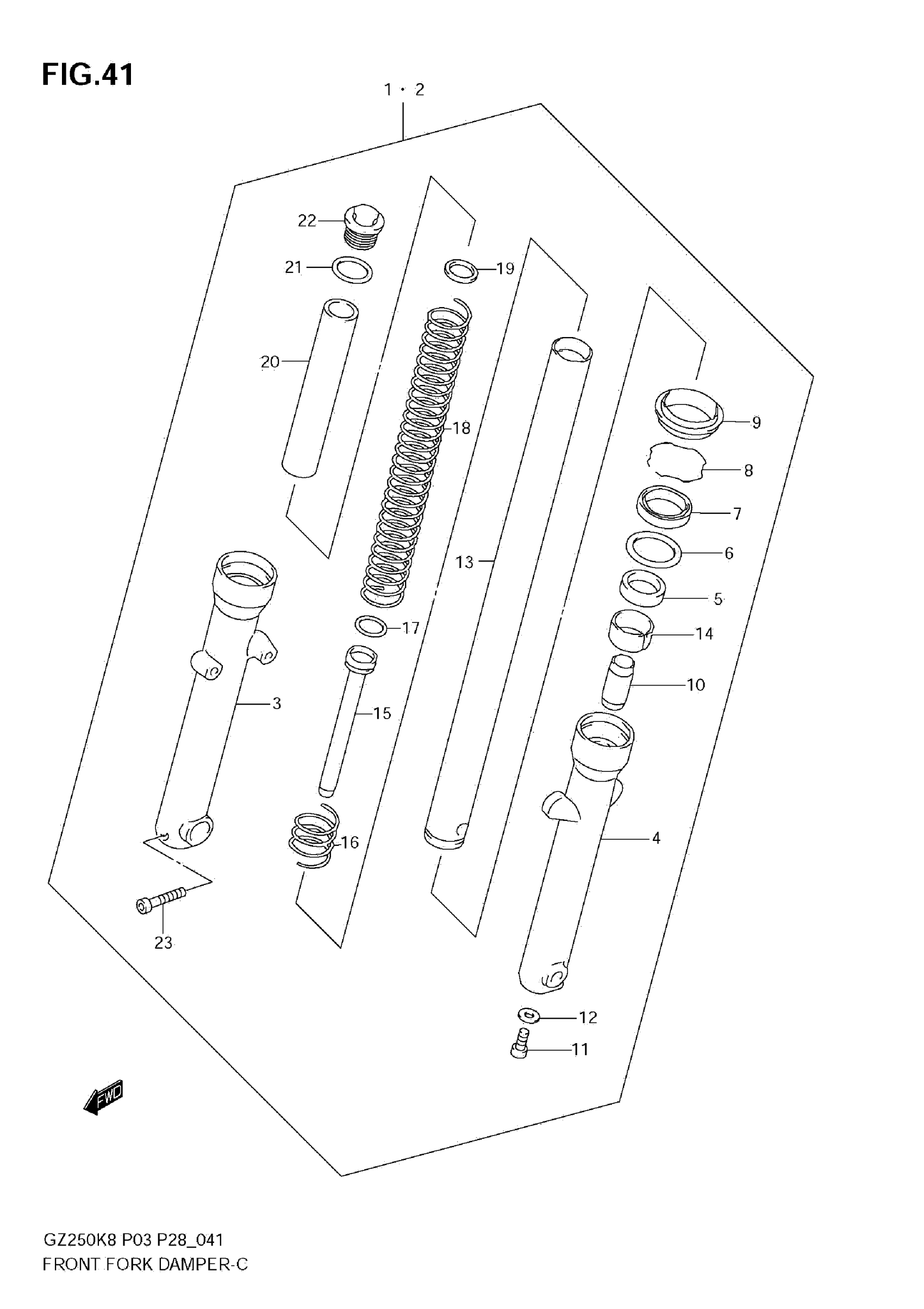

2010 Suzuki GZ250K8 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-12FA0

1
Out of stock

2

DAMPER ASSY This part replaces 51104-12FA0.

51104-12FD0

1
Out of stock

3

TUBE, OUTER RH

51130-12FA0

1
Out of stock

4

TUBE, OUTER LH

51140-12FA0

1
Out of stock

5

BUSH, GUIDE

51152C12F00J000

—
Out of stock

6

SPACER, SEAL This part replaces 51168-12FA0.

51168-38A00

2
Out of stock

7

SEAL, OIL This part replaces 51153C25D00J000.

51153-03B30

2
Out of stock

8

RING, STOPPER This part replaces 51556-12FA0.

51156-03B30

2
Out of stock

9

SEAL, DUST This part replaces 51173C25D00J000.

51173-25D00

2
Out of stock

10

PIECE, OIL LOCK This part replaces 51195C25D00J000.

51195-25D00

2
Out of stock

11

BOLT

51147C42AA0J000

—
Out of stock

12

GASKET

51148C31030J000

—
Out of stock

13

TUBE, INNER This part replaces 51110-12FA0.

51110-12FD0

2
Out of stock

14

BUSH, SLIDE

51121-12FA0

2
Out of stock

15

PIPE, SEAT

51146-12FA0

2
Out of stock

16

SPRING, REBOUND

51177-12FA0

2
Out of stock

17

RING, PISTON

51196-12FA0

2
Out of stock

18

BOLT This part replaces 51171-12FA0.

07130-08357

2
Out of stock

19

JOINT, SPRING

51192-12FA0

2
Out of stock

20

SPACER, SPRING This part replaces 51176C25D00J000.

51176-25D00

2
Out of stock

21

O RING This part replaces 51117C25D00J000.

51117-25D00

2
Out of stock

22

BOLT, FORK

51189-12FA0

2
Out of stock

23

BOLT This part replaces 51166-12FA0.

07130-08357

1
Out of stock
