2010 Suzuki GZ250K8 Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 2010 Suzuki GZ250K8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

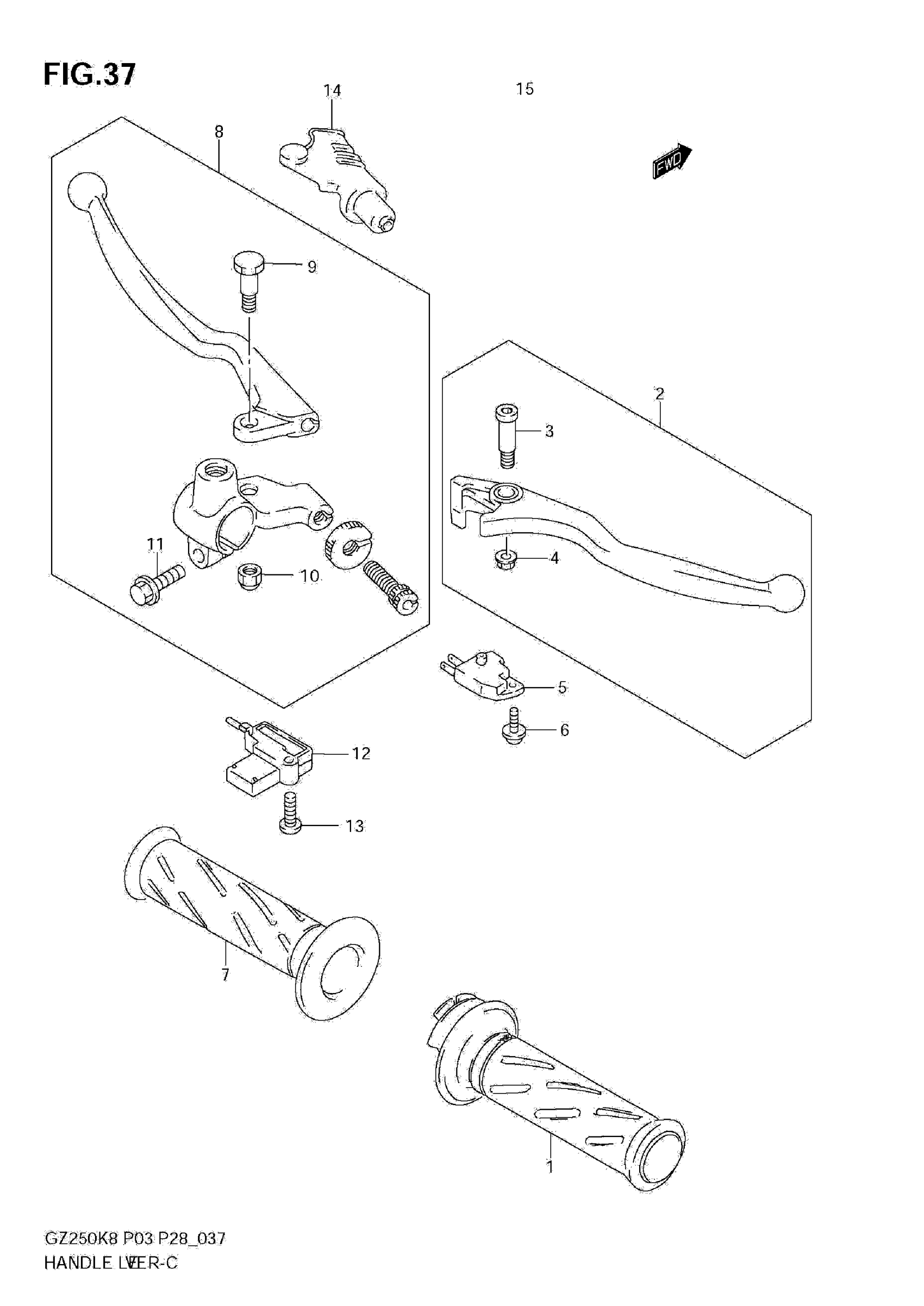

2010 Suzuki GZ250K8 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE This part replaces 57110-0AE00.

57110-22D03

1
Out of stock

2

LEVER, BRAKE This part replaces 57300-0AE00.

57420-26F00

1
Out of stock

3

BOLT, LEVER

57431-0AE00

1
Out of stock

4

NUT

D8316-1006B

—
Out of stock

5

SWITCH ASSY,FR BRAKE This part replaces 57460-17C01.

57460-14J02

1
Out of stock

6

SCREW

57465-17C00

1
Out of stock

7

GRIP, LH (BLACK) This part replaces 57211-07E00.

57211-22D02-291

1
Out of stock

8

LEVER ASSY, CLUTCH

57500-0AE00

1
Out of stock

9

BOLT, LEVER SET

57431-0AE00

1
Out of stock

10

NUT

D8319-6006B

—
Out of stock

11

BOLT This part replaces D1557-0620B.

01550-0620B

1
Out of stock

12

.SWITCH,CLUTCH

57560-05A00

1
Out of stock

13

SCREW

02122-0320B

1
Out of stock

14

COVER,CLUTCH LEVER This part replaces 57661-33E00.

57661-33E01

1
Out of stock
