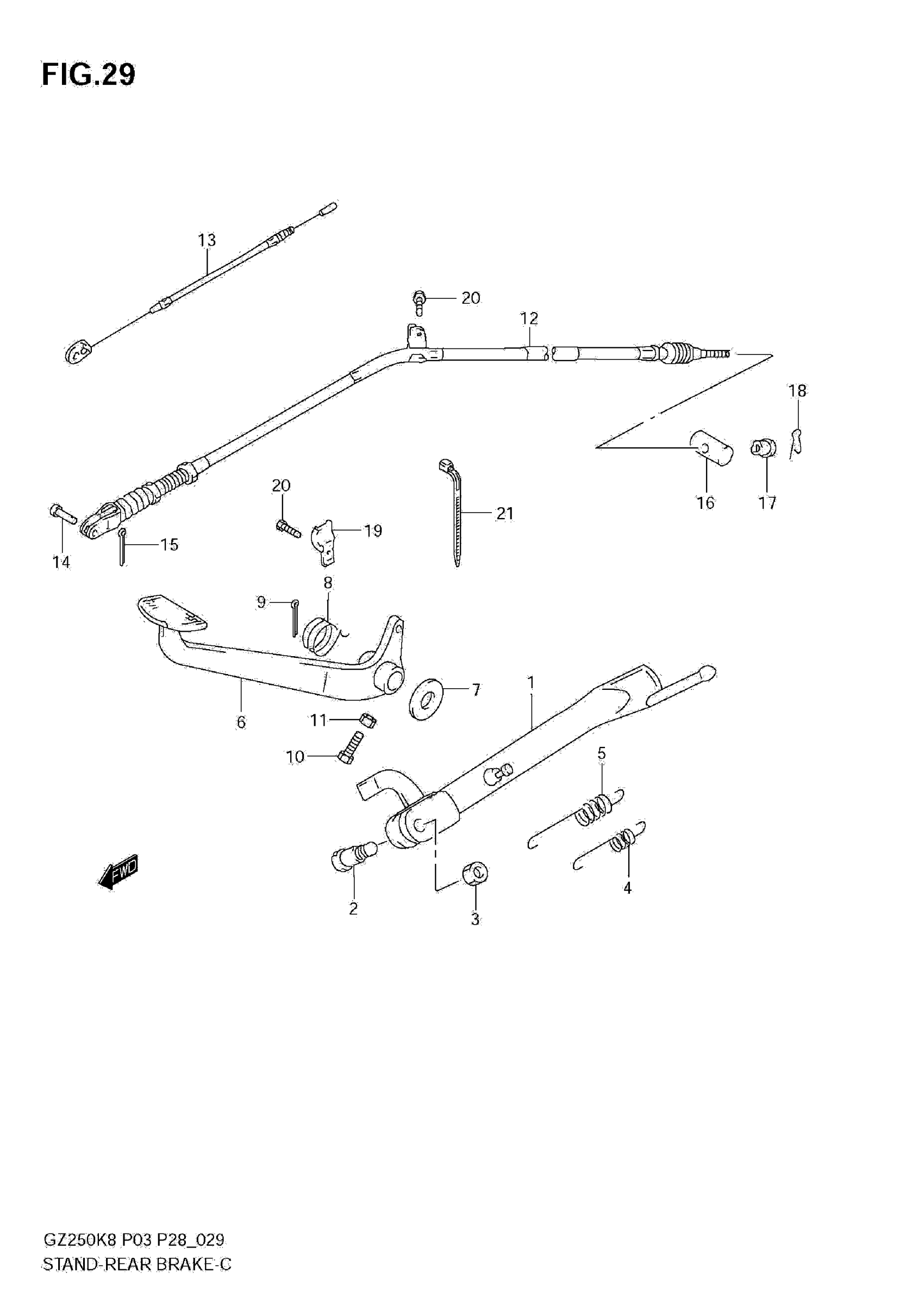

Suzuki GZ250K8 (2010) STAND - REAR BRAKE Diagram

#

Description
Price

1

STAND, PROP

42310-13F10

Unavailable

2

BOLT

09111-10027

$3.19

3

NUT

09159-10097

$5.28

4

SPRING

09443-14066

$5.14

5

SPRING

09443-19012

$5.47

6

PEDAL, BRAKE

43110-13FA0

$88.70

7

WASHER (16.5X22X1.0)

09160-16043

$2.30

8

SPRING

09448-31034

$6.61

9

COTTER PIN

04111-3025A

$1.43

10

BOLT

01500-06207

$2.06

11

.NUT

08310-00067

$1.91

12

CABLE, REAR BRAKE

58510-13F00

$100.46

13

CABLE, STOP LAMP SWITCH

58830-13F00

$36.92

14

PIN, REAR BRAKE CABLE

09200-05001

$1.52

15

COTTER PIN

04111-2015A

$1.25

16

.PIN (13X18) This part replaces 09209-13001.

09209-13018

$3.24

17

NUT

09150-06010

$2.88

18

SNAP PIN

09385-06012

$1.97

19

GUIDE, REAR BRAKE CABLE

58621-12F00

Unavailable

20

BOLT This part replaces D1557-0612B.

D1557-0616B

$0.30

21

CLAMP (L:145)

09407-14407

$2.84
