2009 Suzuki GZ250 Wiring Harness Diagram

← All diagrams

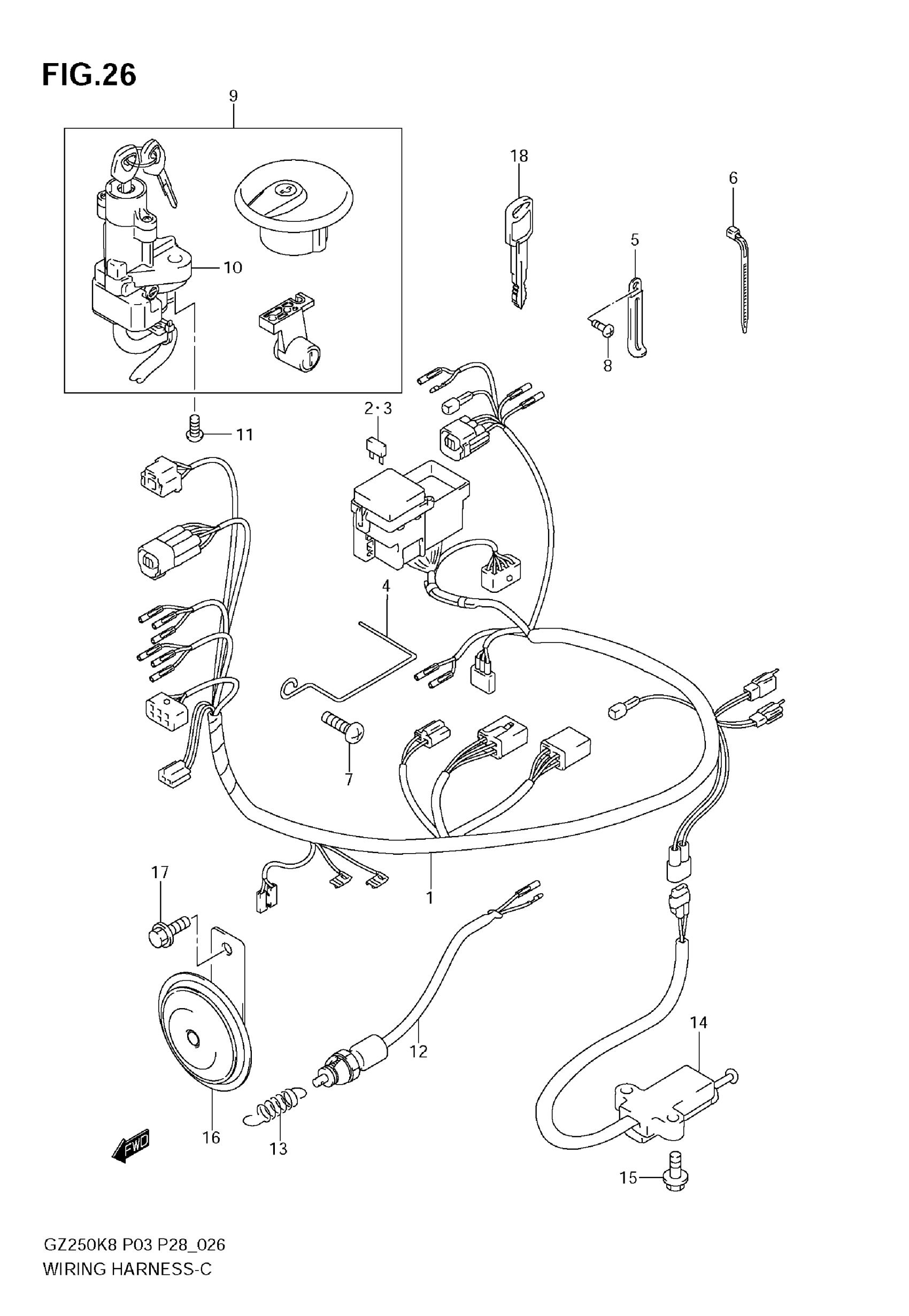

Find the part on the Wiring Harness diagram for your 2009 Suzuki GZ250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GZ250 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 36610-13FA0.

36610-13FA1

1
Out of stock

2

FUSE (10A)

09481-10501

1
Out of stock

3

FUSE (15A)

09481-15501

1
Out of stock

4

GUIDE, WIRING HARNESS

36619-23E00

1
Out of stock

5

CLAMP (L:45)

09404-06429

1
Out of stock

5

CLAMP This part replaces 09404-06431.

09404-06039

1
Out of stock

5

CLAMP (L:135)

09404-06435

2
Out of stock

6

CLAMP (L:95)

09407-11401

1
Out of stock

6

CLAMP (L:125)

09407-14403

4
Out of stock

6

CLAMP (L:165)

09407-18402

2
Out of stock

6

CLAMP (L:235)

09407-25401

1
Out of stock

7

BOLT

01550-0616B

1
Out of stock

8

SCREW, CLAMP

03541-0410B

2
Out of stock

9

LOCK SET | E3, E28 This part replaces 37107-33810.

37107-33811

1
Out of stock

9

LOCK SET | E33; Includes Item(s) 10

37107-33820

1
Out of stock

10

LOCK ASSY,STEER This part replaces 37100-33E20.

37100-33E21

1
Out of stock

11

SCREW

09139-08016

2
Out of stock

12

SWITCH ASSY, STOP LAMP

37740-04A10

1
Out of stock

13

SPRING, STOP LAMP

09443-06046

1
Out of stock

14

SWITCH ASSY,SID This part replaces 37840-44A20.

37840-44X52

1
Out of stock

15

BOLT

01550-0616B

2
Out of stock

16

HORN ASSY This part replaces 38500-12F10.

38500-10D10

1
Out of stock

17

BOLT

01550-0816B

1
Out of stock

18

KEY, BLANK | OPT

37146-33E00

1
Out of stock
