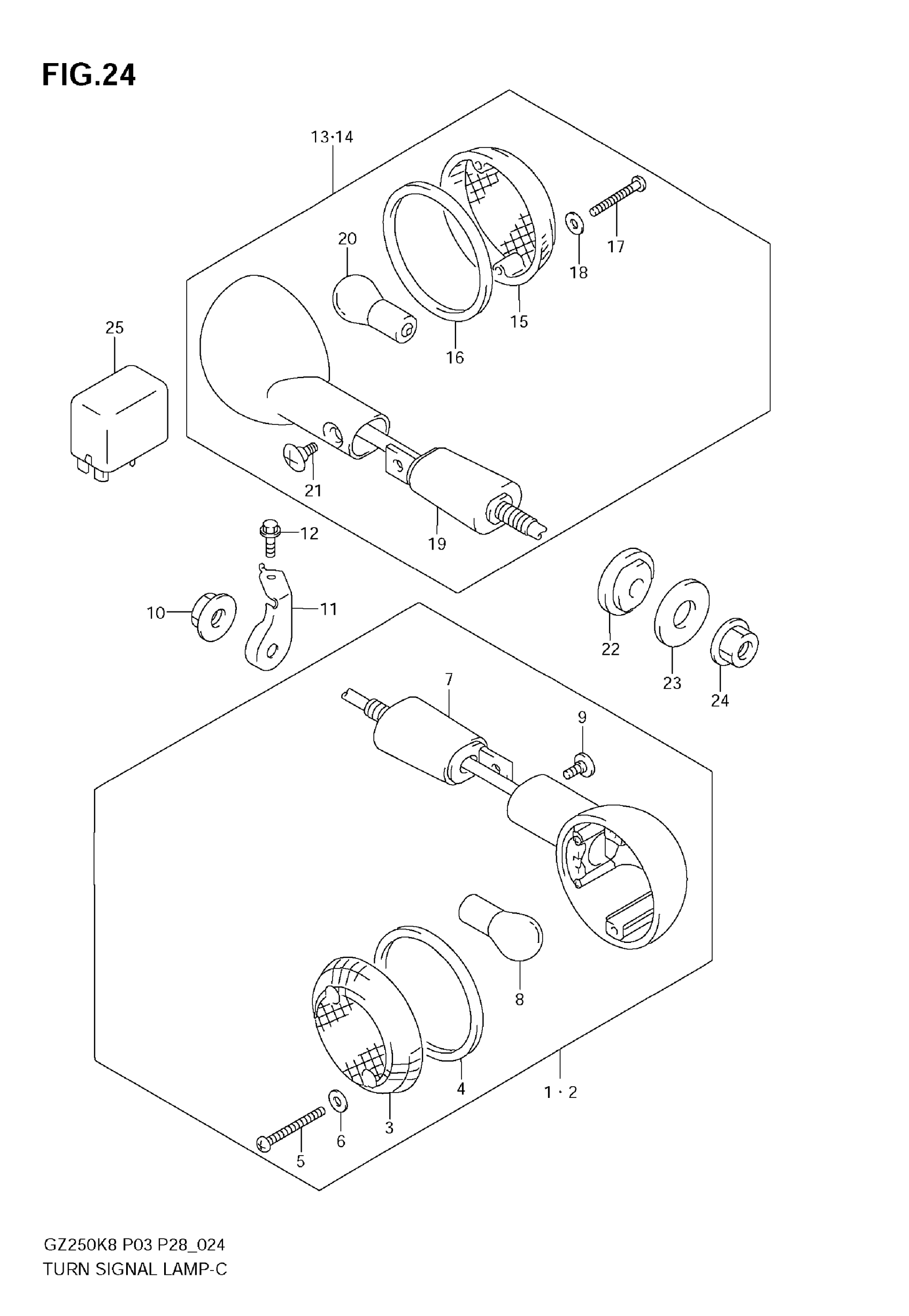

Suzuki GZ250 (2009) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT RH

35601-33DA0

$162.50

2

LAMP ASSY, FRONT LH | Includes Item(s) 3 - 9

35602-33DA0

$162.50

3

LENS

35612-38A30

$20.22

4

GASKET

35613-38A00

$10.99

5

SCREW

03211-0425B

$2.95

6

GASKET

35627-43010

$2.29

7

STAY, TURN SIGNAL

35619-45C10

$54.29

8

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

9

SCREW

35623-38A01

$4.75

10

NUT

08316-1010B

$2.65

11

BRACKET, FR RH

35670-12F00

Unavailable

11

BRACKET, FR LH

35680-12F00

$14.73

12

BOLT This part replaces D1557-0612B.

D1557-0616B

$0.29

13

LAMP ASSY, REAR TURN, R

35603-33DA0

$158.58

14

LAMP ASSY, REAR TURN, L | Includes Item(s) 15 - 21

35604-33DA0

$158.58

15

LENS

35612-38A01

$13.02

16

GASKET

35613-38A00

$10.99

17

SCREW

03211-0425B

$2.95

18

GASKET

35627-43010

$2.29

19

STAY, TURN SIGNAL

35659-45C10

$33.36

20

BULB (12V, 21W)

09471-12045

$2.95

21

SCREW

35623-38A01

$4.75

22

SPACER

35695-17C00

$3.69

23

WASHER (10.5X30X2.3)

09160-10501

$2.33

24

NUT

08316-1010B

$2.65

25

RELAY ASSY,TURN This part replaces 38610-12FA0.

38610-12FA1

$116.95
