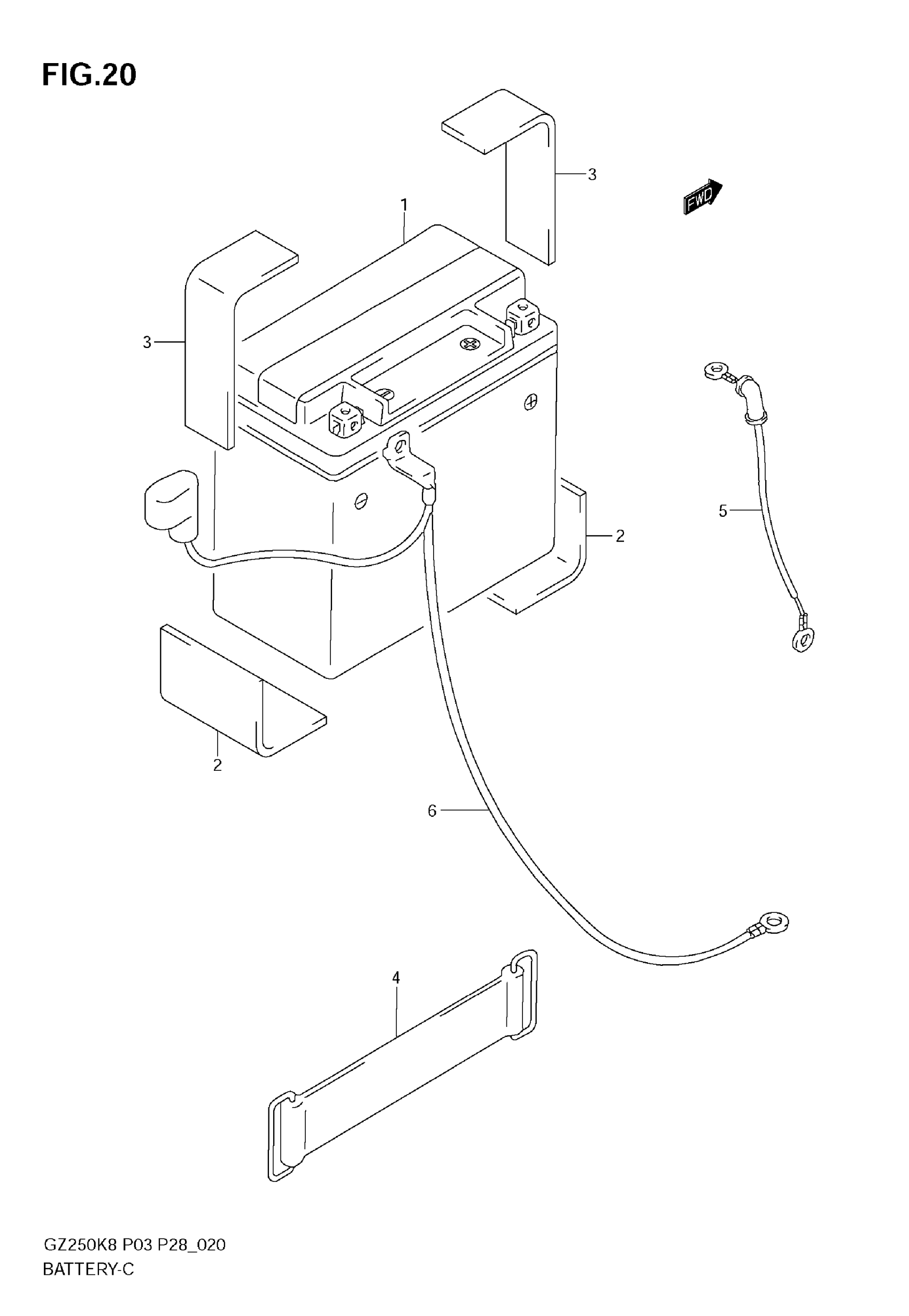

Suzuki GZ250 (2009) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (YTX7L-BS,12V,6AH) This part replaces 33610C12F10J000.

33610-15D20

$97.05

2

PROTECTOR (170X95X3.0) | CUT AS REQUIRED

33651-37000

$4.09

3

CUSHION, REAR FENDER REAR This part replaces 33652C29100J000.

33651-37000

$4.09

4

BAND

09462-00043

$3.71

5

WIRE, BATTERY (+) This part replaces 33820C12F00J000.

33820-12F00

Unavailable

6

WIRE, BATTERY (-)

33860-12F00

Unavailable
