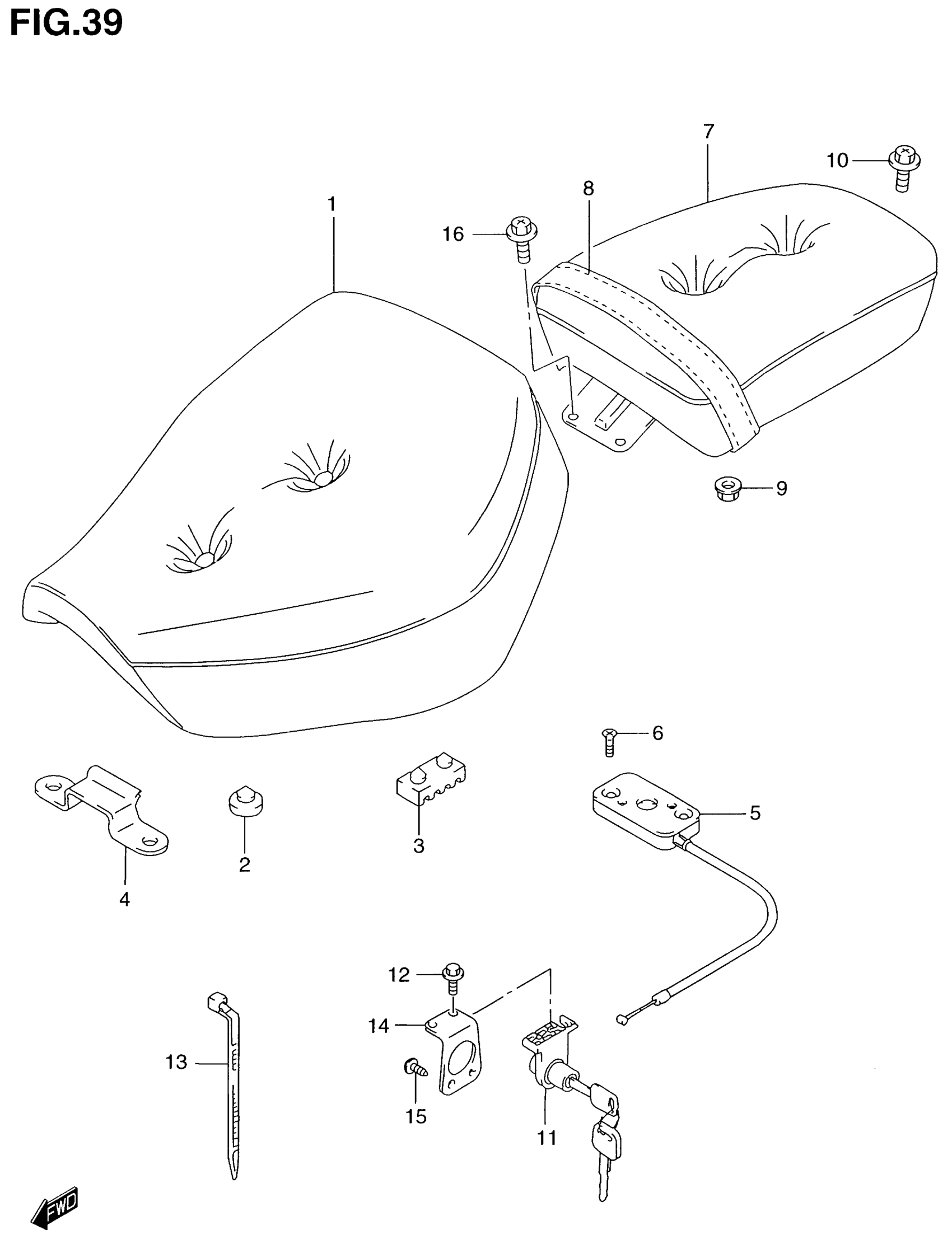

Suzuki GZ250 (2001) SEAT (MODEL X/Y) Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2 - 3 This part replaces 45100-12F00-K9C.

45100-0AE00-K9C

Unavailable

2

CUSHION,SEAT This part replaces 45148-36C00.

45148-36C01

$4.78

3

CUSHION

45149-31300

$3.26

4

PLATE, FRONT SEAT HOOK

45119-12F00

$9.50

5

BRACKET, FRONT SEAT

45220-12F00

Unavailable

6

SCREW This part replaces 02122-06253.

02122-0625A

$1.49

7

SEAT ASSY PILLI | Includes Item(s) 8 - 9 This part replaces 45300-12F00-K9C.

45300-0AE00-K9C

$354.05

8

BAND, SEAT

45180-12F00-T65

Unavailable

9

NUT This part replaces 08316-10063.

08316-1006B

$2.50

10

BOLT, REAR (8X16)

09106-08140

$5.75

11

LOCK SET, SEAT This part replaces 95700-31840.

95700-31841

$88.40

12

BOLT This part replaces 01547-05103.

01547-0510B

$3.22

13

CLAMP

09407-22403

Unavailable

14

BRACKET, SEAT LOCK

45289-03F00

Unavailable

15

SCREW This part replaces 03141-14123.

03141-1412B

$3.08

16

BOLT, FRONT (6X12)

09106-06061

$6.35
