2001 Suzuki GZ250 Seat Diagram

← All diagrams

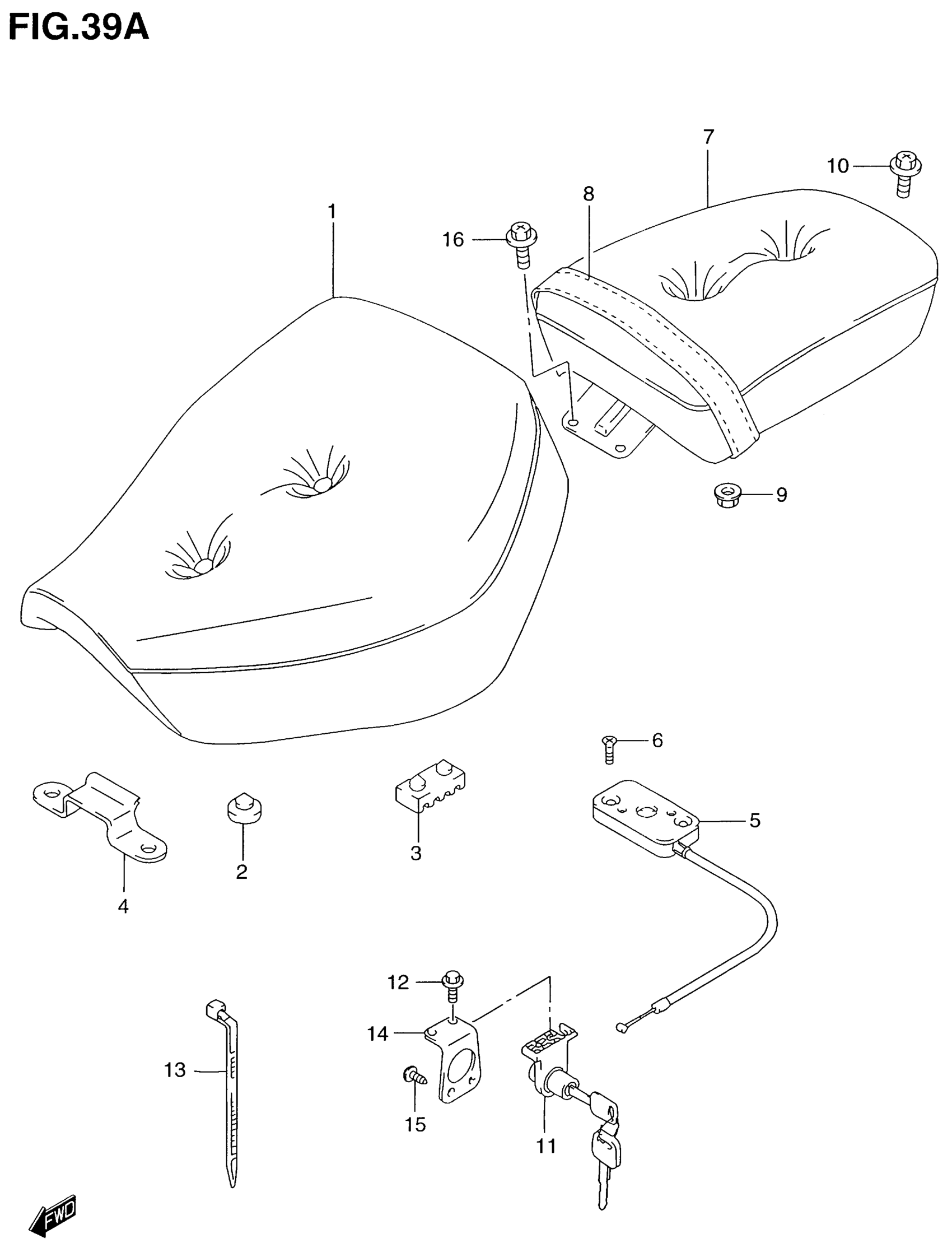

Find the part on the Seat diagram for your 2001 Suzuki GZ250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Suzuki GZ250 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY | Includes Item(s) 2 - 3 This part replaces 45100-12F10-K9C.

45100-0AE00-K9C

1
Out of stock

2

CUSHION,SEAT This part replaces 45148-36C00.

45148-36C01

2
Out of stock

3

CUSHION

45149-31300

2
Out of stock

4

PLATE, FRONT SEAT HOOK

45119-12F00

1
Out of stock

5

BRACKET, FRONT SEAT

45220-12F00

1
Out of stock

6

SCREW This part replaces 02122-06253.

02122-0625A

2
Out of stock

7

SEAT ASSY PILLI | Includes Item(s) 8 - 9 This part replaces 45300-12F10-K9C.

45300-0AE00-K9C

1
Out of stock

8

BAND, SEAT

45180-12F00-T65

1
Out of stock

9

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

10

BOLT, REAR (8X16)

09106-08140

1
Out of stock

11

LOCK SET, SEAT This part replaces 95700-31840.

95700-31841

1
Out of stock

12

BOLT This part replaces 01547-05103.

01547-0510B

2
Out of stock

13

CLAMP

09407-22403

1
Out of stock

14

BRACKET, SEAT LOCK

45289-03F00

1
Out of stock

15

SCREW This part replaces 03141-14123.

03141-1412B

2
Out of stock

16

BOLT, FRONT (6X12)

09106-06061

2
Out of stock
