2017 Suzuki GW250L7 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2017 Suzuki GW250L7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

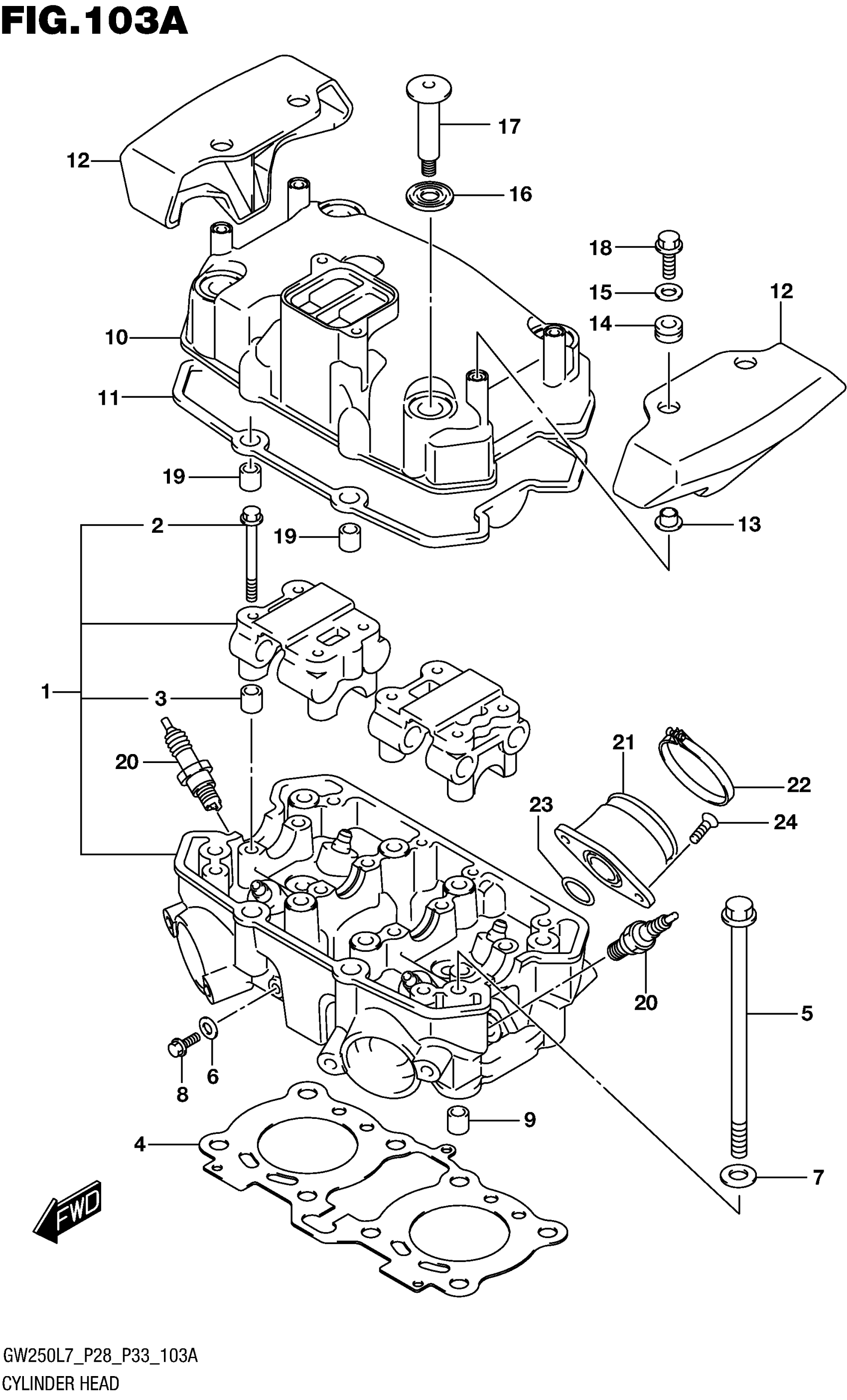

2017 Suzuki GW250L7 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER

11100-48H00

1
Out of stock

2

.BOLT (6X60)

09103-06220

8
Out of stock

3

.PIN (8X11)

09206-08011

4
Out of stock

4

GASKET, CYLINDER HEAD

11141-48H00

1

$40.68

In stock

5

BOLT (8X165)

09103-08449

8

$8.35

In stock

6

GASKET (5.8X13X1.8)

09168-06L04

2

$0.90

In stock

7

GASKET (8.5X17X2.3)

09168-08036

8
Out of stock

8

BOLT

01550-0612A

2
Out of stock

9

PIN

04211-11129

2
Out of stock

10

COVER, CYLINDER HEAD

11171-48H00

1
Out of stock

11

1

$17.42

In stock

12

2

$28.65

In stock

13

4

$3.05

In stock

14

CUSHION, HEAD COVER CAP

11181-48H00

4
Out of stock

15

WASHER (6.5X20X1.2)

09160-06077

4
Out of stock

16

4

$2.77

In stock

17

BOLT (7X57)

09106-07022

4

$9.90

In stock

18

BOLT

01547-0620A

4
Out of stock

19

PIN

04211-11129

2
Out of stock

20-1

2

$6.17

In stock

20-2

2

$5.91

In stock

21

2

$12.90

In stock

22

CLAMP,INTAKE PIPE

13170-48H00

2

$5.98

In stock

23

O-RING (D:2.3,ID:29.7)

09280-30L01

2
Out of stock

24

SCREW

02122-0616A

4

$1.52

In stock
