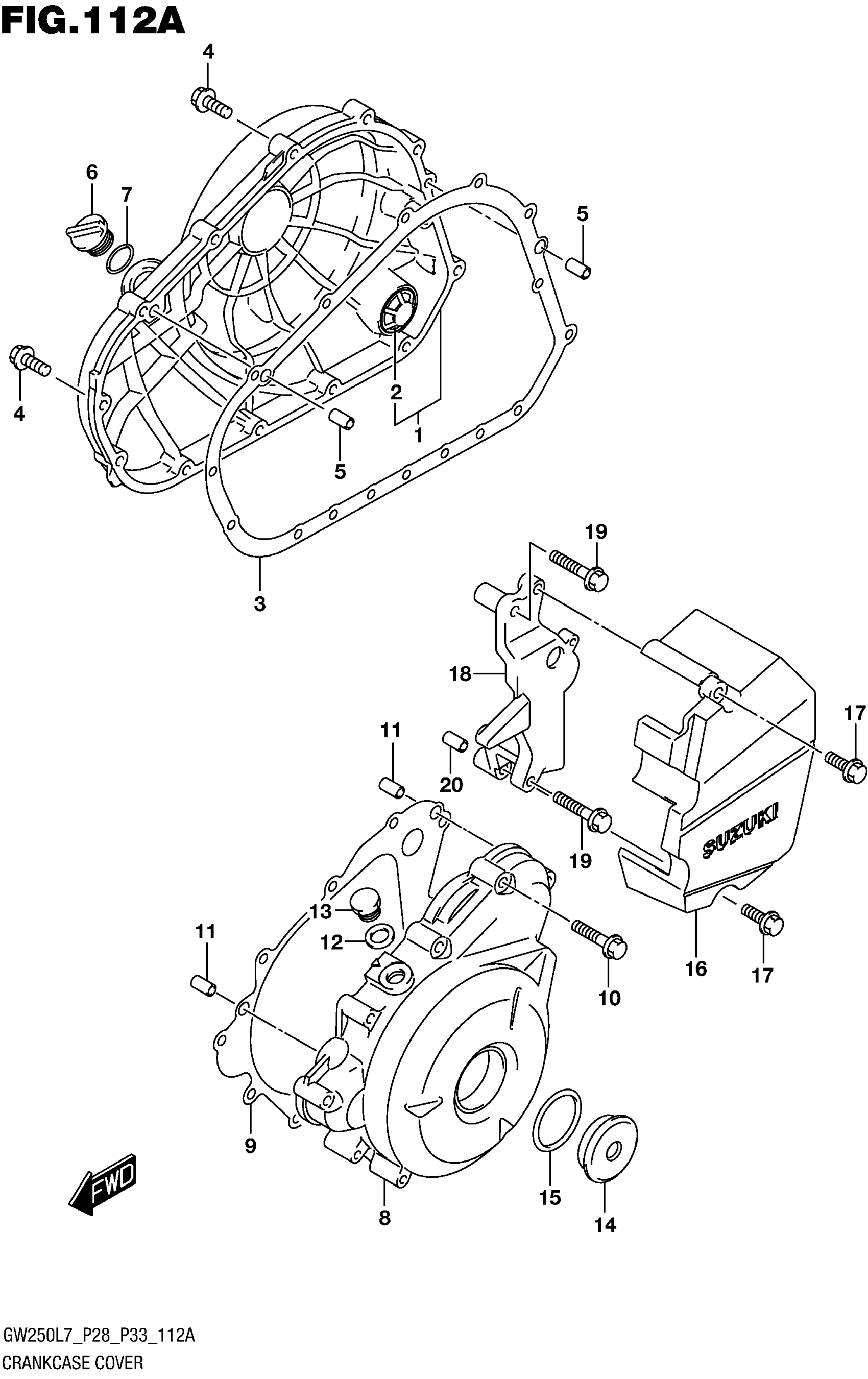

Suzuki GW250L7 (2017) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-48H00

$235.20

2

.LENS, OIL LEVEL CHECK

11971-48H00

$6.19

3

GASKET, CLUTCH COVER

11482-48H00

$42.03

4

BOLT

01547-0630A

$2.38

5

PIN

04211-09149

$1.70

6

PLUG,OIL FILLER

11972-48H00

$5.02

7

O RING (D:3.1,ID:16.8)

09280-17003

$1.70

8

COVER, MAGNETO

11351-48H00

$186.65

9

GASKET, MAGNETO COVER

11483-48H00

$27.07

10

BOLT

01547-0635A

$2.38

11

PIN

04211-09149

$1.70

12

GASKET,TDC PLUG

11352-48H00

$2.95

13

PLUG (12X9)

09247-12104

$2.80

14

PLUG (SILVER)

09259-36016-20H

$12.83

15

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.31

16

COVER, ENGINE SPROCKET

11360-48H00

Unavailable

17

BOLT

01547-0625A

$2.09

18

BRACKET, SPEED SENSOR

11371-48H00

$43.28

19

BOLT

01547-0640A

$2.38

20

PIN

04211-09149

$1.70
