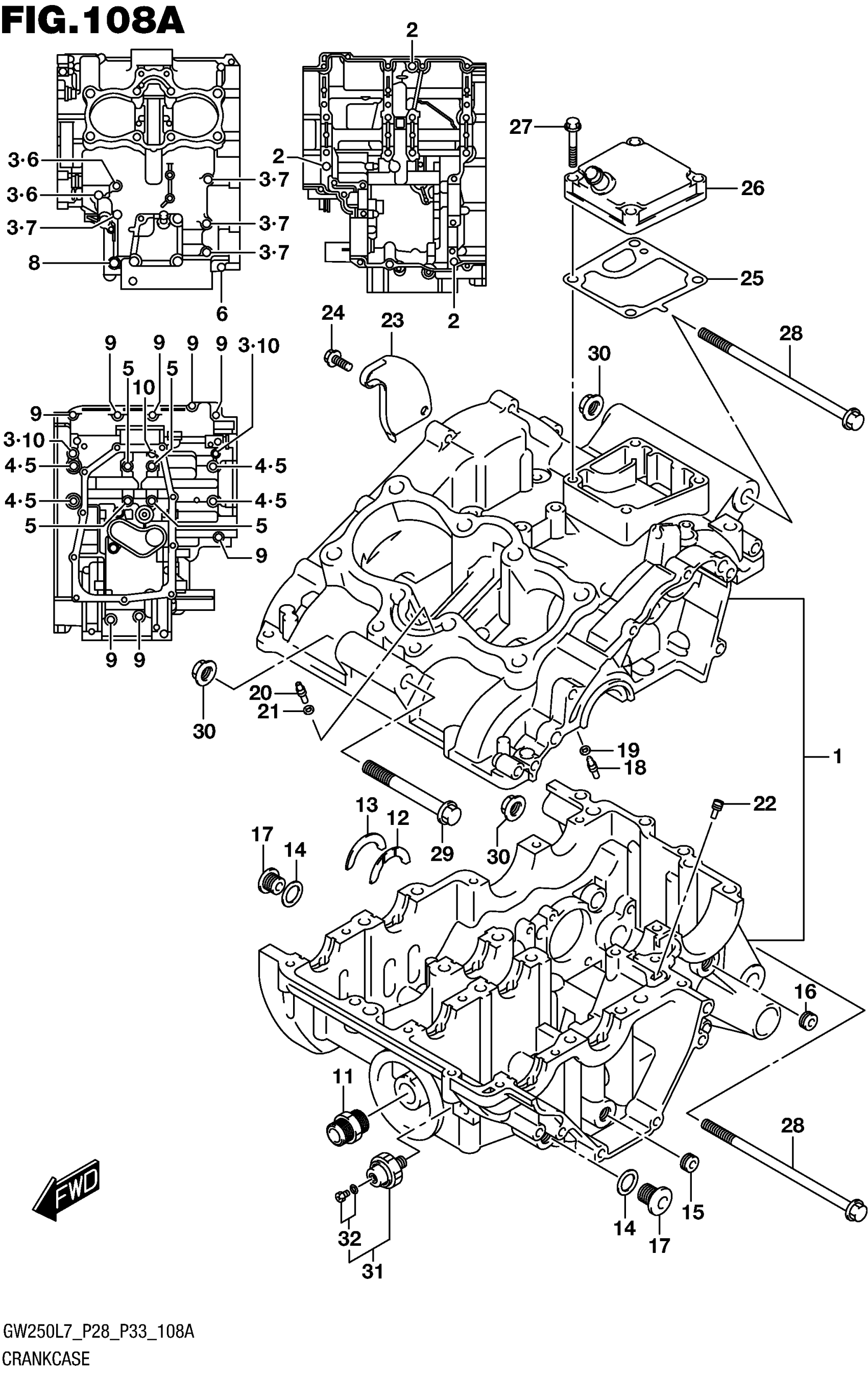

Suzuki GW250L7 (2017) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11300-48890

Unavailable

2

.PIN

04211-11169

$1.77

3

.GASKET (5.8X13X1.8)

09168-06L04

Unavailable

4

.GASKET (8.2X14X1)

09168-08035

Unavailable

5

.BOLT (8X105)

09103-08133

Unavailable

6

.BOLT

01547-0635A

$2.31

7

.BOLT

01547-0655A

$2.43

8

.BOLT

01550-0855A

$2.80

9

.BOLT

01547-0635A

$2.31

10

.BOLT

01547-0690A

$2.95

11

.UNION, OIL FILTER STAND

16591-48H00

$4.57

12

.BEARING, CRANK THRUST

12228-17E00-0E0

$12.85

12

(YELLOW)

12228-17E00-0E0

$12.85

13-1

.BEARING, CRANK THRUST (WHITE

12228-17E00-0F0

$13.10

13-2

.BEARING, CRANK THRUST

12228-17E00-0G0

Unavailable

13-2

(ORANGE)

12228-17E00-0G0

Unavailable

13-3

.BEARING, CRANK THRUST (PINK)

12228-17E00-0H0

Unavailable

13-4

.BEARING, CRANK THRUST (BROWN

12228-17E00-0J0

Unavailable

13-5

.BEARING, CRANK THRUST

12228-17E00-0K0

Unavailable

13-5

(PURPLE)

12228-17E00-0K0

Unavailable

13-6

.BEARING, CRANK THRUST

12228-17E00-0L0

Unavailable

13-6

(NO COLOR)

12228-17E00-0L0

Unavailable

14

GASKET (14X18.3X4.8)

09168-14L01

$0.80

15

PLUG, OIL GALLERY

11322-48H00

$4.80

16

PLUG, SHIFT FORK SHAFT

11322-48H00

$4.80

17

PLUG (14X12)

09248-14013

Unavailable

18

JET,PISTON COOLING

11391-48H00

Unavailable

19

O RING (D:1.2,ID:4)

09280-04004

$1.76

20

JET,OIL GALLERY CYLINDER

11329-48H00

Unavailable

21

O RING (D:1.2,ID:4)

09280-04004

$1.76

22

JET,T/M COOLING

11313-48H00

Unavailable

23

PLATE,OIL SEPARATOR

11317-48H00

Unavailable

24

BOLT

01547-0612A

$2.01

25

GASKET, BREATHER COVER

11318-48H00

Unavailable

26

COVER,BREATHER

11330-48H01

Unavailable

27

BOLT

01547-0630A

$2.31

28

BOLT (10X155)

09103-10115

$16.65

29

BOLT (10X85)

09103-10445

$6.07

30

NUT

09159-10L06

$1.63

31

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

$27.58

32

.BOLT, OIL PRESSURE SWITCH

37822-33D00

$4.92
