2015 Suzuki GW250L5 Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 2015 Suzuki GW250L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

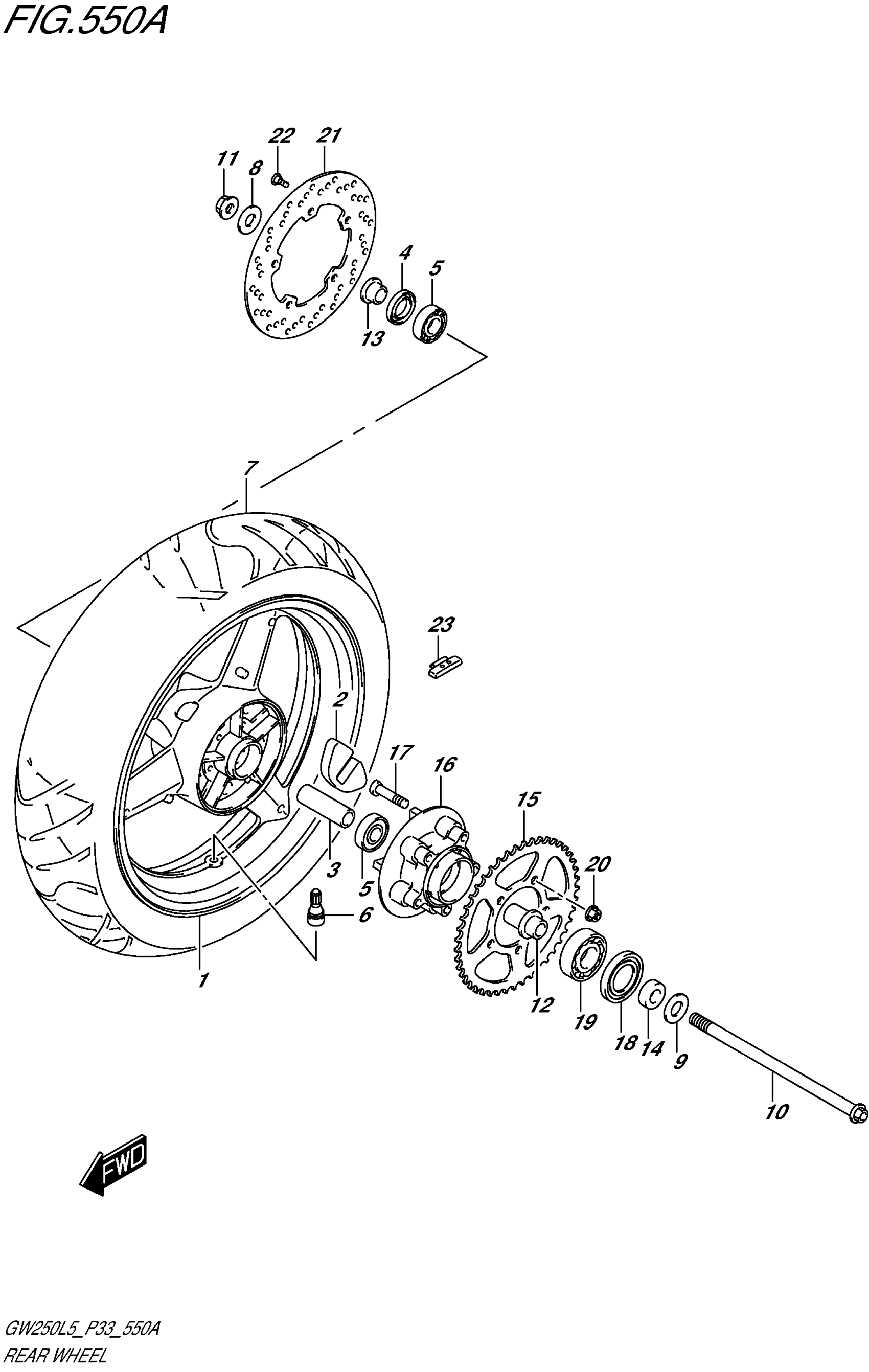

2015 Suzuki GW250L5 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$438.30

In stock

2

5

$10.90

In stock

3

SPACER (17.5X25X78)

09180-17116

1
Out of stock

4

SEAL,OIL (25X47X8)

09283-25L02

1

$10.82

In stock

5

BEARING This part replaces 08123-63037.

08123-6303B

2
Out of stock

6

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

8

WASHER,RR AXLE RH

61445-48H00

1

$5.37

In stock

9

WASHER,RR AXLE LH

61455-48H00

1

$5.37

In stock

10

AXLE,RR

64711-48H10

1

$30.67

In stock

11

NUT,RR AXLE

64721-48H00

1

$5.37

In stock

12

RETAINER, REAR SPROCKET DRUM

64733-10D00

1
Out of stock

13

SPACER,RR AXLE,R

64741-48H00

1

$9.23

In stock

14

SPACER,RR AXLE,L

64751-48H00

1

$7.68

In stock

15

SPROCKET,RR (NT:46)

64511-48H10

1

$79.12

In stock

16

DRUM,RR SPROCKET

64611-17C10

1

$84.05

In stock

17

BOLT (10X43.5)

09119-10088

5

$2.23

In stock

18

OIL SEAL

09285-35L01

1

$6.35

In stock

19

BEARING (25X62X17)

09262-25073

1

$25.11

In stock

20

NUT

08319-3110A

5
Out of stock

21

DISC, REAR BRAKE

69211-48H00

1

$180.83

In stock

22

BOLT, REAR BRAKE DISC

69222-48H00

5

$3.59

In stock

23

BALANCER, WHEEL (10G)

55411-22H00

1
Out of stock

23

BALANCER, WHEEL (10G)

55412-22H00

1
Out of stock

23

BALANCER, WHEEL (30G)

55413-22H00

1
Out of stock
