2015 Suzuki GW250L5 Front Fork Damper Diagram

← All diagrams

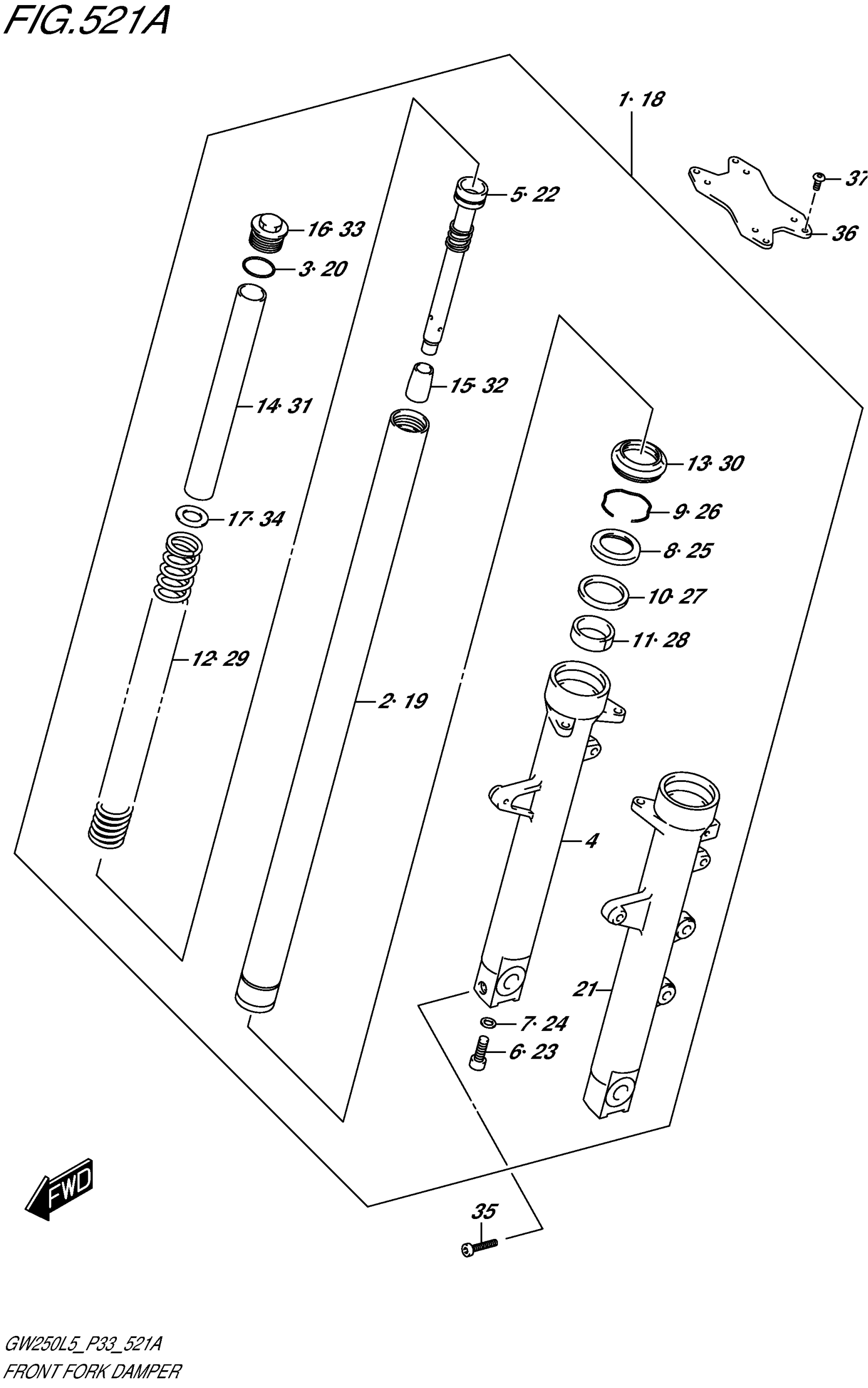

Find the part on the Front Fork Damper diagram for your 2015 Suzuki GW250L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki GW250L5 Front Fork Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DAMPER ASSY, FRONT FORK RH

51103-48H40

1
Out of stock

2

TUBE, INNER

51110-48H40

1
Out of stock

3

O RING

51117-38260

1
Out of stock

4

TUBE, OUTER

51130-48H10

1
Out of stock

5

CYLINDER

51146-48H00

1
Out of stock

6

BOLT

51147-05H00

1
Out of stock

7

GASKET

51148-41310

1
Out of stock

8

OIL SEAL

51153-26F00

1
Out of stock

9

RING, STOPPER

51156-40301

1
Out of stock

10

WASHER

51158-48H00

1
Out of stock

11

METAL, SLIDE

51167-01D00

1
Out of stock

12

SPRING

51171-48H00

1
Out of stock

13

SEAL, DUST

51173-48H00

1
Out of stock

14

SPACER

51176-48H00

1
Out of stock

15

PIECE, OIL LOCK

51195-48H00

1
Out of stock

16

CAP

51351-48H00

1
Out of stock

17

WASHER

51356-48H00

1
Out of stock

18

DAMPER ASSY, FRONT FORK LH

51104-48H40

1
Out of stock

19

TUBE, INNER

51110-48H40

1
Out of stock

20

O RING

51117-38260

1
Out of stock

21

TUBE, OUTER

51140-48H10

—
Out of stock

22

CYLINDER

51146-48H00

1
Out of stock

23

BOLT

51147-05H00

1
Out of stock

24

GASKET

51148-41310

1
Out of stock

25

OIL SEAL

51153-26F00

1
Out of stock

26

RING, STOPPER

51156-40301

1
Out of stock

27

WASHER

51158-48H00

1
Out of stock

28

METAL, SLIDE

51167-01D00

1
Out of stock

29

SPRING

51171-48H00

1
Out of stock

30

SEAL, DUST

51173-48H00

1
Out of stock

31

SPACER

51176-48H00

1
Out of stock

32

PIECE, OIL LOCK

51195-48H00

1
Out of stock

33

CAP

51351-48H00

1
Out of stock

34

WASHER

51356-48H00

1
Out of stock

35

BOLT

51328-48H00

1
Out of stock

36

STABILIZER,FR

51471-48H00

1
Out of stock

37

SCREW (6X16)

09139-06030

4
Out of stock
