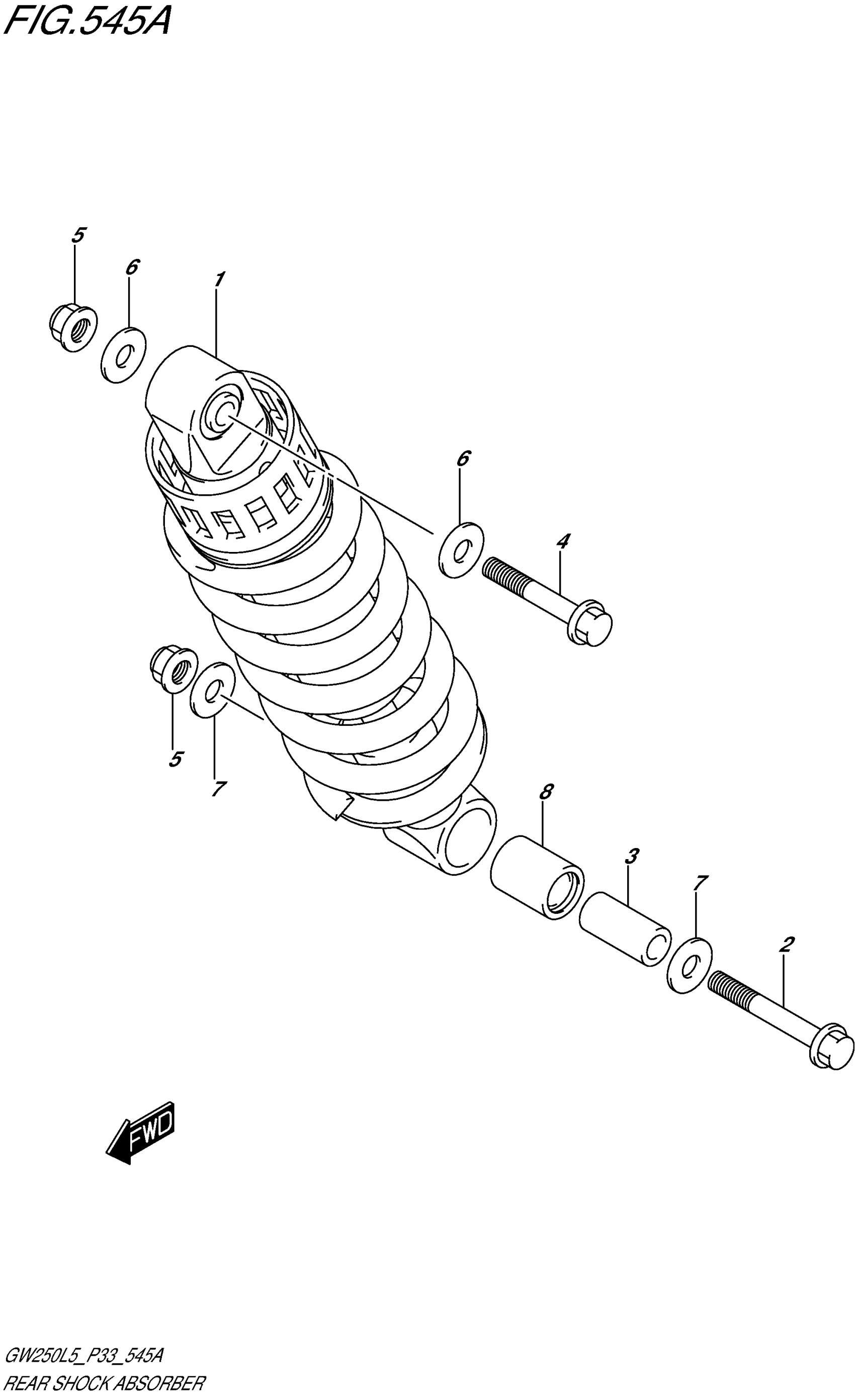

Suzuki GW250L5 (2015) REAR SHOCK ABSORBER Diagram

#

Description

Price

1

ABSORBER ASSY, REAR SHOCK (BLACK)

62100-48HF0-291

Unavailable

2

BOLT, RR SHOCK ABS LOWER

62313-48H00

Unavailable

3

SPACER, REAR SHOCK ABS LOWER

62317-48H00

Unavailable

4

BOLT (10X52)

09103-10213

$6.27

5

NUT

09159-10115

$3.21

6

WASHER (10.5X24X1)

09160-10020

$1.86

7

WASHER (10.5X24X2.3)

09160-10093

$2.19

8

BEARING (17X24X32)

09263-17L01

$5.46
