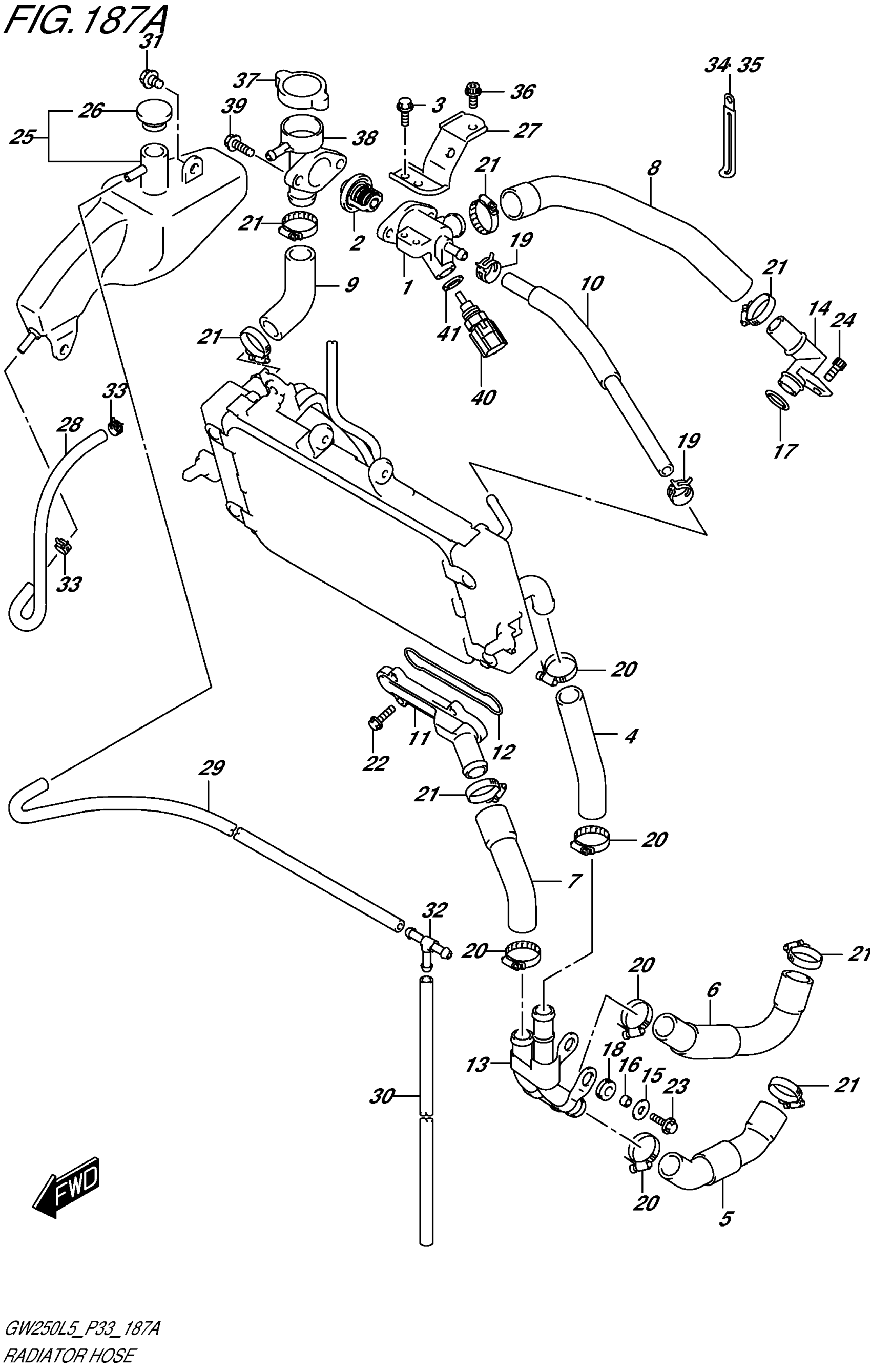

Suzuki GW250L5 (2015) RADIATOR HOSE Diagram

#

Description
Price

1

CONNECTOR, THERMOSTAT INLET

17662-48H00

Unavailable

2

THERMOSTAT,WATE This part replaces 17670-48H00.

17670-48H01

$20.43

3

BOLT

01550-0616A

$1.97

4

HOSE,RADIATOR OUTLET

17851-48H00

$8.95

5

HOSE,WATER PUMP INLET

17852-48H00

$12.53

6

HOSE, WATER PUMP OUTLET

17853-48H00

$14.87

7

HOSE, CYLINDER CONNECTOR

17854-48H00

$8.87

8

HOSE,THERMOSTAT CONNECTOR

17855-48H00

$15.80

9

HOSE, RADIATOR INLET

17856-48H10

$9.98

10

HOSE, WATER BYPASS

17857-48H00

Unavailable

11

CONNECTOR,CYLINDER WATER INLE

17861-48H00

Unavailable

12

O-RING

17863-48H00

Unavailable

13

PIPE, WATER PUMP

17870-48H00

$39.73

14

PIPE,CYL HEAD OUTLET

17880-48H00

Unavailable

15

WASHER (6.5X18X1.0)

09160-06028

$1.43

16

SPACER (6.5X9X5)

09180-06365

$0.88

17

O-RING (D:3.2,ID:17.8)

09280-18011

$2.07

18

CUSHION

09320-08084

$0.88

19

CLIP

09401-12L02

$2.95

20

CLAMP

09402-27L01

$9.55

21

CLAMP

09402-32L01

$9.82

22

BOLT

01547-0620A

$2.01

23

BOLT

01550-0620A

$1.97

24

BOLT

07130-0612A

$2.50

25

TANK ASSY, RESERVOIR

17910-48H00

$35.03

26

CAP, RESERVOIR TANK

17932-12C00

$4.09

27

BRACKET,RESERVOIR TANK

17920-48H00

Unavailable

28

HOSE, RESERVOIR TANK INLET | CUT AS REQUIRED

17981-19F00

$16.58

29

HOSE, RESERVOIR TANK OVER FLOW

17981-48H00

$9.80

30

HOSE,FUEL TANK WATER DRAIN

17985-48H10

Unavailable

31

BOLT (6X12)

09111-06085

$4.16

32

3 WAY

44438-48H10

Unavailable

33

CLIP

09401-08L01

$2.25

34

CLAMP This part replaces 09404-06206.

09404-06039

$1.73

35

CLAMP

09404-06208

Unavailable

36

BOLT

07120-0612A

$2.50

37

CAP, RADIATOR 1.1

17730-48H00

$19.05

38

CONDUCTION,RADI This part replaces 17791-48H00.

17791-48H01

$32.70

39

BOLT

01550-0620A

$1.97

40

SENSOR, WATER TEMP

13650-49X00

$82.56

41

GASKET,TEMP SENSOR (12X17X1)

13651-48H00

$4.22
