2015 Suzuki GW250L5 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2015 Suzuki GW250L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

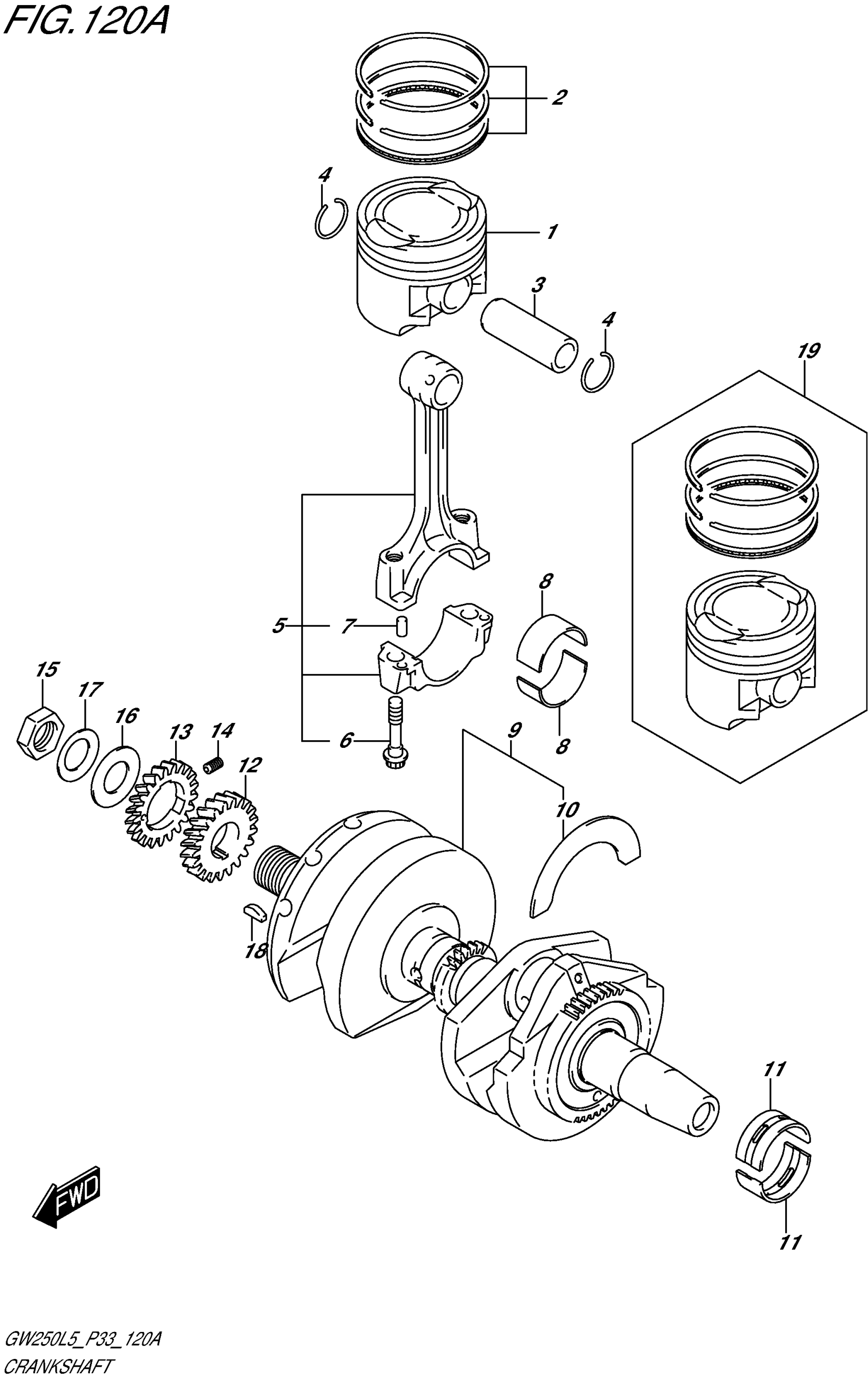

2015 Suzuki GW250L5 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON (YELLOW)

12111-48H00-0F0

2
Out of stock

2

RING SET, PISTON

12140-48H00

2
Out of stock

3

PIN,PISTON

12151-48H00

2
Out of stock

4

CIRCLIP

09381-15001

4
Out of stock

5

CONNROD ASSY

12160-48H00

2
Out of stock

6

BOLT, CONNROD

12163-35F00

4
Out of stock

7

PIN (4X13.8)

04221-04089

4
Out of stock

8

BEARING,CRANK PIN

12164-39F00-0A0

4
Out of stock

8

BEARING,CRANK PIN

12164-39F00-0B0

4
Out of stock

8

BEARING,CRANK PIN

12164-39F00-0C0

4
Out of stock

8

BEARING,CRANK PIN

12164-39F00-0D0

4
Out of stock

9

CRANKSHAFT SET

12200-48841

1
Out of stock

10

BEARING, CRANK THRUST (YELLOW)

12228-17E00-0E0

2
Out of stock

10

BEARING, CRANK THRUST (WHITE)

12228-17E00-0F0

1
Out of stock

10

BEARING, CRANK THRUST (ORANGE)

12228-17E00-0G0

1
Out of stock

10

BEARING, CRANK THRUST (PINK)

12228-17E00-0H0

1
Out of stock

10

BEARING, CRANK THRUST (BROWN)

12228-17E00-0J0

1
Out of stock

10

BEARING, CRANK THRUST (PURPLE)

12228-17E00-0K0

1
Out of stock

10

BEARING, CRANK THRUST (NO COLOR)

12228-17E00-0L0

1
Out of stock

11

BEARING,CRANKSHAFT

12229-48H10-0A0

8
Out of stock

11

BEARING,CRANKSHAFT

12229-48H10-0B0

8
Out of stock

11

BEARING, CRANKSHAFT (BROWN)

12229-48H10-0C0

8
Out of stock

11

BEARING,CRANKSHAFT

12229-48H10-0D0

8
Out of stock

12

GEAR,PRIMARY DRIVE (NT:21)

21111-48H01

1
Out of stock

13

GEAR,PRIMARY DRIVE NO.2 (NT:2 This part replaces 21112-48H00.

21112-48H01

1
Out of stock

14

SPRING,PRIMARY DRIVE GEAR

21114-35C00

3
Out of stock

15

NUT

09140-18023

1
Out of stock

16

WASHER (18X36X1.5)

09160-18039

1
Out of stock

17

WASHER

09164-18012

1
Out of stock

18

KEY

09420-04008

1
Out of stock

19

PISTON SET (OS:0.5) | OPT

12100-48H00-050

1
Out of stock
