2015 Suzuki GW250L5 Crank Balancer Diagram

← All diagrams

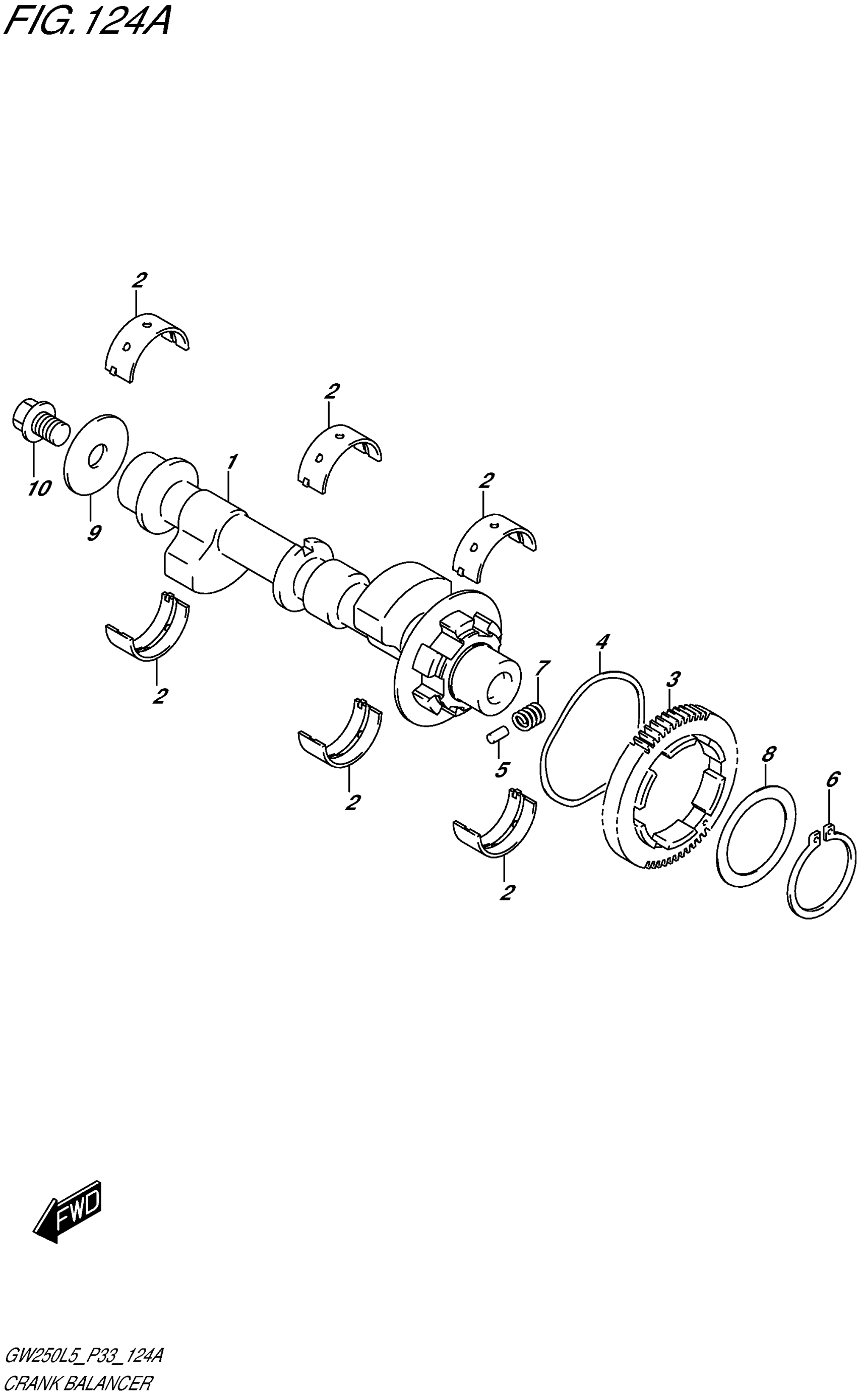

Find the part on the Crank Balancer diagram for your 2015 Suzuki GW250L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki GW250L5 Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BALANCER, CRANK

12650-48H00

1
Out of stock

2

BEARING, CRANK BALANCER (GREEN)

12229-48H00-0A0

6
Out of stock

2

BEARING, CRANK BALANCER (BLACK)

12229-48H00-0B0

6
Out of stock

2

BEARING, CRANK BALANCER (BROWN)

12229-48H00-0C0

6
Out of stock

2

BEARING, CRANK BALANCER (YELLOW)

12229-48H00-0D0

6
Out of stock

3

GEAR, CRANK BALANCER DRIVEN

12666-48H01

1
Out of stock

4

WASHER

09164-60001

1
Out of stock

5

PIN (4.5X9.5)

09202-04017

3
Out of stock

6

CIRCLIP

09380-38008

1
Out of stock

7

SPRING

09440-09031

6
Out of stock

8

WASHER

08211-38521

—
Out of stock

9

WASHER (10X37X3)

09160-10151

1
Out of stock

10

BOLT

01550-1016A

1

$3.06

In stock
