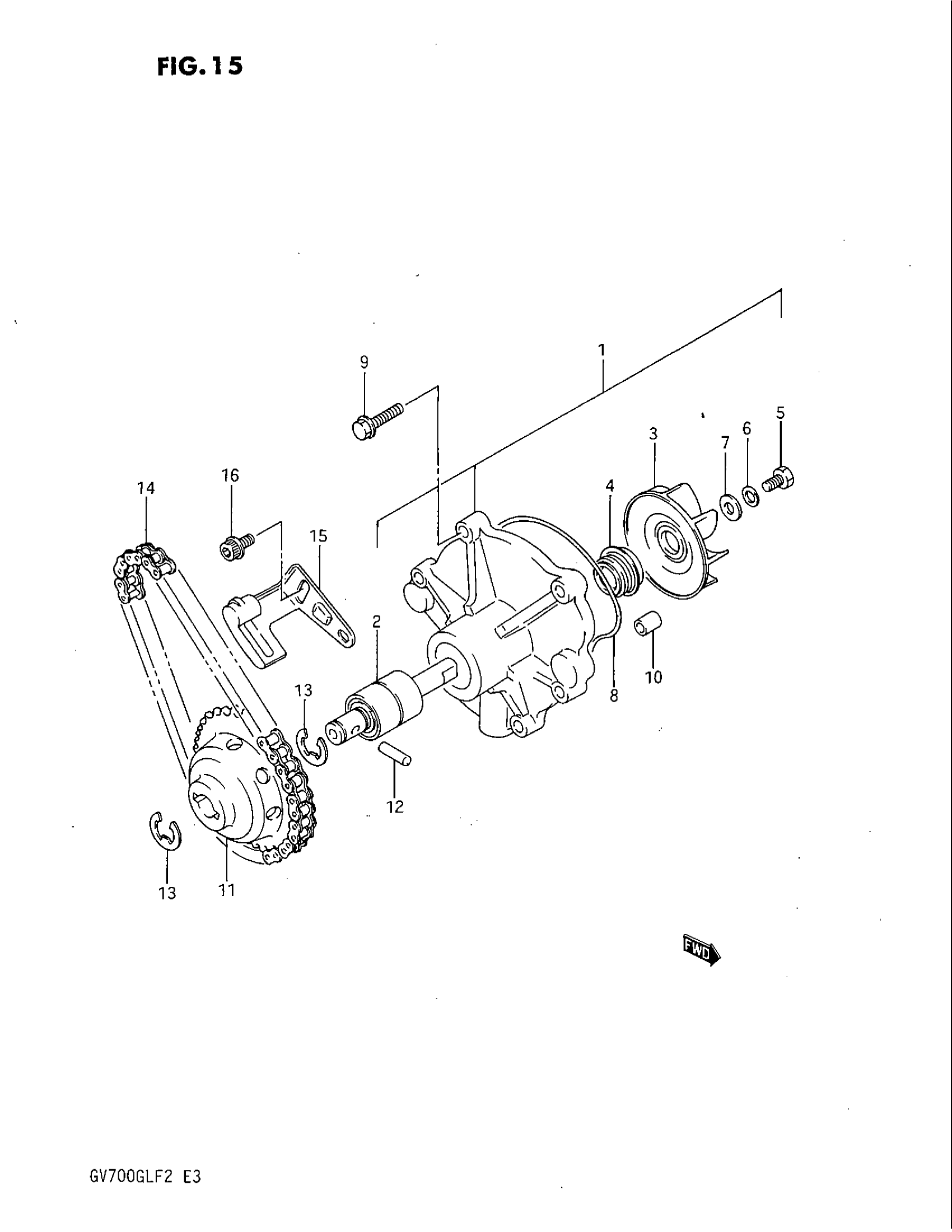

Suzuki GV700GL (1985) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY, WATER | Includes Item(s) 2 - 8 This part replaces 17400-05A00.

17400-24A00

Unavailable

2

SHAFT, WATER PUMP

17510-05A00

Unavailable

3

INPELLER

17491-05A00

Unavailable

4

.SEAL,MECHANICAL This part replaces 17470-14100.

17470-02F11

$29.22

5

BOLT

09100-06099

$2.00

6

LOCK WASHER

09164-06006

$2.61

7

GASKET This part replaces 09168-06016.

09168-06025

$2.92

8

O RING

17435-05A00

Unavailable

9

BOLT This part replaces 01517-06258.

01550-06257

$2.30

10

PIN

04211-09209

Unavailable

11

SPROCKET, DRIVEN

17540-05A00

Unavailable

12

PIN

09261-05007

Unavailable

13

E RING This part replaces 08332-11106.

08332-1110A

$1.80

14

CHAIN ASSY, DRIVE

17520-05A00

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 17560-05A01.

17560-05A02

Unavailable

16

BOLT, OIL GALLERY This part replaces 07120-06126.

07120-0612B

$3.04
