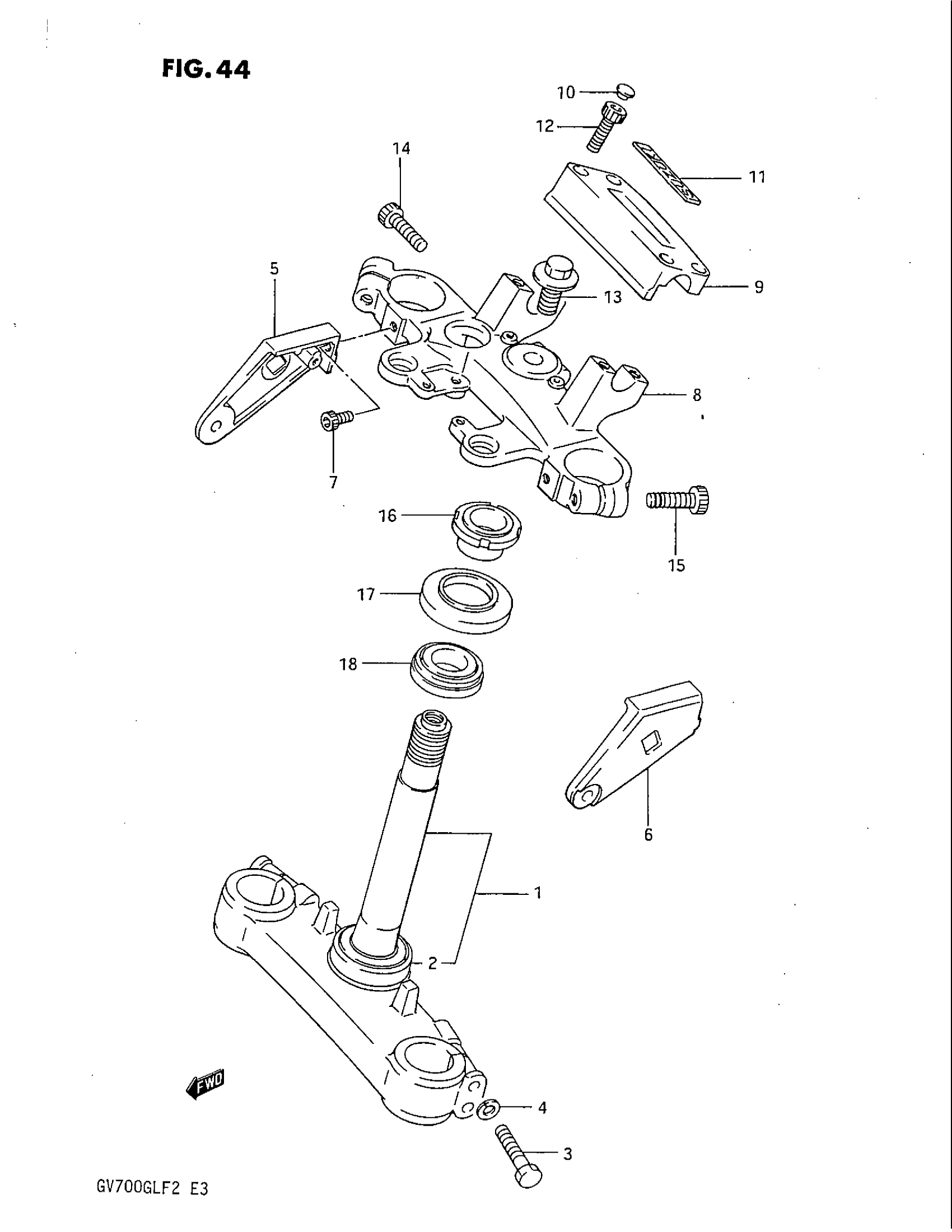

Suzuki GV700GL (1985) STEERING STEM Diagram

#

Description
Price

1

STEERING STEM (BLACK) | Includes Item(s) 2

51410-07A00-15T

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

3

BOLT This part replaces 01107-08405.

01500-0840A

$2.60

4

LOCK WASHER This part replaces 08321-31085.

08321-0108A

$1.84

5

NO DESCRIPTION AVAILABLE This part replaces 51530-05A00.

51500-05810

Unavailable

6

BRACKET, HEADLAMP LH This part replaces 51540-05A00.

51540-05A01

Unavailable

7

BOLT, NO.3 This part replaces 07110-06108.

07130-0610B

$3.21

8

STEM HEAD, STEERING

51311-07A00

Unavailable

9

HOLDER, HANDLEBAR

56211-05A00

Unavailable

10

CAP

09250-06009

$3.42

11

EMBLEM

56212-05A00

Unavailable

12

BOLT This part replaces 07110-08308.

07130-08307

$3.89

13

BOLT

51353-05A00

Unavailable

14

BOLT This part replaces 09106-08004.

07130-0835B

$4.60

15

BOLT, UPPER This part replaces 51352-05A00.

51352-00A00

Unavailable

16

NUT, STEERING STEM

51631-34200

Unavailable

17

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

18

BEARING, UPPER

09265-25008

Unavailable
