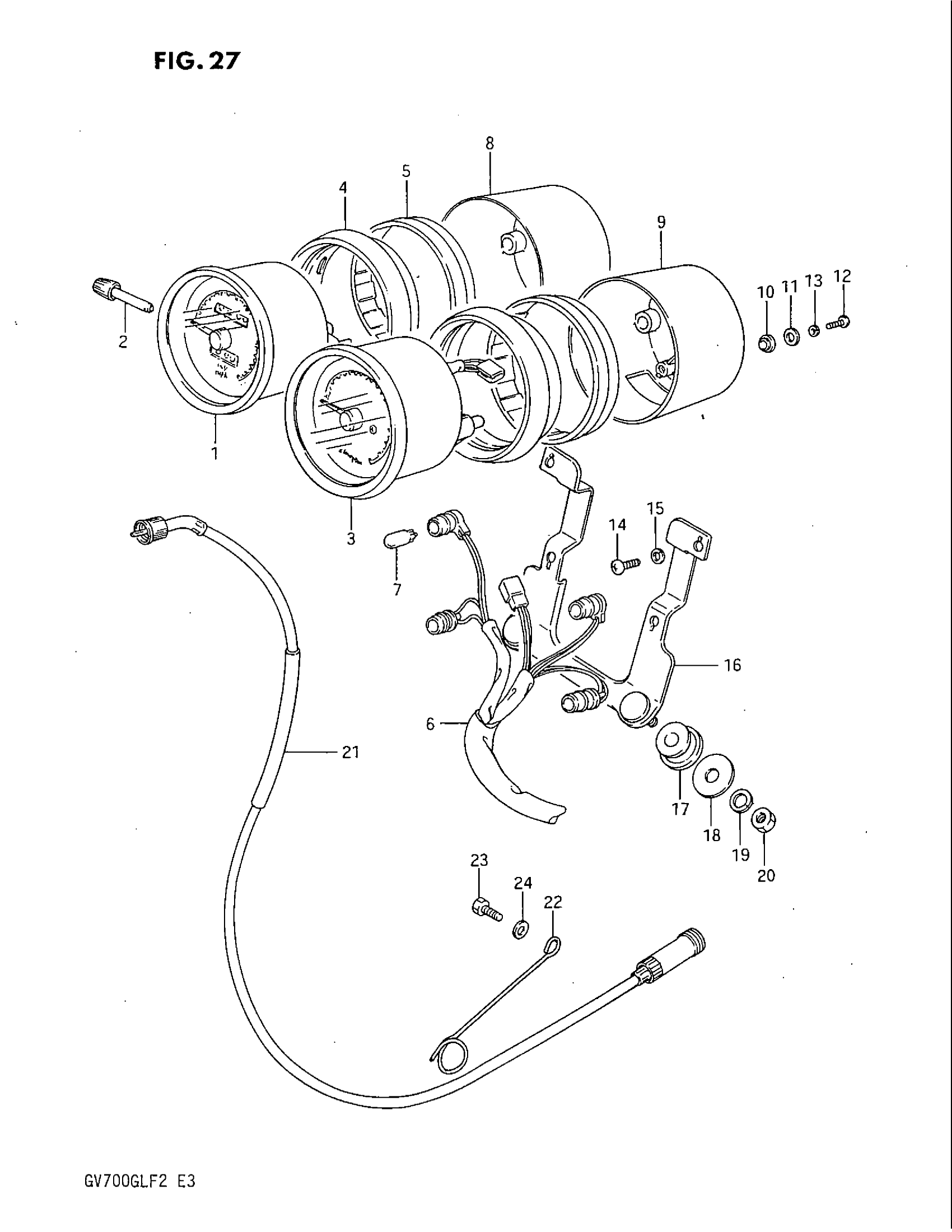

Suzuki GV700GL (1985) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) This part replaces 34110-07A30.

34110-05A30

Unavailable

2

KNOB, TRIP

34980-45020

$3.77

3

TACHOMETER This part replaces 34210-07A30.

34210-05A30

Unavailable

4

COVER, METER

34150-05A30

Unavailable

5

CUSHION, METER

34188-05A30

Unavailable

6

SOCKET, METER

34173-07A30

Unavailable

7

BULB (12V,3.4W)

09471-12028

$1.99

8

ORNAMENT, SPEEDOMETER

34193-05A30

Unavailable

9

ORNAMENT, TACHOMETER

34293-05A30

Unavailable

10

CUSHION This part replaces 34189-05A30.

34189-05A31

$5.32

11

WASHER This part replaces 08322-21048.

08322-01047

$1.86

12

SCREW This part replaces 02112-04108.

02112-04107

$1.55

13

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

14

SCREW, THROTTLE This part replaces 02112-05106.

02112-0510A

$1.49

15

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

16

BRACKET, METER

34950-05A30

Unavailable

17

CUSHION

34956-31001

$4.37

18

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

19

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

20

NUT This part replaces 08310-11085.

08310-0008A

$1.84

21

CABLE ASSY, SPEEDOMETER

34910-05A00

Unavailable

22

GUIDE, METER CABLE

34938-45100

$6.57

23

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

24

WASHER This part replaces 08322-21068.

08322-01067

$2.13
