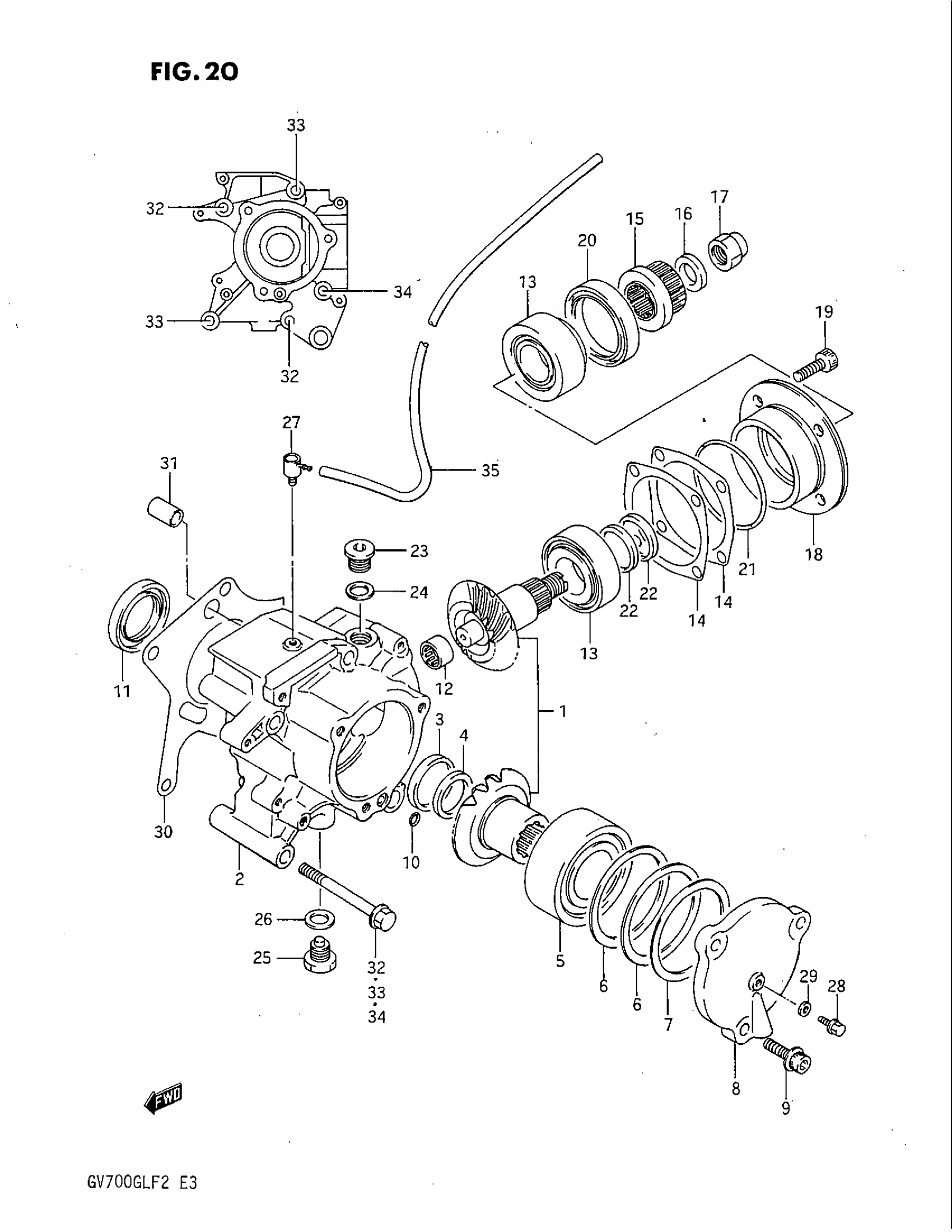

Suzuki GV700GL (1985) SECONDARY DRIVE GEAR Diagram

#

Description
Price

2ND.GEAR & CASE SET | Includes Item(s) 1 - 29

24900-05861

Unavailable

1

NO DESCRIPTION AVAILABLE | NT:15/16 This part replaces 24900-05851.

24911-05A03

Unavailable

2

CASE, SECONDARY GEAR

24930-05A03

Unavailable

3

HOUSING, SHIM

24933-05A00

Unavailable

4

SHIM (T:2.90)

24934-05A00-0A0

Unavailable

4

SHIM (T:3.00)

24934-05A00-0B0

Unavailable

4

SHIM (T:3.10)

24934-05A00-0C0

Unavailable

4

SHIM (T:3.20)

24934-05A00-0D0

Unavailable

4

SHIM (T:3.25)

24934-05A00-0E0

Unavailable

4

SHIM (T:3.30)

24934-05A00-0F0

Unavailable

4

SHIM (T:3.35)

24934-05A00-0G0

Unavailable

4

SHIM (T:3.40)

24934-05A00-0H0

Unavailable

4

SHIM (T:3.45)

24934-05A00-0I0

Unavailable

4

SHIM (T:3.50)

24934-05A00-0J0

Unavailable

4

SHIM (T:3.55)

24934-05A00-0K0

Unavailable

4

SHIM (T:3.60)

24934-05A00-0L0

Unavailable

4

SHIM (T:3.65)

24934-05A00-0M0

Unavailable

4

SHIM (T:3.70)

24934-05A00-0N0

Unavailable

4

SHIM (T:3.75)

24934-05A00-0P0

Unavailable

4

SHIM (T:3.80)

24934-05A00-0Q0

Unavailable

4

SHIM (T:3.90)

24934-05A00-0R0

Unavailable

4

SHIM (T:4.00)

24934-05A00-0S0

Unavailable

4

SHIM (T:4.10)

24934-05A00-0T0

Unavailable

5

BEARING

09267-35001

Unavailable

6

SHIM (T:0.30)

24935-05A00-0A0

Unavailable

6

SHIM (T:0.35)

24935-05A00-0B0

Unavailable

6

SHIM (T:0.40)

24935-05A00-0C0

Unavailable

6

SHIM (T:0.50)

24935-05A00-0D0

Unavailable

6

SHIM (T:0.60)

24935-05A00-0E0

Unavailable

7

O RING

09280-70007

Unavailable

8

HOUSING, BEARING

24932-05A04

Unavailable

9

BOLT This part replaces 07120-08256.

07120-0825B

$3.49

10

.O RING (D:1.9,ID:5.7)

09280-06005

$1.49

11

OIL SEAL

09283-35028

Unavailable

12

BEARING

09263-16022

Unavailable

13

BEARING

09265-30011

Unavailable

14

SHIM (T:1.50)

09181-30027

Unavailable

14

SHIM (T:1.60)

09181-30028

Unavailable

14

SHIM (T:1.62)

09181-30029

Unavailable

14

SHIM (T:1.64)

09181-30030

Unavailable

14

SHIM (T:1.66)

09181-30031

Unavailable

14

SHIM (T:1.68)

09181-30032

Unavailable

14

SHIM (T:1.70)

09181-30033

Unavailable

14

SHIM (T:1.80)

09181-30034

Unavailable

14

SHIM (T:1.90)

09181-30035

Unavailable

14

SHIM (T:2.00)

09181-30036

Unavailable

15

COUPLING, DRIVEN GEAR

24940-05A00

Unavailable

16

WASHER

09160-16029

$6.35

17

NUT

09159-16003

$4.00

18

HOUSING, DRIVEN GEAR

24941-05A01

Unavailable

19

BOLT This part replaces 07110-08256.

07130-0825B

$3.37

20

OIL SEAL

09283-48009

Unavailable

21

O RING

09280-67004

$4.10

22

SHIM (T:0.30)

24945-05A00-0A0

Unavailable

22

SHIM (T:0.35)

24945-05A00-0B0

Unavailable

22

SHIM (T:0.40)

24945-05A00-0C0

Unavailable

22

SHIM (T:0.50)

24945-05A00-0D0

Unavailable

22

SHIM (T:0.60)

24945-05A00-0E0

Unavailable

23

PLUG, CYLINDER HEAD This part replaces 09248-14004.

09248-14010

$5.50

24

GASKET

09168-14004

$1.83

25

PLUG, OIL DRAIN This part replaces 09247-14019.

09247-14036

$6.17

26

GASKET

09168-14004

$1.83

27

PLUG, BREATHER

24821-45100

$9.00

28

BOLT This part replaces 01517-05088.

01550-0508B

Unavailable

29

GASKET

09168-05010

$1.71

30

GASKET,SECONDAR This part replaces 24936-05A00.

24936-05A01

Unavailable

31

PIN

09206-13004

$2.40

32

BOLT This part replaces 01517-08805.

01550-0880A

$3.61

33

BOLT This part replaces 01517-08855.

01550-0885B

Unavailable

34

BOLT This part replaces 01517-08955.

01550-0895A

$4.60

35

HOSE(2X5X600) This part replaces 09343-02009.

09352-20504-600

$6.70
