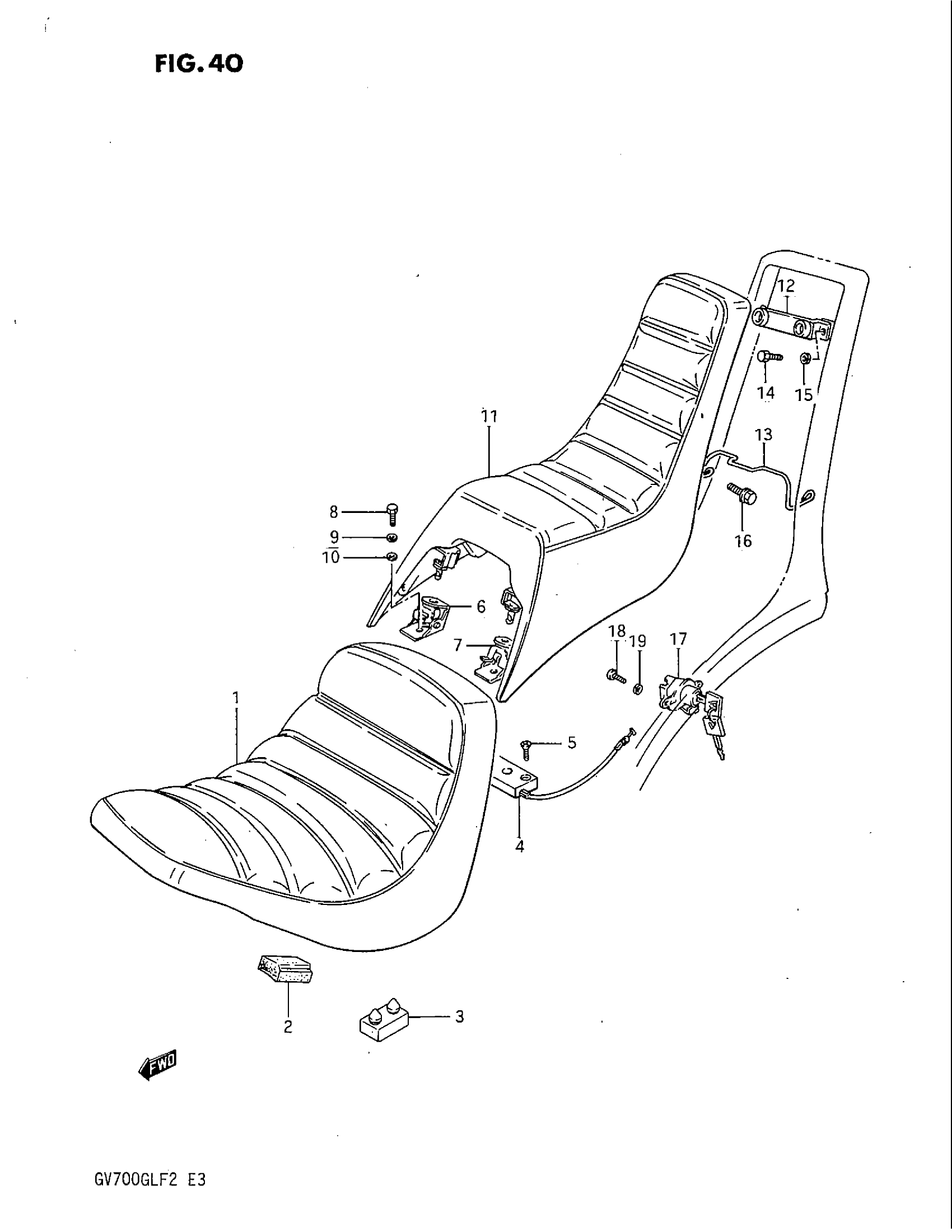

Suzuki GV700GL (1985) SEAT Diagram

#

Description
Price

1

SEAT SET (BLACK) | MODEL F This part replaces 45100-05A00-59N.

45100-05A01-59N

Unavailable

1

SEAT SET (BLACK) | MODEL F2; Includes Item(s) 2

45100-05A01-59N

Unavailable

2

CUSHION

45562-01400

Unavailable

3

CUSHION

09321-08012

$3.85

4

BRACKET, SEAT SUPPORT

45220-05A00

Unavailable

5

SCREW This part replaces 02122-06255.

02122-0625A

$1.49

6

BRACKET, SEAT SUPPORT REAR RH

45320-07A00

Unavailable

7

BRACKET, SEAT SUPPORT REAR LH

45330-07A00

Unavailable

8

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

9

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

10

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

11

SEAT SET, PILLION (BLACK) | MODEL F This part replaces 45300-07A00-59N.

45300-07A01-59N

Unavailable

11

SEAT SET, PILLION (BLACK) | MODEL F2

45300-07A01-59N

Unavailable

12

PLATE, PILLION SEAT SUPPORT

45270-07A00

Unavailable

13

ROD, PILLION SEAT SUPPORT

45318-07A00

Unavailable

14

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

BOLT This part replaces 01517-05128.

01550-0512B

$2.87

17

NO DESCRIPTION AVAILABLE This part replaces 45700-07A00-KEY.

45700-07850

Unavailable

18

SCREW This part replaces 02112-06125.

02112-0612A

$1.49

19

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26
