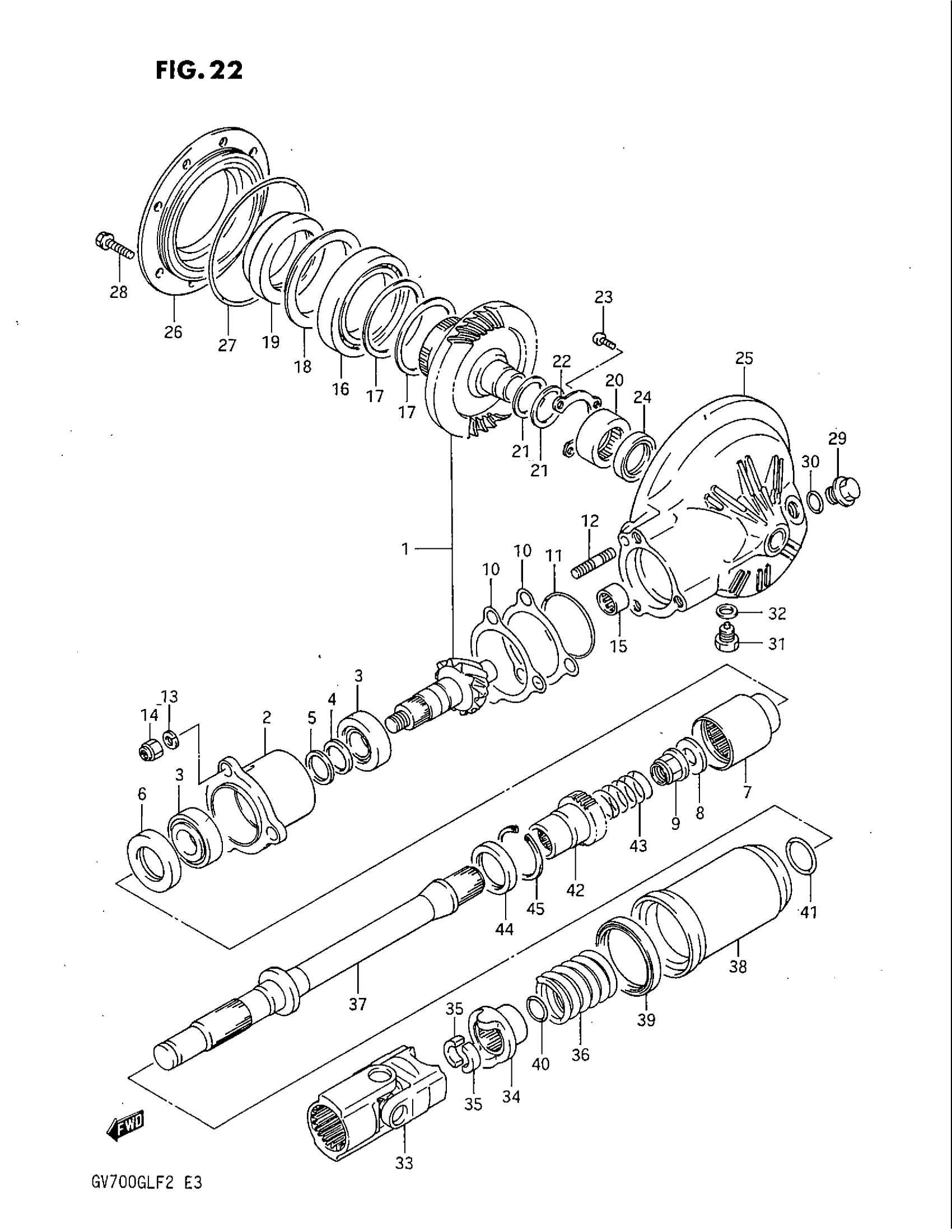

Suzuki GV700GL (1985) PROPELLER SHAFT - FINAL DRIVE GEAR Diagram

#

Description
Price

FINAL GEAR & CASE SET | Includes Item(s) 1 - 32

27300-07860

Unavailable

1

FINAL GEAR SET (NT:11/34)

27300-07851

Unavailable

2

HOUSING, DRIVE BEVEL GEAR

27441-07A00

Unavailable

3

BEARING, REAR This part replaces 09265-25014.

09265-25024

$60.80

4

SPACER

09180-25071

Unavailable

5

SHIM (T:1.60)

09181-25006

Unavailable

5

SHIM (T:1.62)

09181-25007

Unavailable

5

SHIM (T:1.64)

09181-25008

Unavailable

5

SHIM (T:1.66)

09181-25009

Unavailable

5

SHIM (T:1.68)

09181-25010

Unavailable

5

SHIM (T:1.70)

09181-25011

Unavailable

5

SHIM (T:1.80)

09181-25012

Unavailable

5

SHIM (T:1.90)

09181-25013

Unavailable

5

SHIM (T:2.00)

09181-25014

Unavailable

6

OIL SEAL

09283-32017

Unavailable

7

COUPLING, FINAL DRIVE GEAR

27172-45100

Unavailable

8

WASHER

09160-14021

$6.63

9

NUT

09159-14010

$14.12

10

SHIM (T:0.15)

27445-45100

Unavailable

10

SHIM (T:0.30)

27445-45102

Unavailable

10

SHIM (T:0.35)

27445-45101

Unavailable

10

SHIM (T:0.40)

27445-45103

Unavailable

11

O RING

09280-63004

$4.75

12

STUD BOLT

09108-10064

Unavailable

13

LOCK WASHER This part replaces 08321-31105.

08321-0110A

$1.84

14

NUT This part replaces 09159-10036.

09159-10027

$3.10

15

BEARING

09263-16023

Unavailable

16

BEARING, RH

09262-70001

$140.93

17

SHIM (T:0.35)

27327-34200

Unavailable

17

SHIM (T:0.40)

27327-34210

Unavailable

17

SHIM (T:0.50)

27327-34220

Unavailable

17

SHIM (T:0.60)

27327-34230

Unavailable

18

PLATE

27328-34200

$7.37

19

OIL SEAL, RH

09289-70001

$51.76

20

BEARING, LH

09263-32007

$81.08

21

SHIM (T:1.35)

27326-34241

Unavailable

21

SHIM (T:1.25)

27326-34231

Unavailable

21

SHIM (T:1.20)

27326-34221

Unavailable

21

SHIM (T:1.10)

27326-34211

Unavailable

21

SHIM (T:1.05)

27326-34201

Unavailable

22

RETAINER, BEARING

27329-34200

Unavailable

23

SCREW This part replaces 02112-06128.

02112-06127

$1.84

24

OIL SEAL

09283-30028

$9.60

25

CASE, FINAL GEAR

27450-07A03

Unavailable

26

CASE, FINAL GEAR BEARING This part replaces 27460-07A00.

27460-07A01

Unavailable

27

O RING

09280-00015

$11.03

28

BOLT This part replaces 01517-08258.

01550-08257

$2.81

29

PLUG, OIL FILLER

09247-18001

$8.83

30

O RING

09280-18004

$5.18

31

PLUG, OIL DRAIN This part replaces 09247-14019.

09247-14036

$6.17

32

GASKET

09168-14004

$1.83

33

YOKE, UNIVERSAL JOINT

27100-05A02

Unavailable

34

DOG, OUT PUT CAM

27142-05A00

Unavailable

35

STOPPER

22541-34200

Unavailable

36

SPRING

09440-35002

Unavailable

37

SHAFT, PROPELLER

27151-07A03

Unavailable

38

COVER, PROPELLER SHAFT

27160-05A00

Unavailable

39

OIL SEAL

09283-52003

Unavailable

40

O RING

09280-16005

$2.23

41

O RING

09280-24006

$1.72

42

COUPLING, PROPELLER SHAFT

27171-45101

Unavailable

43

SPRING

09440-27005

Unavailable

44

OIL SEAL

09283-30026

$10.40

45

CIRCLIP

09381-40003

$4.64
