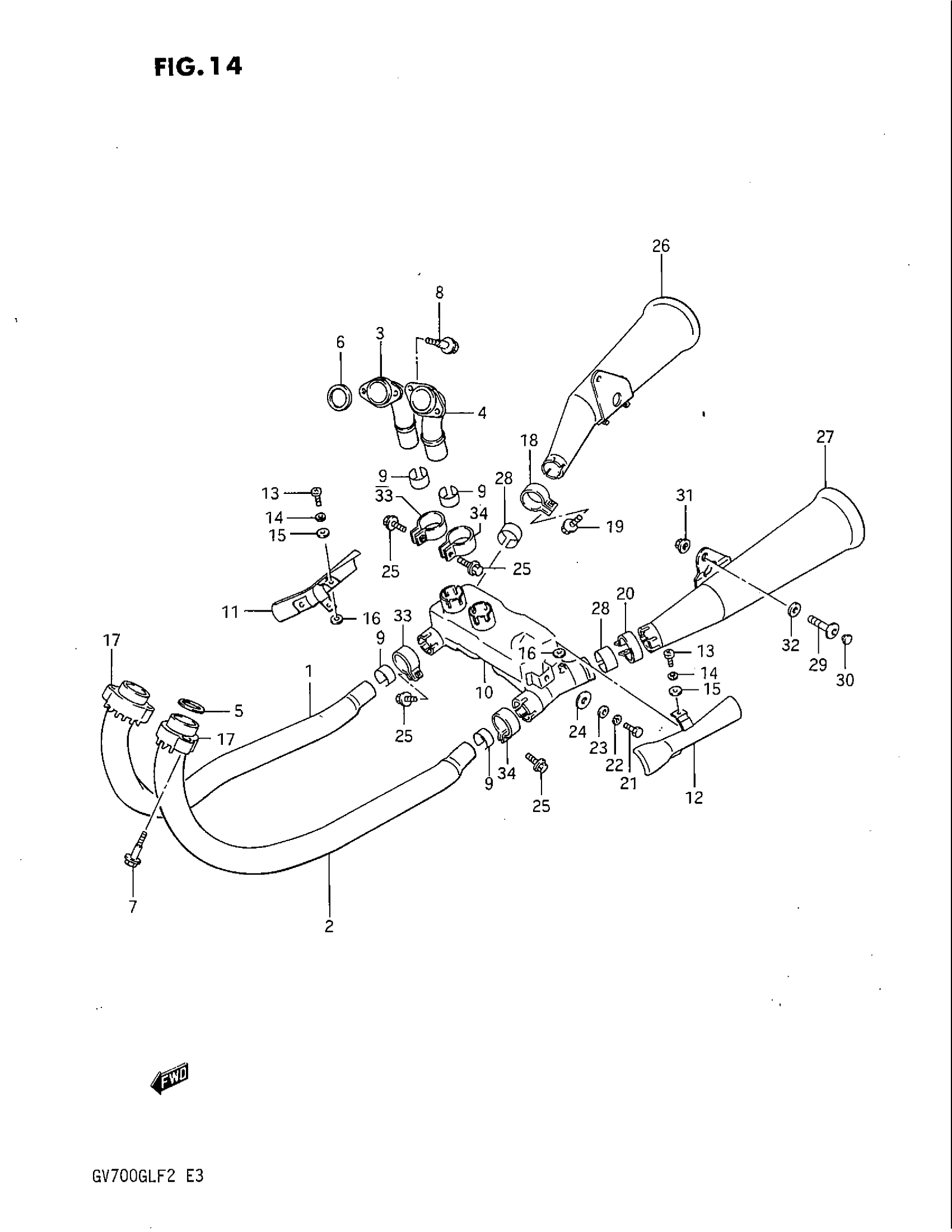

Suzuki GV700GL (1985) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST FRONT RH

14150-07A01

Unavailable

2

PIPE. EXHAUST FRONT LH

14160-07A01

Unavailable

3

PIPE, EXHAUST REAR RH | ~E.NO.103228 This part replaces 14170-07A01.

14170-07A02

Unavailable

3

PIPE, EXHAUST REAR RH | E.NO.103229~

14170-07A02

Unavailable

4

PIPE, EXHAUST REAR LH | ~E.NO.103228 This part replaces 14180-07A01.

14180-07A02

Unavailable

4

PIPE, EXHAUST REAR LH | E.NO.103229~

14180-07A02

Unavailable

5

GASKET, EXHAUST PIPE This part replaces 14181-12010.

14181-42A00

$10.93

6

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

$7.22

7

BOLT, MUFFLER SUPPORT This part replaces 07120-08458.

07120-0845B

$3.91

8

BOLT This part replaces 07110-08258.

07130-08257

$3.43

9

CONNECTOR, MUFFLER This part replaces 14771-07A00.

14771-14D00

$23.87

10

BODY, PREMUFFLER

14210-07A03-H01

Unavailable

11

COVER, PREMUFFLER RH

14780-07A01

Unavailable

12

COVER, PREMUFFLER LH

14790-07A01

Unavailable

13

SCREW This part replaces 02112-06128.

02112-06127

$1.84

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.12

17

CLAMP, EXHAUST PIPE FRONT

14182-49011

Unavailable

18

CLAMP, MUFFLER CONNECTOR RH | ~E.NO.100723

14459-07A00

Unavailable

18

CLAMP, MUFFLER CONNECTOR RH | E.NO.100724~

14459-07A01

Unavailable

19

BOLT | ~E.NO.100723 This part replaces 01517-08307.

01550-08307

$3.54

19

BOLT | E.NO.100724~ This part replaces 01517-08358.

01550-08357

$3.49

20

CLAMP, MUFFLER CONNECTOR LH | ~E.NO.100723

14469-07A00

Unavailable

20

CLAMP, MUFFLER CONNECTOR LH | E.NO.100724~

14469-07A01

Unavailable

21

BOLT This part replaces 01107-08255.

01500-0825A

$2.19

22

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

23

WASHER This part replaces 08322-21085.

08322-0108A

$1.92

24

GASKET

09168-08017

Unavailable

25

BOLT | ~E.NO.100644

09103-08143

Unavailable

25

BOLT (8X35) | E.NO.100645~ This part replaces 01517-08355.

01550-0835A

$3.04

26

MUFFLER ASSY, RH | ~E.NO.100723 This part replaces 14301-07A02-H01.

14301-07A03-H01

Unavailable

26

MUFFLER ASSY, RH | E.NO.100724~

14301-07A03-H01

Unavailable

27

MUFFLER ASSY, LH | ~E.NO.100723 This part replaces 14302-07A02-H01.

14302-07A03-H01

Unavailable

27

MUFFLER ASSY, LH | E.NO.100724~

14302-07A03-H01

Unavailable

28

CONNECTOR,MUFF( This part replaces 14771-00A01.

14771-00A01-H17

Unavailable

29

BOLT

09106-10015

Unavailable

30

CAP

43575-34500

$1.72

31

NUT This part replaces 09159-10014.

09159-10046-XC0

$2.03

32

WASHER

09160-10005

$1.87

33

CLAMP, R | ~E.NO.100644 This part replaces 14459-07A10.

14459-07A11

Unavailable

33

CLAMP, R | E.NO.100645~

14459-07A11

Unavailable

34

CLAMP | ~E.NO.100644 This part replaces 14469-07A10.

14469-07A11

Unavailable

34

CLAMP, L | E.NO.100645~

14469-07A11

Unavailable
