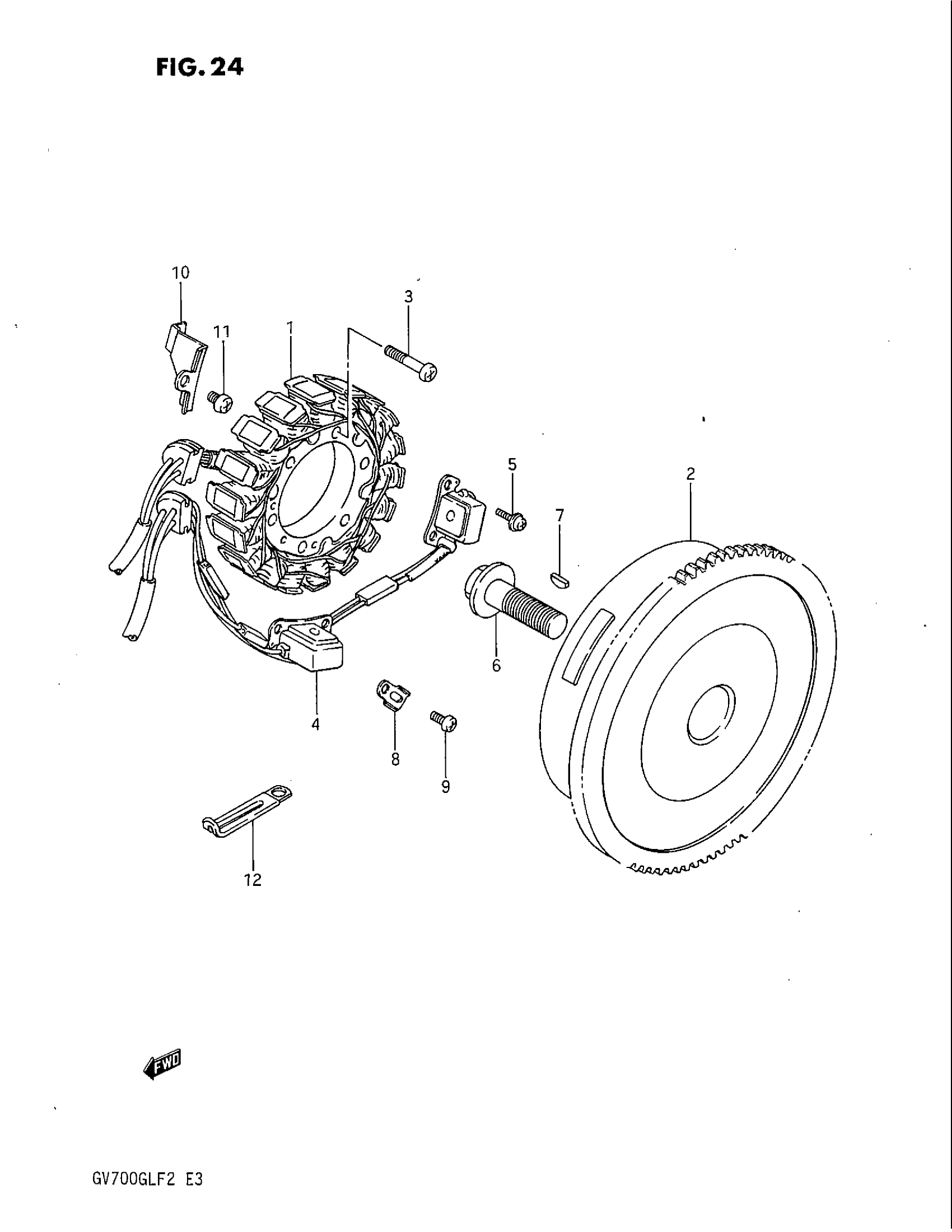

Suzuki GV700GL (1985) MAGNETO Diagram

#

Description
Price

1

STATOR

32101-05A00

Unavailable

2

ROTOR

32102-05A00

Unavailable

3

SCREW This part replaces 02112-06308.

02112-06307

$1.97

4

SENSOR, TIMING

32160-05A00

Unavailable

5

SCREW This part replaces 02152-04128.

02142-04127

$1.57

6

BOLT

09103-14001

$11.82

7

KEY This part replaces 08341-31049.

09420-04008

$3.42

8

CLAMP

31497-45000

$1.92

9

SCREW This part replaces 02112-05088.

02112-05087

$1.49

10

CLAMP

32371-05A00

Unavailable

11

SCREW This part replaces 02112-06108.

02112-06107

$1.49

12

CLAMP This part replaces 09404-08413.

09404-08420

$3.16
