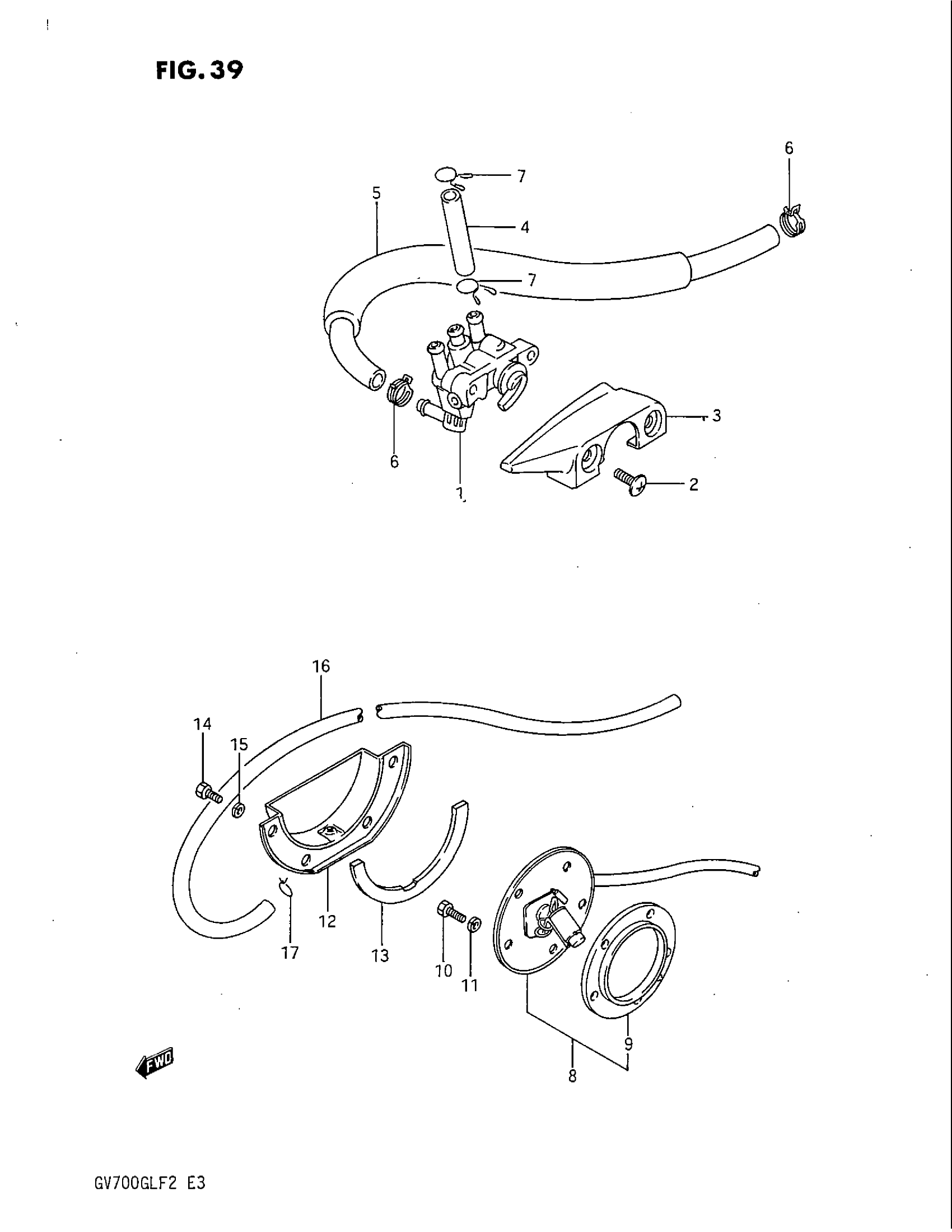

Suzuki GV700GL (1985) FUEL COCK Diagram

#

Description
Price

1

COCK ASSY, FUEL | MODEL F This part replaces 44300-05A72.

44300-05A73

Unavailable

1

COCK ASSY, FUEL | MODEL F2

44300-05A73

Unavailable

2

SCREW This part replaces 02142-06165.

02142-0616A

$1.49

3

COVER, FUEL COCK (BLACK) | MODEL F This part replaces 44391-05A00-291.

44391-05A11-291

Unavailable

3

COVER, FUEL COCK (BLACK) | MODEL F2

44391-05A11-291

Unavailable

4

HOSE,6.5X11.5X6 This part replaces 09343-07132.

44421-12FR0

$12.33

5

HOSE, COOK & PUMP

09343-07133

Unavailable

5

(CA)HOSE, COOK & PUMP | MODEL F2 CALIFORNIA ONLY

09343-07178

Unavailable

6

CLIP This part replaces 09401-12402.

09401-12404

$2.34

7

CLIP, COCK & PUMP HOSE

09401-12403

$1.96

8

GAUGE, FUEL LEVEL | MODEL F This part replaces 34810-05A00.

34810-05A01

Unavailable

8

GAUGE, FUEL LEVEL | MODEL F2; Includes Item(s) 9

34810-05A01

Unavailable

9

GASKET

34825-45100

$5.80

10

BOLT This part replaces 01107-05108.

01500-0510B

$1.80

11

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

12

PLATE

34885-49005

Unavailable

13

GASKET,FUEL DRA This part replaces 34888-34500.

34888-34501

Unavailable

14

SCREW This part replaces 02112-05086.

02112-0508A

$1.49

15

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

16

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

17

CLIP

09401-08402

$1.49
