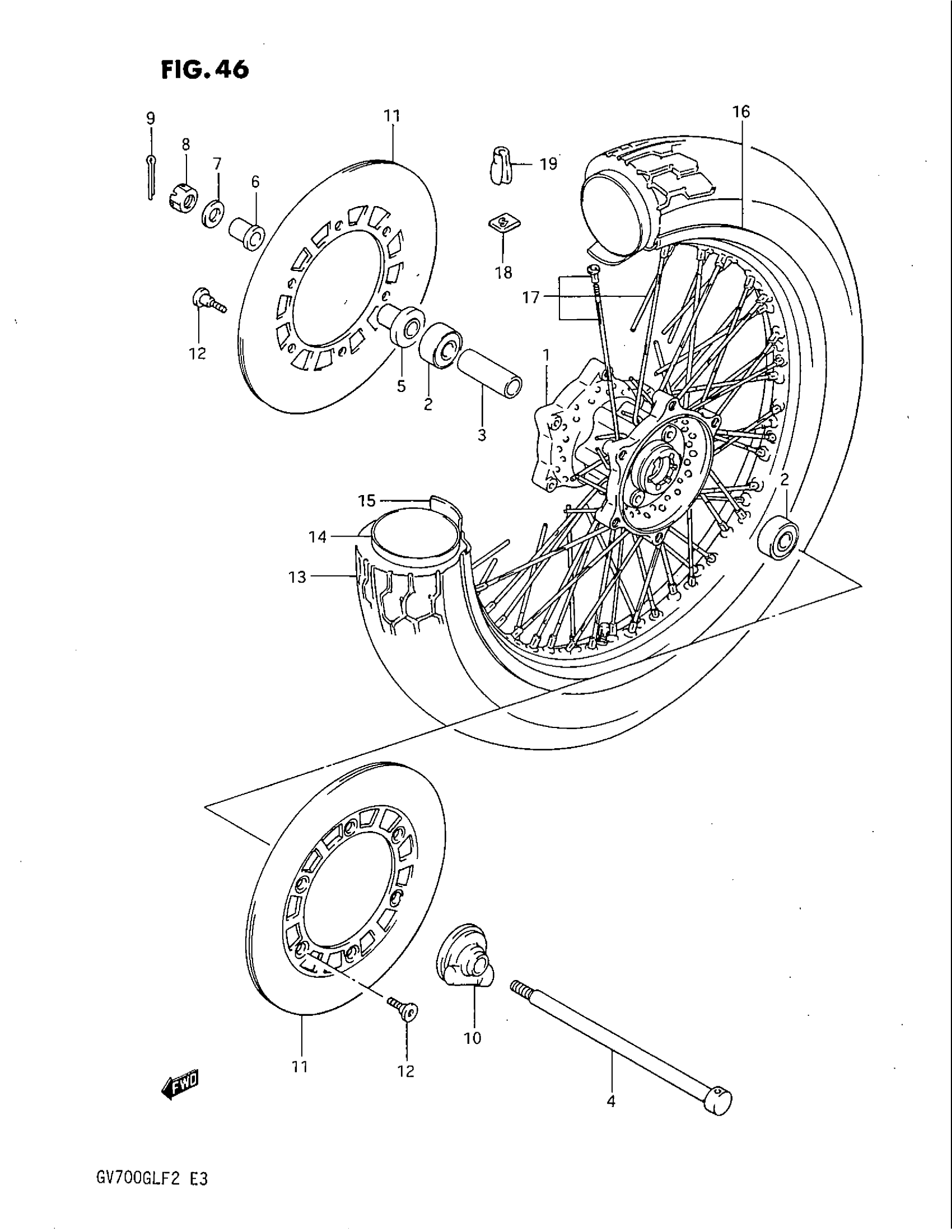

Suzuki GV700GL (1985) FRONT WHEEL Diagram

#

Description
Price

1

HUB ASSY, FRONT

54110-05A00

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER, HUB BEARING

09180-15067

Unavailable

4

AXLE, FRONT

54711-09300

Unavailable

5

SPACER, BEARING RH

54740-05A00

Unavailable

6

SPACER, AXIE RH This part replaces 54741-07A00.

54741-49101

Unavailable

7

WASHER This part replaces 08322-21128.

08322-01127

$1.84

8

NUT This part replaces 08314-41128.

08314-4012A

$2.50

9

PIN This part replaces 04111-30308.

04111-3030A

$1.49

10

BOX ASSY,SPEEDO This part replaces 54600-49100.

54600-49101

$105.57

11

DISC, FRONT BRAKE | MODEL F

59211-05A11

Unavailable

11

(CA)DISC, FRONT BRAKE | MODEL F2 CALIFORNIA ONLY

59211-05A50

Unavailable

12

BOLT

09106-08049

$4.62

13

TIRE, FRONT (110/80-19 59H) | BS

55100-05A30

Unavailable

14

TUBE This part replaces 55200-05A30.

55200-44611

$33.73

15

PROTECTOR, WHEEL INNER TUBE FRONT This part replaces 55261-15010.

55261-15020

$3.15

16

RIM, WHEEL

55311-07A01

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 55320-05A02.

55320-05A03

Unavailable

18

WHEEL WEIGHT This part replaces 55411-05A00.

43221-59J10

Unavailable

18

WHEEL WEIGHT This part replaces 55412-05A00.

43221-59J10

Unavailable

18

WHEEL WEIGHT This part replaces 55413-05A00.

43221-59J10

Unavailable

19

BALANCER, WHEEL (20G) This part replaces 55412-38A00.

55412-41F00

$8.12

19

BALANCER WHEEL (30G) This part replaces 55413-38A00.

55413-41F00

$7.50
