1985 Suzuki GV700GL Front Master Cylinder Diagram

← All diagrams

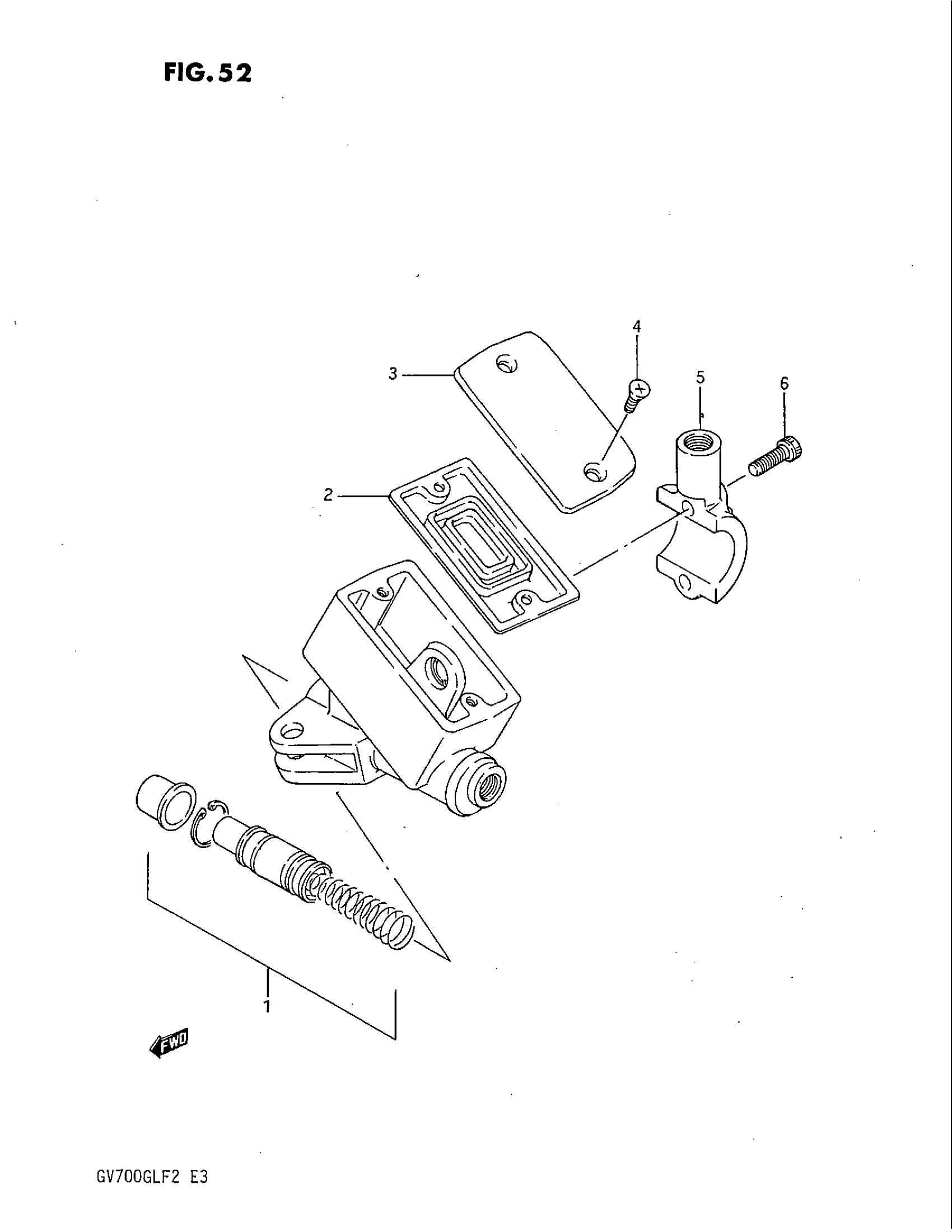

Find the part on the Front Master Cylinder diagram for your 1985 Suzuki GV700GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Suzuki GV700GL Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

MASTER CYLINDER ASSY, FRONT | Includes Item(s) 1 - 6

59600-05A00

1
Out of stock

1

PISTON & CUP SET

59600-45860

1

$39.36

In stock

2

DIAPHRAGM

59667-49460

1
Out of stock

3

1

$33.38

In stock

4

SCREW

69689-49300

2
Out of stock

5

HOLDER

59671-05A00

1

$25.95

In stock
← Front Calipers Rear Brake →

More Brakes diagrams
