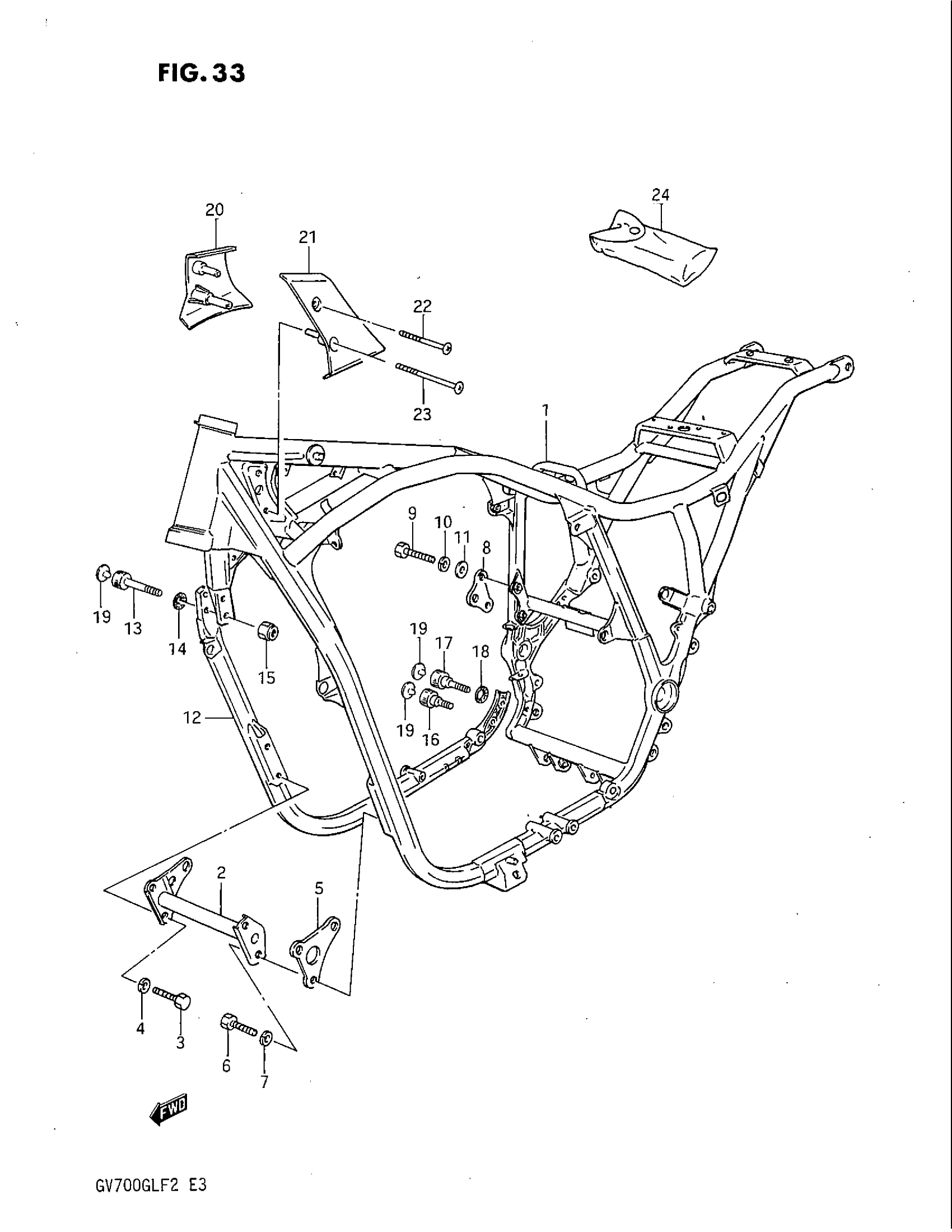

Suzuki GV700GL (1985) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) | OTHER THAN CALIFORNIA

41100-07A00-019

Unavailable

1

(CA)FRAME (BLACK) | CALIFORNIA ONLY

41100-07A50-019

Unavailable

2

PLATE, NO.1, RH (BLACK)

41910-07A00-019

Unavailable

3

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

4

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

5

PLATE, NO.1, LH (BLACK)

41921-07A00-019

Unavailable

6

BOLT This part replaces 01107-08205.

01500-0820A

$2.28

7

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

8

PLATE, NO.3, RH (BLACK)

41951-07A00-019

Unavailable

9

BOLT This part replaces 01107-08205.

01500-0820A

$2.28

10

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

11

WASHER This part replaces 08322-21085.

08322-0108A

$1.92

12

TUBE, FRAME DOWN RH (BLACK)

41140-07A00-019

Unavailable

13

BOLT,10X38 This part replaces 09106-10033.

09106-10033-XC0

Unavailable

14

WASHER This part replaces 09164-10005.

09164-10010

$4.83

15

NUT This part replaces 08319-31105.

08319-3110A

$2.73

16

BOLT, LOWER FRONT

09106-10034

Unavailable

17

BOLT, LOWER REAR

09106-10035

Unavailable

18

WSHER

09164-11003

Unavailable

19

CAP

43575-34500

$1.72

20

COVER, FRAME HEAD RH

51876-05A00

Unavailable

21

COVER, FRAME HEAD LH

51886-05A00

Unavailable

22

NO DESCRIPTION AVAILABLE This part replaces 02142-05505.

02142-05503

Unavailable

23

SCREW, LOWER

02142-05605

Unavailable

24

TOOL ASSY This part replaces 09800-00286.

09800-21068

Unavailable
