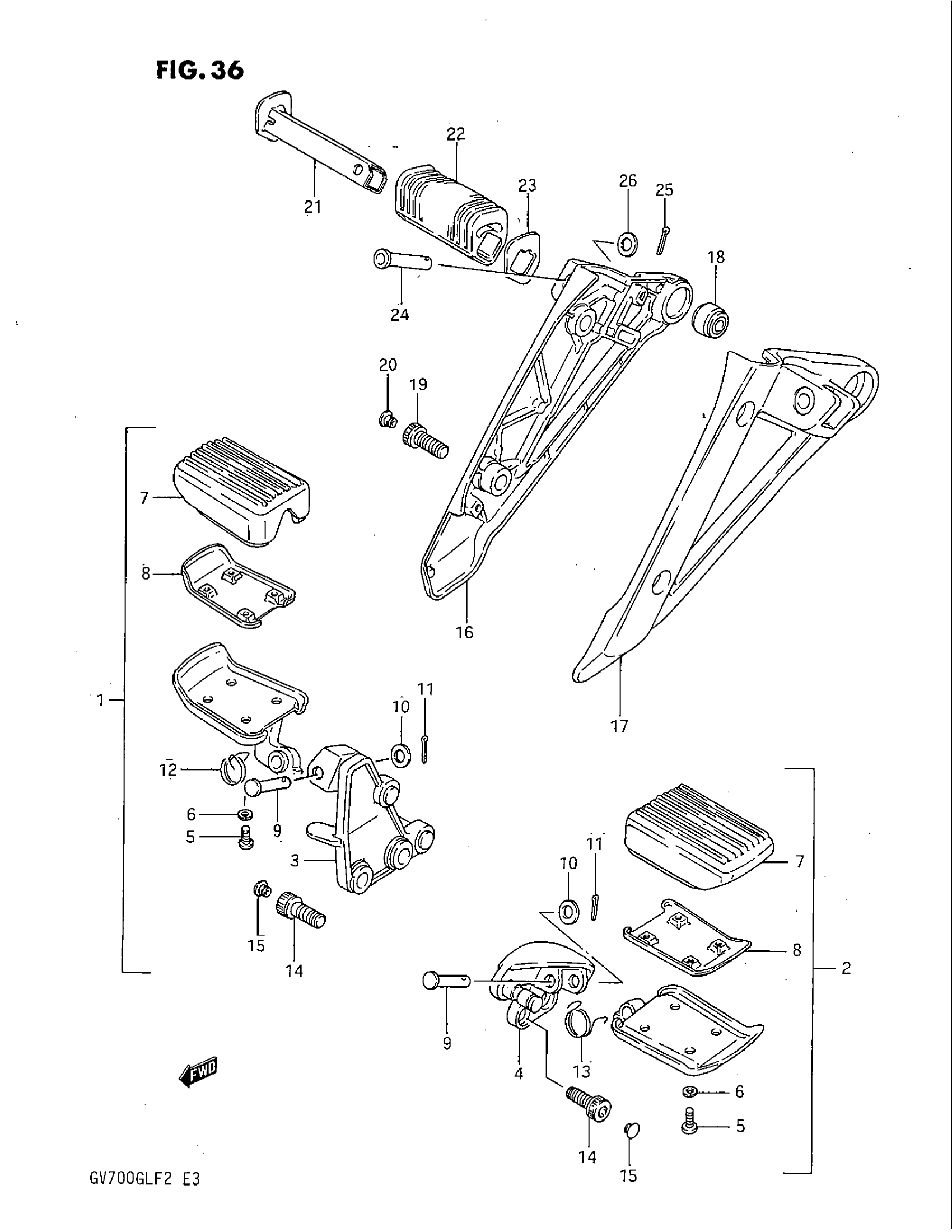

Suzuki GV700GL (1985) FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY, FRONT RH

43501-07A00

Unavailable

2

FOOTREST ASSY, FRONT LH | Includes Item(s) 3 - 13

43502-07A00

Unavailable

3

BAR, FRONT FOOTREST RH

43510-07A00

Unavailable

4

BAR, FRONT FOOTREST LH

43520-07A01

Unavailable

5

SCREW This part replaces 02112-05108.

02112-05107

$1.49

6

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

7

RUBBER, FRONT FOOTREST

43551-07A00

Unavailable

8

PLATE, FRONT FOOTREST RUBBER

43580-07A00

Unavailable

9

PIN

09200-08002

$2.05

10

WASHER This part replaces 08322-11088.

08322-01087

$2.13

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

12

SPRING, RH

09448-19014

Unavailable

13

SPRING, LH

09448-19015

Unavailable

14

BOLT, LH This part replaces 09106-10031.

07130-10357

$5.18

15

CAP

43575-34500

$1.72

16

BRACKET, MUFFLER RH

43811-07A00

Unavailable

17

BRACKET, MUFFLER LH

43821-07A00

Unavailable

18

BUSH, MUFFLER

09319-10033

$6.83

19

BOLT This part replaces 07110-10258.

07130-10257

$4.60

20

CAP

43575-34500

$1.72

21

BAR, PILLION FOOTREST RH

43610-05A02

Unavailable

21

BAR, PILLION FOOTREST LH

43620-05A02

Unavailable

22

RUBBER, PILLION FOOTREST

43612-05A01

Unavailable

23

WASHER, RH

43630-05A00

Unavailable

23

WASHER, LH

43660-05A00

Unavailable

24

.PIN This part replaces 43641-05A00.

09200-08067

Unavailable

25

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

26

WASHER This part replaces 08322-11084.

08322-0108A

$1.92
