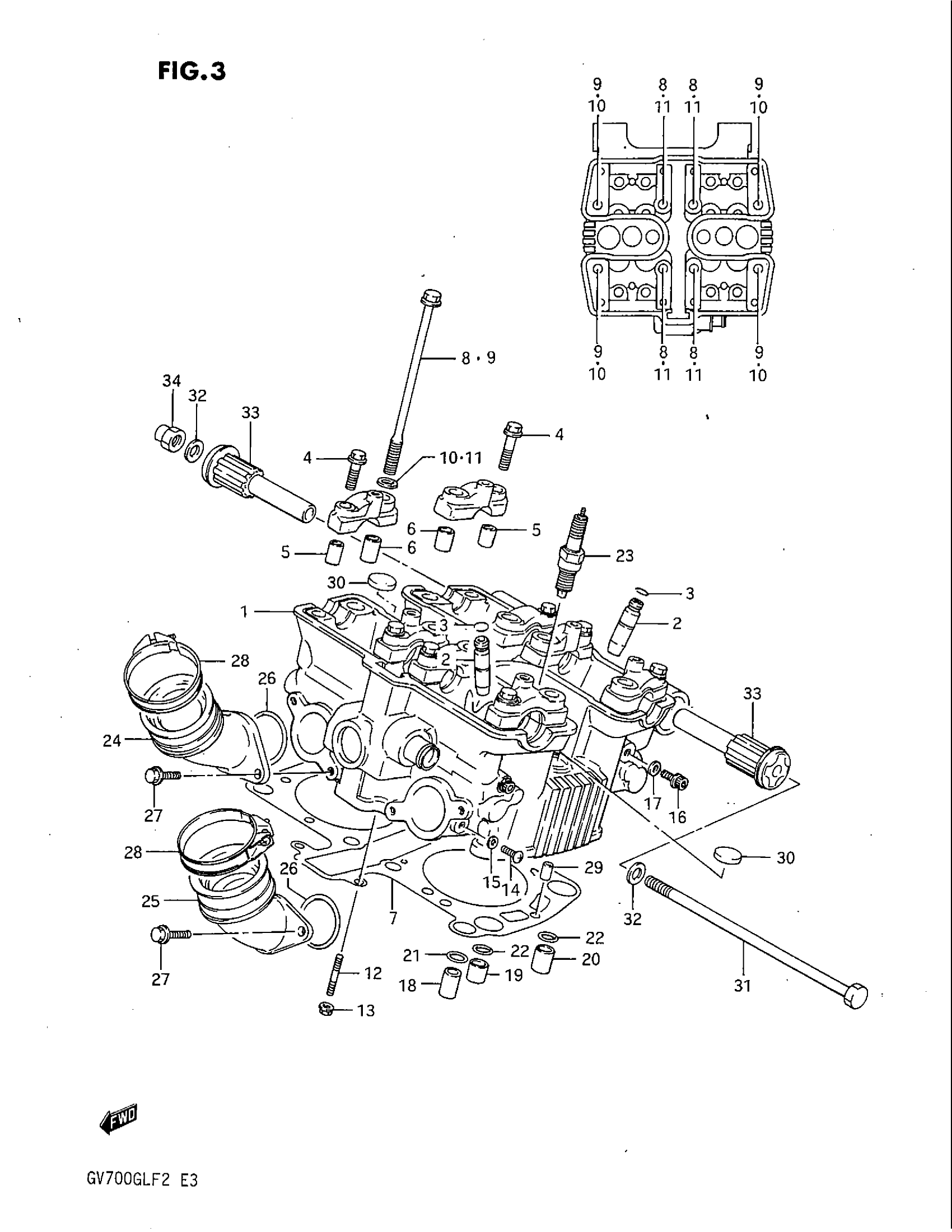

Suzuki GV700GL (1985) CYLINDER HEAD (REAR) Diagram

#

Description
Price

1

HEAD SET, CYLINDER REAR | ~E.NO.103523 This part replaces 11103-07A00.

11103-07A01

Unavailable

1

HEAD SET, CYLINDER REAR | E.NO.103524~; Includes Item(s) 2 - 6

11103-07A01

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 11115-05A70.

11115-33271

Unavailable

3

.RING (10X85)

09381-10004

$1.50

4

BOLT (8X48)

09103-08136

Unavailable

5

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

6

PIN (10.4X13X22)

09206-13004

$2.40

7

GASKET, HEAD REAR | ~E.NO.103523 This part replaces 11142-07A03.

11142-07A04

Unavailable

7

GASKET, HEAD REAR | E.NO.103524~

11142-07A04

Unavailable

8

BOLT (10X155) This part replaces 09103-10104.

09103-10133

$9.48

9

BOLT (10X165) This part replaces 09103-10105.

09103-10134

$9.48

10

WASHER

09160-11005

Unavailable

11

WASHER, REAR This part replaces 09160-10085.

09160-10142

$2.34

12

STUD BOLT This part replaces 01421-06255.

01421-0625A

$1.99

13

NUT This part replaces 08316-16064.

08316-1006B

$2.50

14

SCREW This part replaces 02112-05085.

02112-0508A

$1.49

15

GASKET

09168-05010

$1.71

16

BOLT, OIL GALLERY This part replaces 07120-06125.

07120-0612B

$3.04

17

GASKET

09168-06018

$1.77

18

PIPE, OIL NO.1 (6.4X9X20)

09206-09003

Unavailable

19

PIPE, OIL NO.2 (10.4X13X10) | ~E.NO.103523E.NO.103524~

09206-13005

Unavailable

20

PIN This part replaces 09206-13006.

09206-13017

$7.61

21

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

22

O RING, OIL NO.2

09280-12009

$3.18

23

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

$3.32

23

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

$5.18

24

PIPE, INTAKE, RH

13130-07A00

Unavailable

25

PIPE, INTAKE, LH

13110-07A00

Unavailable

26

O RING

09280-35004

Unavailable

27

BOLT This part replaces 01517-06205.

01550-0620A

$1.97

28

CLAMP, INTAKE PIPE This part replaces 13170-05A00.

09402-52501

$10.90

29

PIN | E.NO.103524~ This part replaces 06211-04103.

04221-04109

Unavailable

30

CAP, WATER JACKET PLUG

09242-22001

Unavailable

31

BOLT

09104-10023

Unavailable

32

WASHER, KNUCKLE END This part replaces 08322-11105.

08322-0110A

$1.84

33

BUSH

11660-05A00

Unavailable

34

NUT This part replaces 09159-10039.

09159-10064

$10.08
