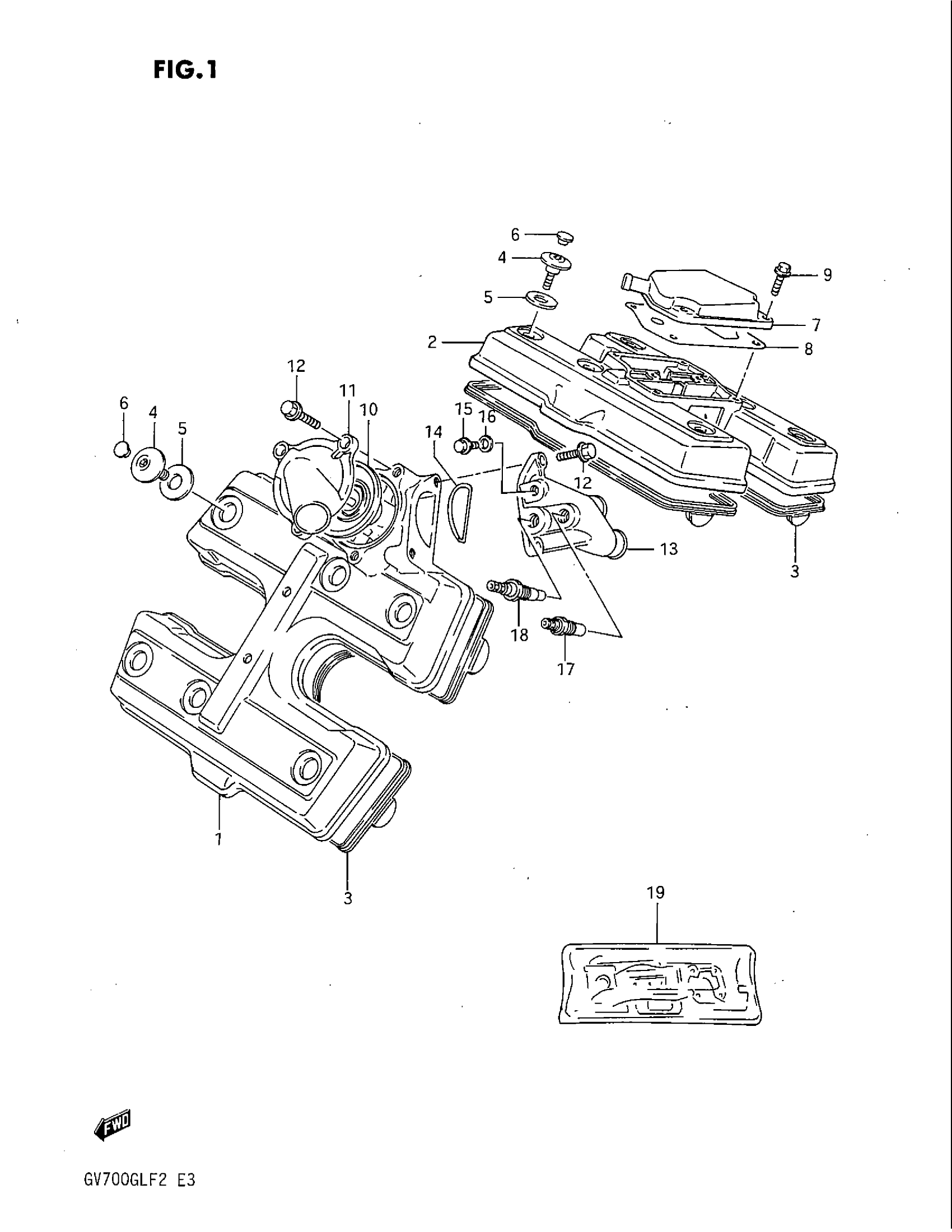

Suzuki GV700GL (1985) CYLINDER HEAD COVER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 11171-07A00.

11171-05A02

Unavailable

2

COVER, CYLINDER HEAD REAR

11172-05A02

Unavailable

3

GASKET

11173-05A00

Unavailable

4

BOLT

09106-07001

Unavailable

5

WASHER This part replaces 09161-11006.

09161-11008

$4.49

6

CAP This part replaces 09250-06008.

09250-06016

$1.96

7

COVER, BREATHER

11176-07A00

Unavailable

8

GASKET

11177-05A01

Unavailable

9

BOLT This part replaces 01517-06208.

01550-06207

$2.30

10

THERMOSTAT, WATER

17670-05A01

$71.42

11

COVER, THERMOSTAT

17661-05A00

Unavailable

12

BOLT This part replaces 01517-06205.

01550-0620A

$1.97

13

CONNECTOR, INLET | MODEL F

17662-05A00

Unavailable

13

CONNECTOR, INLET | MODEL F2

17662-05A01

Unavailable

14

O RING

17665-05A00

Unavailable

15

UNION This part replaces 09360-06015.

09360-06015-XC0

Unavailable

16

GASKET

09168-06004

$1.49

17

SWITCH, RADIATOR FAN | OTHER THAN CALIFORNIA~F.NO.103477

17680-05A01

Unavailable

17

SWITCH, RADIATOR FAN | OTHER THAN CALIFORNIAF.NO.103478~

17680-05A20

Unavailable

17

(CA)SWITCH, RADIATOR FAN | CALIFORNIA ONLYMODEL F

17680-05A10

Unavailable

17

(CA)SWITCH, RADIATOR FAN | CALIFORNIA ONLYMODEL F2

17680-05A30

Unavailable

18

GAUGE ASSY, WATER TEMP

34850-05A10

Unavailable

19

GASKET SET | OPT ~E.NO.103523 This part replaces 11400-07871.

11400-07873

Unavailable

19

GASKET SET | OPT E.NO.103524~

11400-07873

Unavailable
