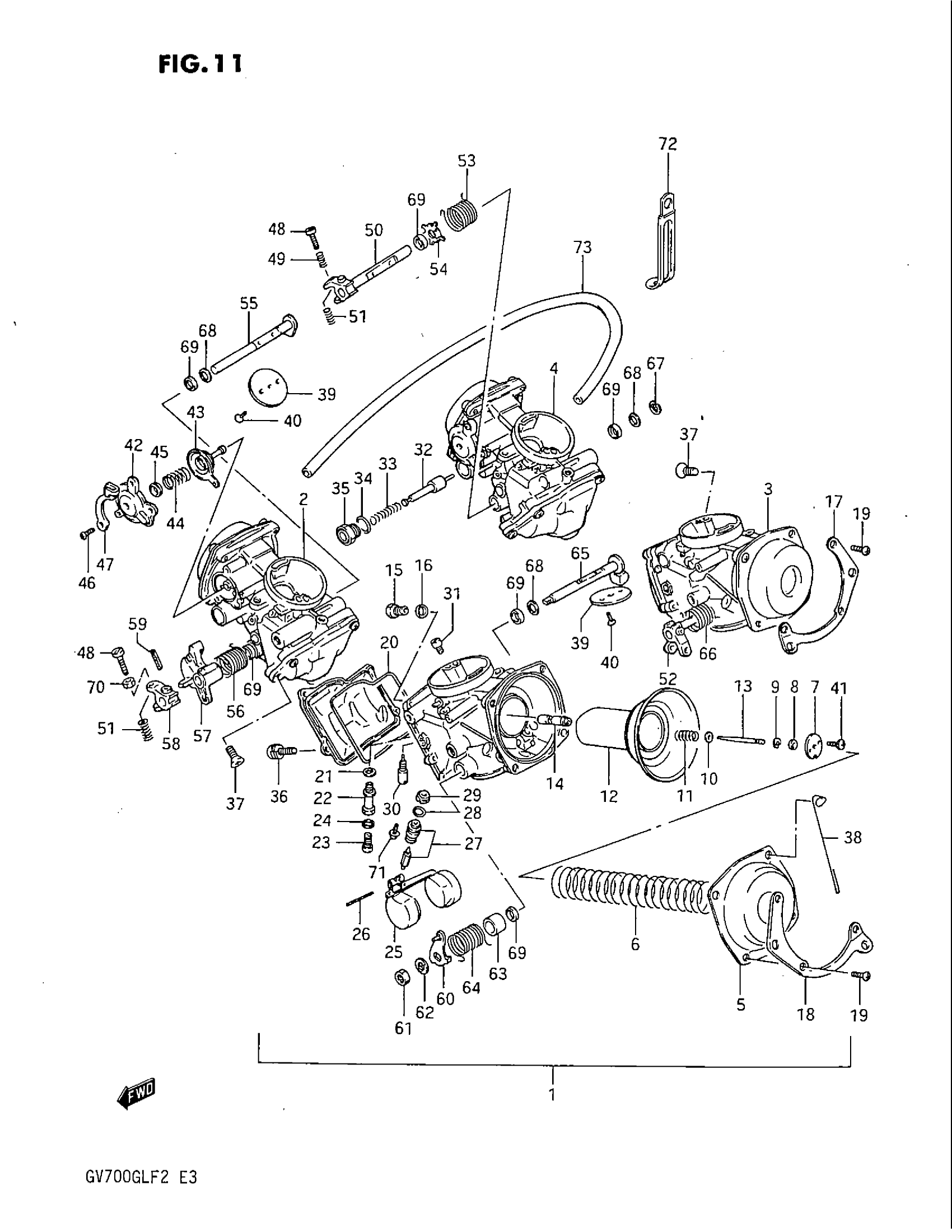

Suzuki GV700GL (1985) CARBURETOR (FOR CALIFORNIA) Diagram

#

Description
Price

1

CARBURETOR, NO.1 | FL

13201-07A20

Unavailable

2

CARBURETOR, NO.2 | FR

13202-07A20

Unavailable

3

CARBURETOR, NO.3 | RL

13203-07A20

Unavailable

4

CARBURETOR, NO.4 | RR; Includes Item(s) 5 - 73

13204-07A20

Unavailable

5

COVER, DIAPHRAGM

13502-05A10

Unavailable

6

SPRING

13503-05A10

$12.57

7

PLATE

13389-37400

$7.08

8

RING

13387-44030

$5.83

9

E RING

13394-31210

$4.64

10

WASHER

13382-44030

$3.71

11

SPRING

13388-44030

$8.12

12

DIAPHRAGM ASSY

13500-07A10

Unavailable

13

NEEDLE, JET (5T07) | FL,FR

13383-07A10

Unavailable

13

NEEDLE, JET (5T08) | RL,RR

13383-07A20

Unavailable

14

JET, NEEDLE (Y-6)

09494-00475

Unavailable

15

SCREW

13605-05A10

$8.12

16

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

17

BRACKET | FR,RL

13627-05A10

Unavailable

18

BRACKET | FL,RR

13627-05A20

Unavailable

19

SCREW, THROTTLE This part replaces 02112-05106.

02112-0510A

$1.49

20

O RING This part replaces 13251-05A10.

13251-38A00

$6.79

21

PACKING

13332-05A10

$3.62

22

HOLDER This part replaces 13385-05A10.

13385-05A11

$14.85

23

JET, MAIN (90) | FL,FR This part replaces 09491-90008.

09491-90011

$17.43

23

M/J 92.5 (N1022 | RL,RR This part replaces 09491-92007.

09491-92005

$12.67

24

GASKET This part replaces 13332-35400.

13386-04700

$2.90

25

FLOAT

13250-05A10

Unavailable

26

PIN

13254-20010

$4.28

27

VALVE ASSY, NEEDLE

13370-44500

$50.98

28

O RING This part replaces 13374-44080.

13374-35C00

$5.99

29

FILTER This part replaces 13376-65010.

13376-19F00

$10.28

30

JET, PILOT (25)

09492-25007

Unavailable

31

JET, PILOT AIR (65) | FL,FR This part replaces 09492-65001.

09492-65005

$11.38

31

NO DESCRIPTION AVAILABLE | RL,RR This part replaces 09492-72110.

09492-75002

Unavailable

32

PLUNGER

13411-05A10

Unavailable

33

SPRING

13417-05A10

Unavailable

34

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

35

HOLDER

13418-05A10

$12.57

36

SCREW | FL:4,FR:3,RL:3,RR:4

13601-04148

$2.81

37

SCREW | FR,RL

13603-05A20

Unavailable

38

CLIP | FL,RR

13692-05A10

Unavailable

39

VALVE, THROTTLE

13551-07A10

Unavailable

40

SCREW

13604-44080

$2.92

41

SCREW This part replaces 13601-03078.

02112-0306B

$1.59

42

COVER This part replaces 13484-37300.

13484-38A10

$22.22

43

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

$51.76

44

SPRING This part replaces 13481-05A10.

13481-45C10

$5.55

45

PLATE

13482-37300

Unavailable

46

SCREW This part replaces 13602-05A40.

02112-0412A

$1.49

47

BRACKET | FR

13627-05A30

Unavailable

48

SCREW | FR,RL,RR

13605-05A20

Unavailable

49

SPRING | RL,RR

13271-05A10

Unavailable

50

SHAFT ASSY | RR

13550-07A10

Unavailable

51

SPRING | FR,RL,RR This part replaces 13268-96110.

13268-96111

$4.35

52

SHAFT ASSY | RL

13550-07A20

Unavailable

53

SPRING | RR

13573-05A10

Unavailable

54

PLATE | RL,RR

13447-05A10

Unavailable

55

SHAFT ASSY | FR

13550-07A30

Unavailable

56

SPRING | FR

13573-05A20

Unavailable

57

LEVER ASSY | FR

13553-05A10

Unavailable

58

LEVER | FR

13553-05A20

Unavailable

59

PIN | FR

13563-47070

Unavailable

60

LEVER ASSY | FL

13553-05A30

Unavailable

61

NUT | FL This part replaces 08310-22088.

08310-00087

$2.13

62

WASHER | FL

13606-47070

Unavailable

63

RING | FL

13557-05A20

Unavailable

64

SPRING | FL

13573-05A30

Unavailable

65

SHAFT ASSY | FL

13550-07A40

Unavailable

66

SPRING | RL

13573-05A40

Unavailable

67

E RING

13617-44080

$2.90

68

WASHER

13557-47070

$3.59

69

SEAL This part replaces 13556-05A10.

13556-05A11

$3.59

70

NUT | FR This part replaces 13607-05A10.

08310-00047

$2.23

71

SCREW

13602-05A10

$3.56

72

CLAMP | FL,FR,RR This part replaces 09404-06401.

09404-06039

$1.74

73

HOSE | FL:430->150,FR:430->325RL:430->200,RR:430

13683-05A40

Unavailable
