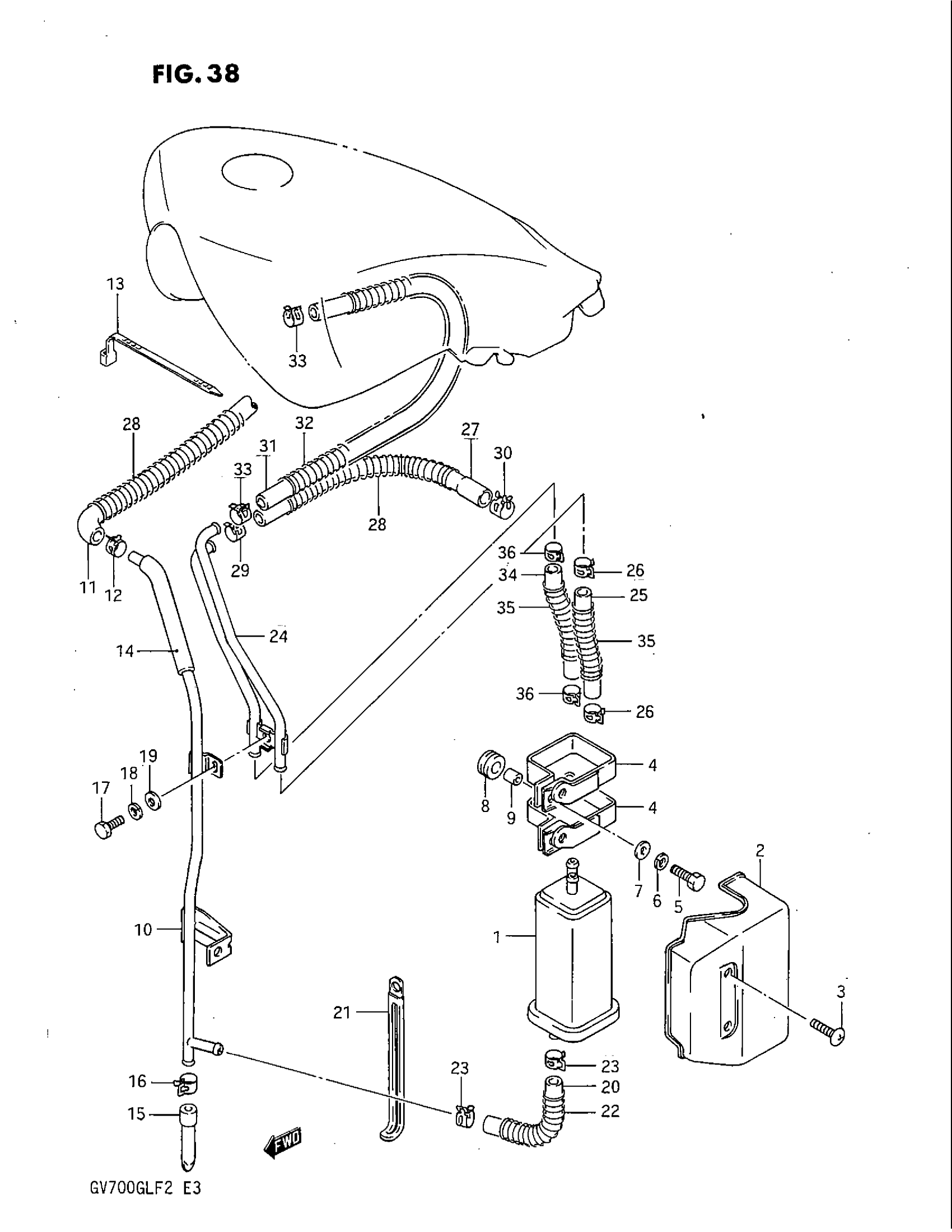

Suzuki GV700GL (1985) CANISTER (FOR CALIFORNIA) Diagram

#

Description
Price

1

CANISTER This part replaces 17210-05222.

17210-14A00

$156.07

2

COVER, CANISTER LH (BLACK)

44993-05A00-15T

Unavailable

3

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06104.

02142-0610A

$1.49

4

CLAMP, CANISTER FITTING NO.2

44890-05A00

Unavailable

5

BOLT This part replaces 01107-06208.

01500-06207

$2.28

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

9

SPACER

09180-06038

$1.98

10

PIPE, CANISTER DRAIN LH

44970-05A00

Unavailable

11

HOSE, CANISTER & CARB This part replaces 09343-05328.

09355-54115-00B

Unavailable

12

CLIP This part replaces 09401-11410.

09401-11413

$2.26

13

CLAMP

09407-14403

$2.26

14

HOSE(7X10.2X200 This part replaces 09343-07073.

09352-70104-00B

$15.32

15

CAP

44491-05A00

Unavailable

16

CLIP This part replaces 09401-11410.

09401-11413

$2.26

17

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

18

LOCK WASHER This part replaces 08321-21065.

08321-0106A

$1.84

19

.WASHER This part replaces 08322-21065.

08322-0106B

$2.26

20

HOSE,6.5X11.5X6 This part replaces 09343-07129.

44421-12FR0

$12.33

21

CLAMP, AIR VENT HOSE This part replaces 09404-06419.

09404-06435

$3.68

22

SPRING

09440-13036

Unavailable

23

CLIP This part replaces 09401-12406.

09401-11415

$2.23

24

PIPE, TANK & CANISTER JOINT

44950-05A00

Unavailable

25

HOSE, JOINT PIPE & CANISTER This part replaces 09343-05315.

09343-05318

Unavailable

26

CLIP This part replaces 09401-11410.

09401-11413

$2.26

27

HOSE, CANISTER & PURGE This part replaces 09343-05226.

09359-54111-600

$25.80

28

SPRING

09440-13036

Unavailable

29

CLIP This part replaces 09401-11410.

09401-11413

$2.26

30

CLIP This part replaces 09401-12406.

09401-11415

$2.23

31

HOSE, CANISTER & CARB This part replaces 09343-05314.

09355-54115-00B

Unavailable

32

SPRING This part replaces 09440-13037.

09440-13037-XC0

Unavailable

33

CLIP This part replaces 09401-11410.

09401-11413

$2.26

34

HOSE, TANK & BREATHER VALVE This part replaces 09343-05274.

09355-54115-600

$14.59

35

SPRING This part replaces 09440-13020.

09440-13051

$10.76

36

CLIP This part replaces 09401-11410.

09401-11413

$2.26
