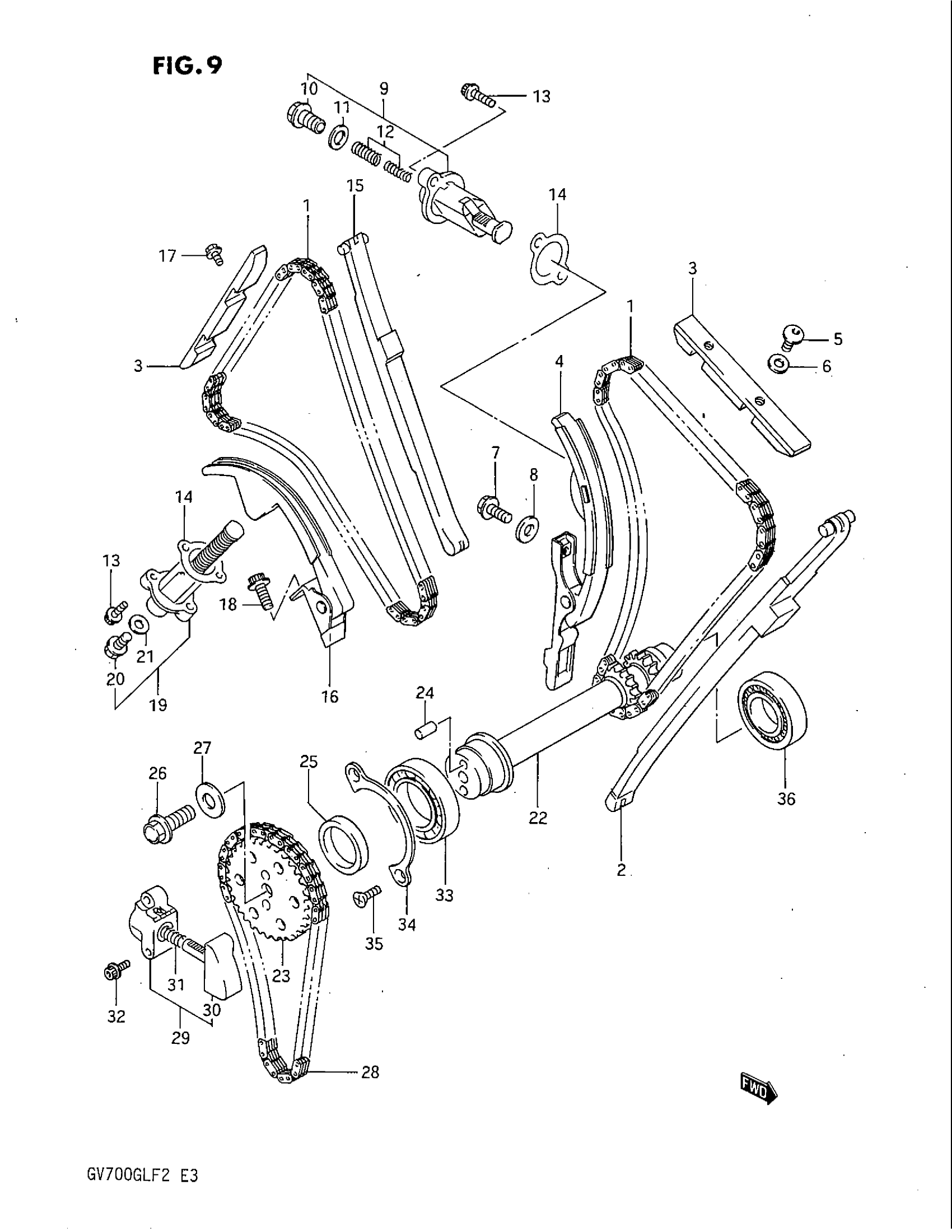

Suzuki GV700GL (1985) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE

12760-07A00

Unavailable

2

GUIDE, FRONT CAM CHAIN, NO.1

12771-05A00

Unavailable

3

GUIDE,CAM CHAIN This part replaces 12782-05A01.

12782-05A02

$44.05

4

TENSIONER, FRONT CAM CHAIN

12810-07A00

Unavailable

5

SCREW This part replaces 09139-06031.

09139-06078

$2.79

6

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

7

BOLT This part replaces 01517-08205.

01550-0820A

$2.23

8

GASKET This part replaces 09168-08014.

09168-08021

$2.61

9

ADJUSTER ASSY, TENSIONER FRON | Includes Item(s) 10 - 12

12831-05A00

Unavailable

10

PLUG

12833-05A00

$16.28

11

GASKET This part replaces 12837-05A00.

09168-12018

$3.08

12

SPRING SET

12838-05A00

Unavailable

13

BOLT This part replaces 07110-06255.

07130-0625B

$3.04

14

.GASKET,TENSIONER ADJUSTER This part replaces 12837-38200.

12837-24A10

$3.25

15

GUIDE, REAR CAM CHAIN, NO.1

12772-05A00

Unavailable

16

TENSIONER, CAM CHAIN REAR

12815-07A01

Unavailable

17

BOLT This part replaces 01517-06108.

01550-06107

$2.80

18

BOLT, BRACKET This part replaces 07110-08208.

07130-08207

$4.32

19

ADJUSTER ASSY, FRONT TENSIONER | Includes Item(s) 20 - 21 This part replaces 12832-05A00.

12832-24A01

Unavailable

20

PLUG

12834-05A00

Unavailable

21

GASKET This part replaces 12837-05A00.

09168-12018

$3.08

22

SHAFT, IDLER | MODEL F This part replaces 12715-05A00.

12715-05A01

Unavailable

22

SHAFT, IDLER | MODEL F2

12715-05A01

Unavailable

23

SPROCKET, IDLER SHAFT

12745-05A00

Unavailable

24

PIN

09261-06001

Unavailable

25

SPACER

09180-32004

Unavailable

26

BOLT (10X27) | MODEL F

09103-10108

Unavailable

26

BOLT (10X24) | MODEL F2

09103-10112

$3.40

27

WASHER | MODEL F

09160-10076

Unavailable

28

CHAIN, IDLER SHAFT DRIVE

12761-05A00

Unavailable

29

ADJUSTER ASSY, IDLER CHAIN | Includes Item(s) 30 - 31

12835-05A00

Unavailable

30

SHOE

12836-05A00

Unavailable

31

SPRING

12839-05A00

Unavailable

32

NO DESCRIPTION AVAILABLE This part replaces 07110-06358.

07130-06357

Unavailable

33

BEARING, RH

09262-32005

Unavailable

34

RETAINER

12746-05A00

Unavailable

35

SCREW This part replaces 02122-06168.

02122-06167

$1.49

36

BEARING, LH

09264-20004

Unavailable
