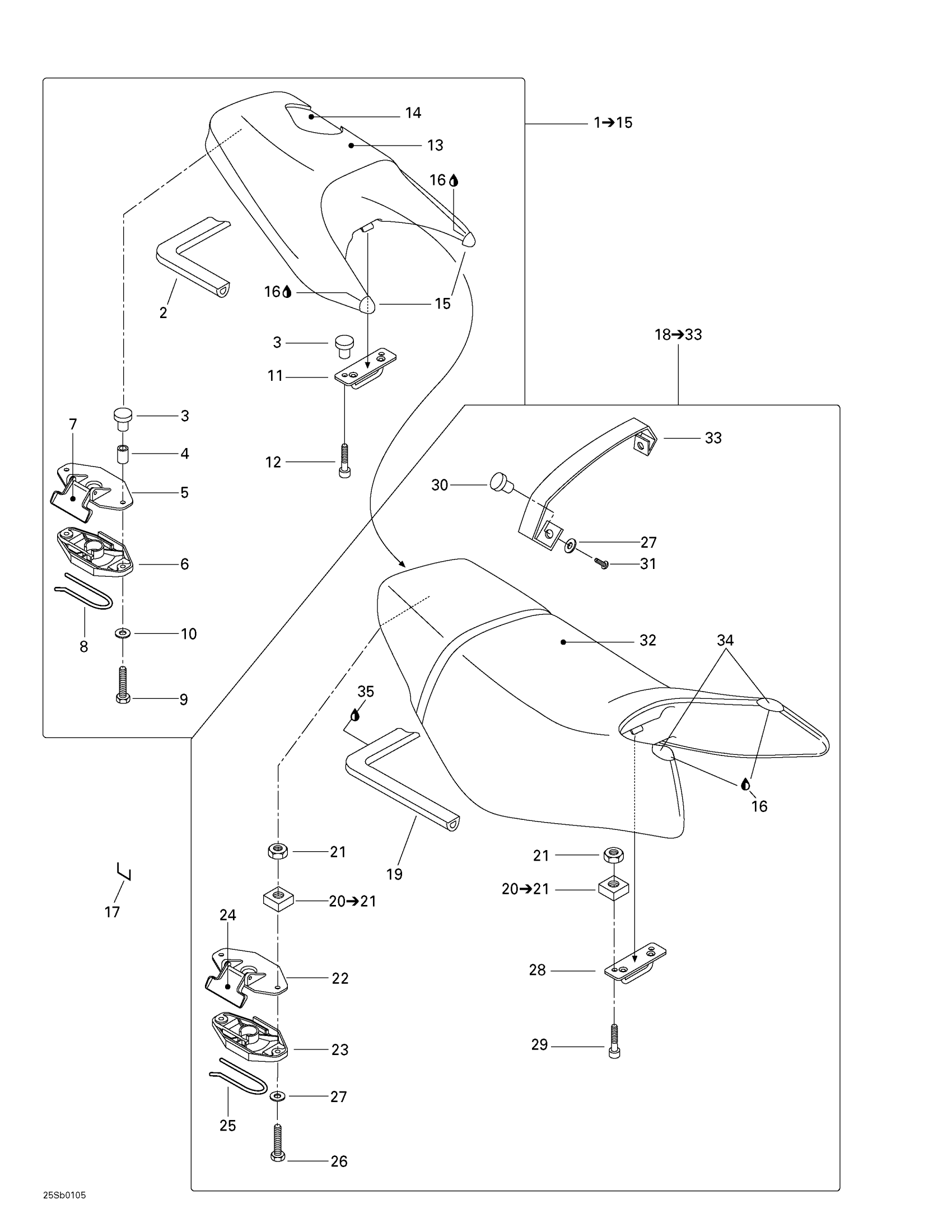

Sea-doo GTX RFI, 5524/5525/5553/5555, 2001 Seat And Engine Cover Diagram

#

Description
Price

1

Rear Seat Ass'y | Includes 1 - 15. GTX RFI (GOLD).

269000599

Unavailable

Rear Seat Ass'y | GTX RFI (GREEN).

269000663

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$149.99

3

Nut Welded, M6

293100003

$9.12

4

SPACER - Call your local BRP dealership

291000532

Unavailable

5

Latch Ass'y

269700109

$24.99

6

Latch Ass'y

269700109

$24.99

7

Latch Ass'y

269700109

$24.99

8

Latch Spring

269700017

$9.19

9

Screw Hex. M6 X 35, Scotch Grip

207363560

$1.89

10

Stainless Flat Washer M6

234061600

$0.33

11

Hook (Seat Base)

291001357

Unavailable

12

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

13

Rear Seat Cover | GTX RFI (GOLD).

269000602

Unavailable

Rear Seat Cover | GTX RFI (GREEN).

269000664

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

RH Rear Seat Corner | GTX RFI (GOLD).

269000604

Unavailable

RH Rear Seat Corner | GTX RFI (GREEN).

269000665

Unavailable

LH Rear Seat Corner | GTX RFI (GOLD).

269000605

Unavailable

LH Rear Seat Corner | GTX RFI (GREEN).

269000666

Unavailable

16

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

17

Staple

293730005

Unavailable

18

Front Seat Ass'y | Includes 18 - 33. GTX RFI (GOLD).

269000699

Unavailable

Front Seat Ass'y | GTX RFI (GREEN).

269000667

Unavailable

19

Was 293200017 Neoprene Seal

219704365

$149.99

20

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

21

Hex. Nut M6

232061600

$1.15

22

Latch Ass'y

269700109

$24.99

23

Latch Ass'y

269700109

$24.99

24

Latch Ass'y

269700109

$24.99

25

Latch Spring

269700017

$9.19

26

Hex. Screw M6 X 30, Scotch Grip

207363060

Unavailable

27

Stainless Flat Washer M6

234061600

$0.33

28

Hook (Seat Base)

291001357

Unavailable

29

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

30

Nut Welded, M6

293100003

$9.12

31

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

32

Front Seat Cover | GTX RFI (GOLD).

269000700

Unavailable

Front Seat Cover | GTX RFI (GREEN).

269000668

Unavailable

33

Seat Strap | GTX RFI (GOLD).

269000701

Unavailable

Seat Strap | GTX RFI (GREEN).

269000669

Unavailable

34

Seat Corner, Clay | GTX 4-TEC LTD.

269000489

Unavailable

Seat Corner

269000645

Unavailable

35

Loctite 401, 1 Oz

293800048

Unavailable
