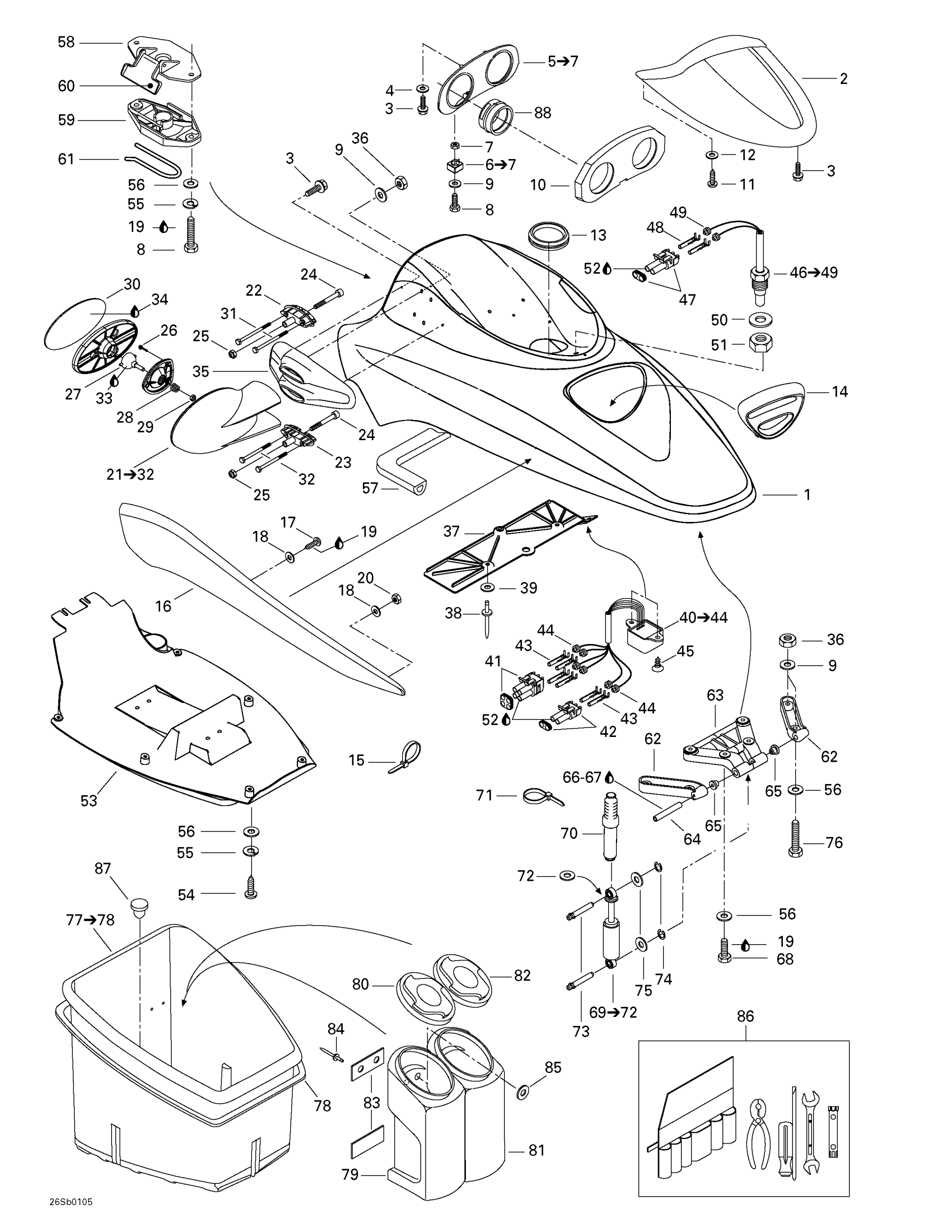

Sea-doo GTX RFI, 5524/5525/5553/5555, 2001 Front Storage Compartment Diagram

#

Description
Price

1

Storage Cover Upper | GTX RFI (GOLD).

269500729

Unavailable

Storage Cover Upper | GTX RFI (GREEN).

269500860

Unavailable

2

Deflector | GTX RFI (GOLD).

269500730

Unavailable

Deflector

269500765

Unavailable

3

Hex. Flange Screw K40 X 16

241141660

$1.48

4

Flat Washer 4 mm, Stainless

234041600

$1.15

5

DASH BOARD - Call your local BRP dealership | Includes 13 - 16.

269500588

Unavailable

6

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Hex. Screw M6 X 25

207162560

$1.47

9

Flat Washer M6, Stainless

234062600

$0.77

10

GAUGE SUPPORT - Call your local BRP dealership

269500585

Unavailable

11

Screw

211000098

$3.80

12

Flat Washer

211200007

Unavailable

13

Rubber Ring

570276900

Unavailable

14

GRILL INTAKE (BLACK) - Call your local BRP dealership

269500694

Unavailable

15

Tie Wrap 142 mm

293750002

$1.25

16

LH Moulding

269500712

Unavailable

RH Moulding

269500713

Unavailable

17

Socket Screw M6 X 16

205461660

$7.48

18

Flat Washer M6, Stainless

234062600

$0.77

19

Loctite 243, 10 ml

293800060

$21.49

20

Hex. Nut M6

232061600

$1.15

21

RH Mirror Ass'y | Includes 21 - 32. GTX RFI (GOLD).

269500734

Unavailable

RH Mirror Ass'y | Includes 16 - 27.

269500767

Unavailable

LH Mirror Ass'y | GTX RFI (GOLD).

269500737

Unavailable

LH Mirror Ass'y

269500778

Unavailable

22

ADAPTOR - Call your local BRP dealership

269500546

Unavailable

23

ADAPTOR - Call your local BRP dealership

269500547

Unavailable

24

Socket Head Screw M8 X 75

205087560

Unavailable

25

Hex. Elastic Nut M8

232581600

$1.48

26

Hex. Flange Screw K40 X 16

241141660

$1.48

27

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

28

Mirror Spring

269500453

$10.49

29

Hex. Elastic Stop Nut M6

232561600

$1.15

30

MIRROR - Call your local BRP dealership

269500454

Unavailable

31

Hex. Screw M6 x 80

207068060

$2.43

32

Hex. Screw M6 X 70

207067060

$5.61

33

Synthetic Grease, 400 G

293550010

Unavailable

34

Silicone Sealant 51388, 300 ml

296000309

$36.99

35

RH Support Mirror | GTX RFI (GOLD).

269500738

Unavailable

RH Support Mirror

269500780

Unavailable

LH Support Mirror | GTX RFI (GOLD).

269500740

Unavailable

LH Support Mirror

269500782

Unavailable

36

Hex. Elastic Stop Nut M6

232561600

$1.15

37

Mounting Plate

278000857

Unavailable

38

Pop Rivet 3/16"

293150008

$0.50

39

Flat Washer 5 mm

234051500

$0.73

40

Compass | GTI RFI LE, Includes 38 to 42

278001243

Unavailable

41

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

42

Male Connector, 2 Circuits

278000220

$15.49

43

Female Terminal

278000223

$3.19

44

Wire Seal

278000218

$4.39

45

Black, Dart

293730016

$9.97

46

Temperature Sensor | Includes 55 - 58.

278000851

Unavailable

47

Male Connector, 2 Circuits

278000220

$15.49

48

Female Terminal

278000223

$3.19

49

Wire Seal

278000218

$4.39

50

Flat Washer 10 mm, Stainless

234000600

$1.46

51

NUT-HEX.PLASTIC M10 X 1.5 - Call your local BRP dealership

250100004

Unavailable

52

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

53

Lower Storage Cover

269500660

Unavailable

54

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership

208661660

Unavailable

55

Lock Washer Helical M6

234161601

$1.15

56

Stainless Flat Washer M6

234061600

$0.33

57

Neoprene Seal 3000Mm Long

219704371

$51.99

58

Latch Ass'y

269700109

$24.99

59

Latch Ass'y

269700109

$24.99

60

Latch Ass'y

269700109

$24.99

61

Latch Spring

269700017

$9.19

62

RH HINGE - Call your local BRP dealership

269700022111

Unavailable

LH HINGE - Call your local BRP dealership

269700023111

Unavailable

63

COVER HINGE - Call your local BRP dealership

269700038

Unavailable

64

AXLE - Call your local BRP dealership

269700024

Unavailable

65

CUSHION - Call your local BRP dealership

293350016

Unavailable

66

Sealant Loctite 648

219703000

$45.99

67

Was 293800041 Loctite Primer 7649

219704458

$39.99

68

Hex. Forming Screw M6 X 20

207162060

$1.29

69

Gas Shock Ass'y | Includes 82 - 85.

269500261

$119.99

70

BELLOW - Call your local BRP dealership

291000919

Unavailable

71

Tie Wrap 94 mm | 4X4

293750001

$1.03

72

Washer

211200034

Unavailable

73

SHORT PIN - Call your local BRP dealership

211400006

Unavailable

74

CIRCLIP - Call your local BRP dealership

293370008

Unavailable

75

Stainless, Flat Washer 8 mm

234081600

$0.55

76

Hex. Screw M6 X 35

207063560

$2.22

77

Storage Tray | Includes 77 - 78.

269500269

Unavailable

78

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

79

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

80

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

81

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

82

Storage Cap

269500604

Unavailable

83

GASKET - Call your local BRP dealership

293250037

Unavailable

84

Pop Rivet 1/8''

293150033

Unavailable

85

Flat Washer M3, Stainless

234032600

$0.55

86

Owners Tool Kit

295500783

Unavailable

87

Rubber Bumper

293830005

$8.09

88

Gauge Support

293720047

Unavailable
