- GTX RFI, 5524/5525/5553/5555, 2001
07- Steering System

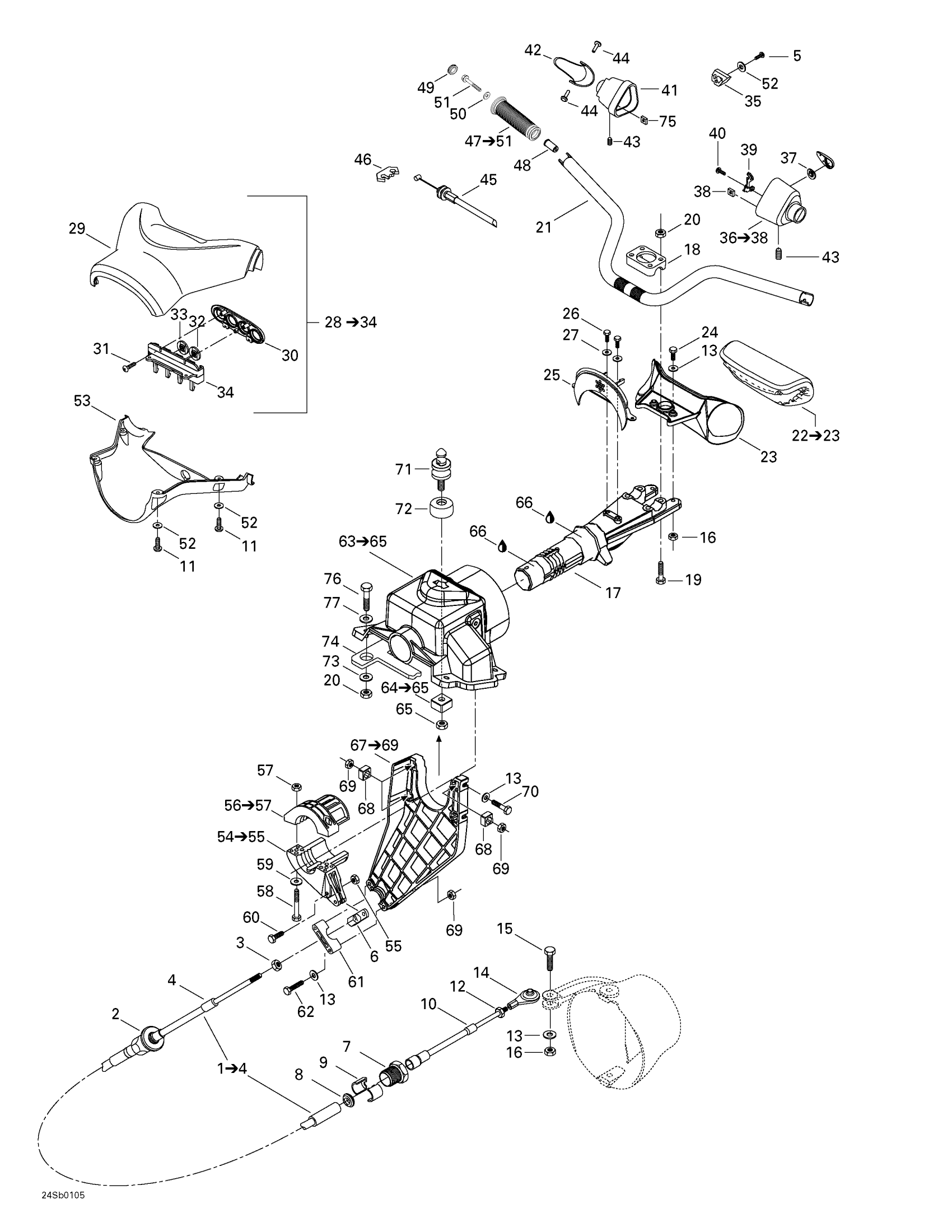

Sea-doo GTX RFI, 5524/5525/5553/5555, 2001 07- Steering System Diagram
#
1
Cable-Steering | Includes 1 - 4. This part replaces 277001009.
277001323
$219.99
2
Ajustment Knob
277000782
$22.99
3
Hex. Nut 1/4"-28
211100056
$0.69
4
Terminal Wiper
277000441
$11.99
5
PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership
209630960
Unavailable
6
Ball Joint
277001180
$35.99
7
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
8
Rubber Washer
293830063
$1.90
9
Half Ring
277001527
$10.37
10
Terminal Wiper
277000441
$11.99
11
Hex. Flange Screw K40 X 16
241141660
$1.48
12
Hex. Nut 1/4"-28
211100056
$0.69
13
Stainless Flat Washer M6
234061600
$0.33
14
Ball Joint
277000775
$51.99
15
Hex. Screw M6 X 30
207063060
$1.89
16
Hex. Elastic Stop Nut M6
232561600
$1.15
17
Steering Stem
277000562400
Unavailable
18
STEERING CLAMP - Call your local BRP dealership
277000142
Unavailable
19
HEX. SCREW M8 X 50 - Call your local BRP dealership
207085060
Unavailable
20
Hex. Elastic Nut M8
232581600
$1.48
21
Handlebar
277000824
Unavailable
22
Pad-Handle | Includes 59 - 60.
277000723
Unavailable
Handle Pad (Cozumel Green) | GTI 5522/5523.
277000875
Unavailable
23
Handle Bar Pad Support
277000687
Unavailable
24
Hex. Screw M6 X 30
207063060
$1.89
25
PLATE - Call your local BRP dealership
277000549
Unavailable
26
HEX. FLANGED SCREW 1/4-20 X 1/2 - Call your local BRP dealership
211000036
Unavailable
27
Flat Washer M6, Stainless
234062600
$0.77
28
Upper Steering Cover Ass’Y | LE, Includes 32 to 37
277000753
Unavailable
29
Not Available As Spare Part - Friction Washer
Unavailable
30
RETAINER PLATE - Call your local BRP dealership | LE
277000688
Unavailable
31
Screw K40 X 10
241140060
$1.48
32
Mode Knob | LE
293000079
Unavailable
33
«Set» Knob | LE
293000080
Unavailable
34
Switch Support | LE
277000563
Unavailable
35
INSERT - Call your local BRP dealership
293450153
Unavailable
36
LH HANDLE HOUSING ASS'Y - Call your local BRP dealership | Includes 14 to 16
277000869
Unavailable
37
Switch Knob
277000306
Unavailable
38
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
39
Retainer Plate
277000845
Unavailable
40
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
209631360
Unavailable
41
THROTTLE HOUSING ASS'Y - Call your local BRP dealership
277000872
Unavailable
42
Throttle Handle
277000214
Unavailable
43
Socket Head Screw M6 X 16
250000036
$9.00
44
PIN - Call your local BRP dealership
277000381
Unavailable
45
THROTTLE CABLE - Call your local BRP dealership
277000847
Unavailable
46
TAB LOCK - Call your local BRP dealership
277000279
Unavailable
47
HANDLE GRIP KIT, BLACK - Call your local BRP dealership
295500691
Unavailable
48
Not Available As Spare Part - Friction Washer
Unavailable
49
Black, Cap
277000203
$9.39
50
Flat Washer M6, Stainless
234062600
$0.77
51
Hex. Screw M6 X 30, Scotch Grip
250000002
$0.92
52
Flat Washer M5, Stainless
234051600
$0.77
53
Not Available As Spare Part - Friction Washer
Unavailable
54
Steering Stem Arm | Includes 41 to 42
277000518
Unavailable
55
Hex. Elastic Stop Nut M6
232561600
$1.15
56
Arm Thrust | Includes 43 to 44
277000519
Unavailable
57
Hex. Elastic Stop Nut M6
232561600
$1.15
58
Hex. Screw M6 X 25
207162560
$1.47
59
Flat Washer M6, Stainless
234062600
$0.77
60
Hex. Screw M6 X 30
211000081
$3.59
61
SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162.
277001528
Unavailable
62
Hex. Screw M6 X 50
207065060
$2.22
63
STEERING SUPPORT - Call your local BRP dealership | Includes 59 to 61
277001471
Unavailable
64
Nut Housing Ass’Y | Includes 64 to 65
271001115
Unavailable
65
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
66
Synthetic Grease, 400 G
293550010
Unavailable
67
CABLE SUPPORT - Call your local BRP dealership | Includes 56 to 58
277001522
Unavailable
68
M6 Nut Housing Ass'y | Includes 290 to 290b
269500252
$7.86
69
Hex. Elastic Stop Nut M6
232561600
$1.15
70
Hex. Forming Screw M6 X 20
207162060
$1.29
71
Latch Stud
291001420
Unavailable
72
RUBBER PAD - Call your local BRP dealership
293830078
Unavailable
73
Flat Washer 8 mm, Stainless
234082600
$2.43
74
GASKET - Call your local BRP dealership
293250171
Unavailable
75
SQUARE NUT M6 - Call your local BRP dealership
232860600
Unavailable
76
Hex. Screw M8 X 35
207083560
$1.47
77
Stainless, Flat Washer 8 mm
234081600
$0.55
