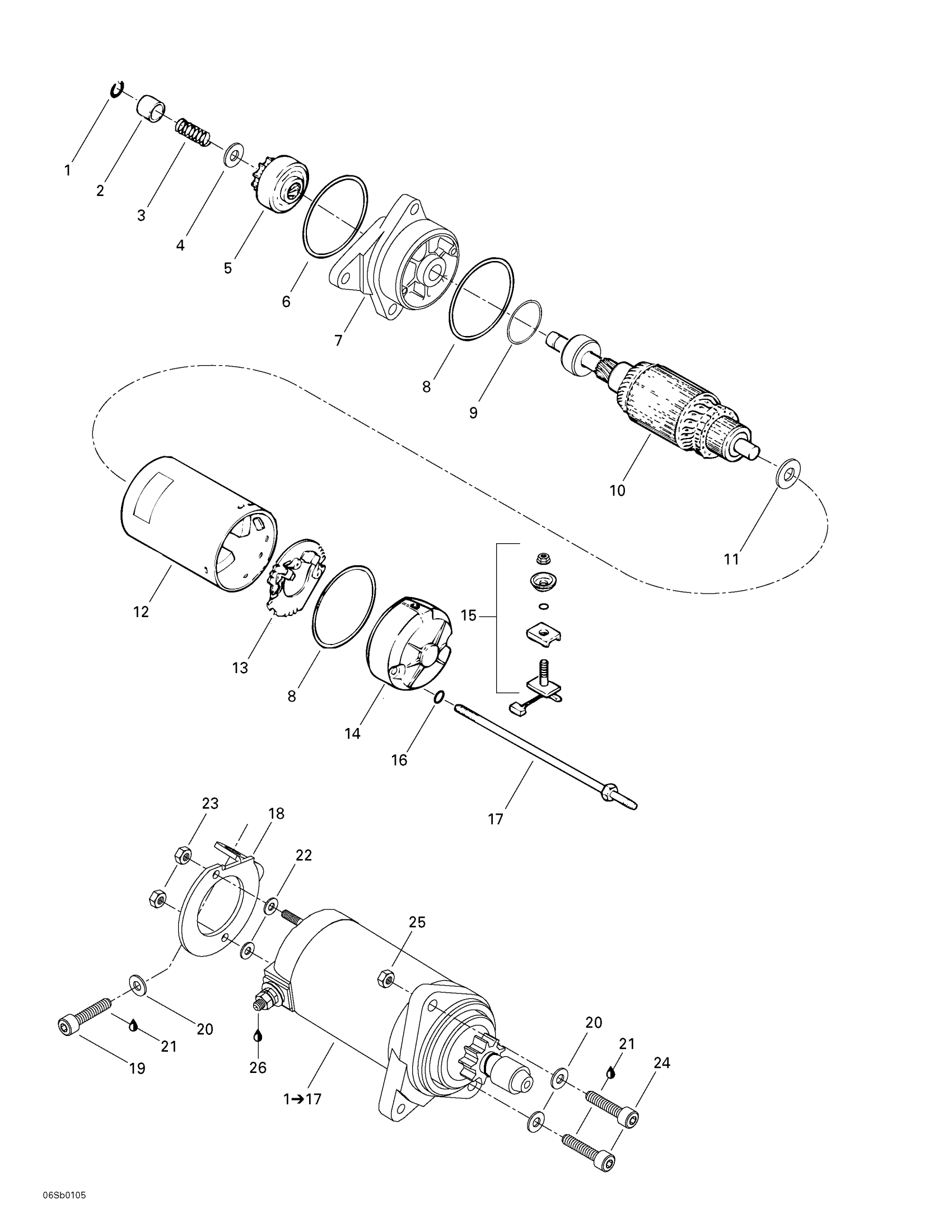

Sea-doo GTX RFI, 5524/5525/5553/5555, 2001 04- Starter Diagram
#
Description
Price
1
STARTER ASS'Y - Call your local BRP dealership | Includes 1 to 18
278001936
$234.49
1
SNAP RING - Call your local BRP dealership
410207700
Unavailable
2
Stopper Bushing
278000254
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
WASHER PLATE - Call your local BRP dealership
278001105
Unavailable
5
STARTER CLUTCH ASS'Y - Call your local BRP dealership
278001106
Unavailable
6
O-RING - Call your local BRP dealership
278000694
Unavailable
7
Housing Ass'y
278001520
Unavailable
8
O-Ring
278000695
$14.24
9
O-Ring Kit This part replaces 278000696.
415129342
$14.24
10
Armature
278001108
Unavailable
11
THRUST WASHER - Call your local BRP dealership
278000056
Unavailable
12
YOKE ASS'Y - Call your local BRP dealership
278001109
Unavailable
13
Brush Holder
278001296
$40.99
14
Rear Cover
278001111
Unavailable
15
BRUSH STARTER KIT - Call your local BRP dealership
278001298
Unavailable
16
O-RING - Call your local BRP dealership
278000060
Unavailable
17
RETAINER STUD - Call your local BRP dealership
278000170
Unavailable
18
STARTER SUPPORT - Call your local BRP dealership
270000467
Unavailable
19
Socket Head Screw M8 X 16
205081660
Unavailable
20
Stainless, Flat Washer 8 mm
234081600
$0.55
21
Loctite 262, 50 ml
413705200
Unavailable
22
Flat Washer M5, Stainless
234051600
$0.77
23
Hex. Elastic Nut M5 | X
232551600
$1.15
24
Socket Head Screw M8 X 45
205084560
$3.59
25
Hex. Elastic Nut M8
232581600
$1.48
26
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
