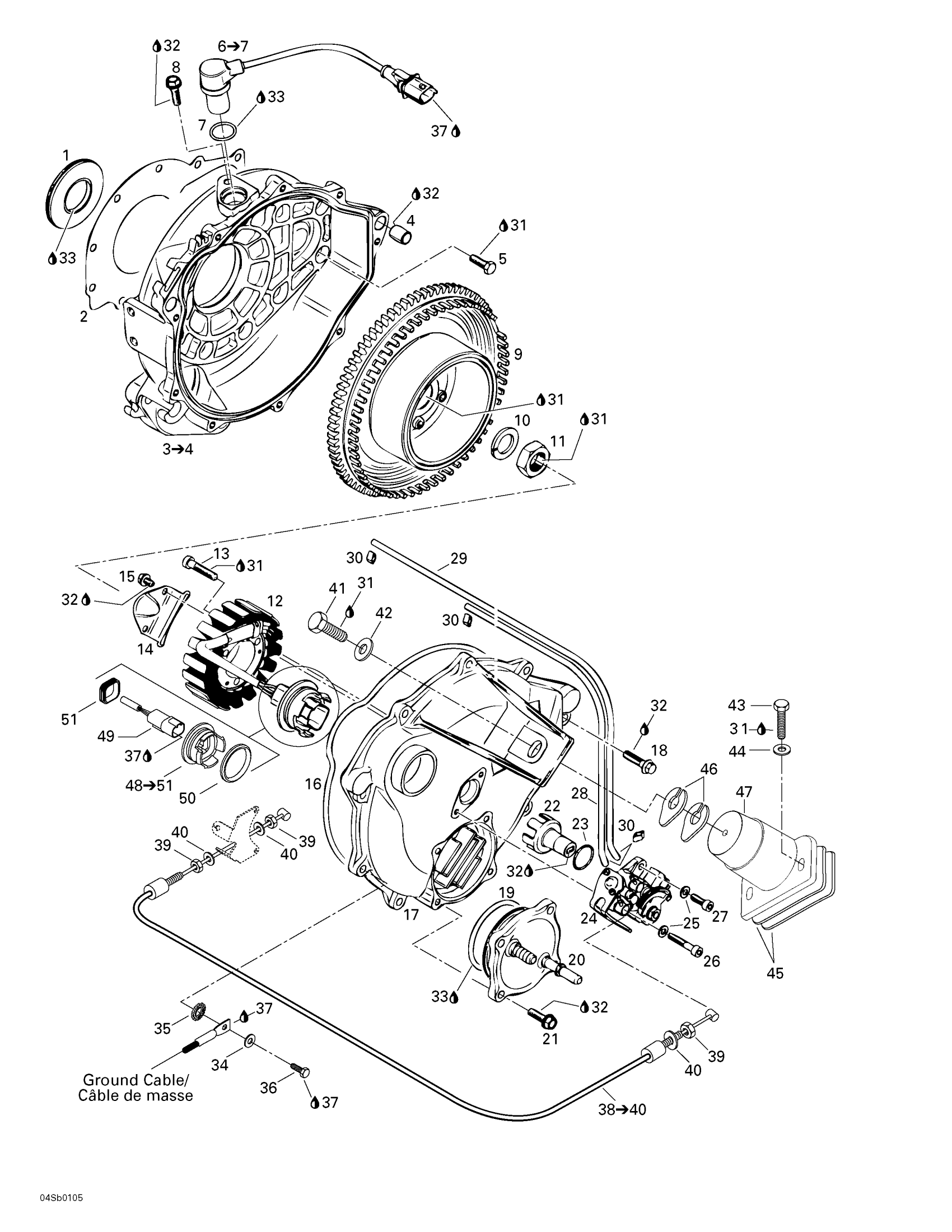

Sea-doo GTX RFI, 5524/5525/5553/5555, 2001 03- Magneto, Oil Pump Diagram

#

Description
Price

1

Oil Seal This part replaces 290830749.

420830749

$18.54

2

Gasket

290931470

Unavailable

3

Ignition Housing (Silver) | Includes 3 - 4.

290811011

Unavailable

4

Dowel Tube

290229153

Unavailable

5

Hex. Screw M6 X 25

420240034

$1.90

6

Crank Sensor | Includes 6 - 7.

278001346

Unavailable

7

O-Ring

293300051

Unavailable

8

Hex. Forming Screw M6 X 16

210361660

Unavailable

9

Trigger Wheel

290966562

Unavailable

10

Lock Washer 18 mm

290945757

Unavailable

11

HEX. NUT M18 - Call your local BRP dealership

420942220

Unavailable

12

Stator Plate Ass'y

290887950

Unavailable

13

Socket Head Screw M6 X 35 This part replaces 420640051.

420640052

$5.61

14

Holding Strip

290851400

Unavailable

15

HEX. SCREW M5 X 8 - Call your local BRP dealership

207150844

Unavailable

16

O-RING - Call your local BRP dealership This part replaces 290950360.

420950360

Unavailable

17

Ignition Cover

290811022

Unavailable

18

Hex. Flange Screw M6 x 25

290240033

Unavailable

19

O-RING - Call your local BRP dealership

420850390

Unavailable

20

WATERCHANNEL COVER - Call your local BRP dealership

290811220

Unavailable

21

Tapping Screw M6 x 20

290941253

Unavailable

22

Shaft Oil Pump

290837392

Unavailable

23

O-RING - Call your local BRP dealership

293300018

Unavailable

24

Oil Pump Ass'y

290887339

Unavailable

25

Lock Washer

290845389

Unavailable

26

Socket Head Screw M5 x 30

290940883

Unavailable

27

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205051660

Unavailable

28

Oil Hose 1500Mm Long

219704404

$17.26

29

Oil Hose 1500Mm Long

219704404

$17.26

30

Clamp

420256408

Unavailable

31

Loctite 243, 10 ml

293800060

$21.49

32

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

33

Dow Corning 111, 150 g

413707000

$59.99

34

Flat Washer M6, Stainless

234062600

$0.77

35

External Serrated Lock Washer 6 mm

234461608

$1.15

36

Hex. Screw M6 X 16, Scotch Grip

207361660

$1.15

37

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

38

INJECTION CABLE ASS'Y - Call your local BRP dealership | Includes 42 to 45

270000437

Unavailable

39

Hex. Nut M6

232160600

$1.15

40

Stainless Flat Washer M6

234061600

$0.33

41

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

42

Flat Washer 8 mm, Stainless

234082600

$2.43

43

Hex. Screw M8 X 40

207184060

$2.22

44

Stainless, Flat Washer 8 mm

234081600

$0.55

45

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

46

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

47

Rubber Mount

270000426

Unavailable

48

Adaptor Ass'y | Includes 2 to 5

270000243

Unavailable

49

Female Housing, 4 Circuits

278000635

$16.49

50

Gasket

293300033

Unavailable

51

GASKET - Call your local BRP dealership

293200042

Unavailable

52

ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886392

Unavailable

53

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886396

Unavailable
