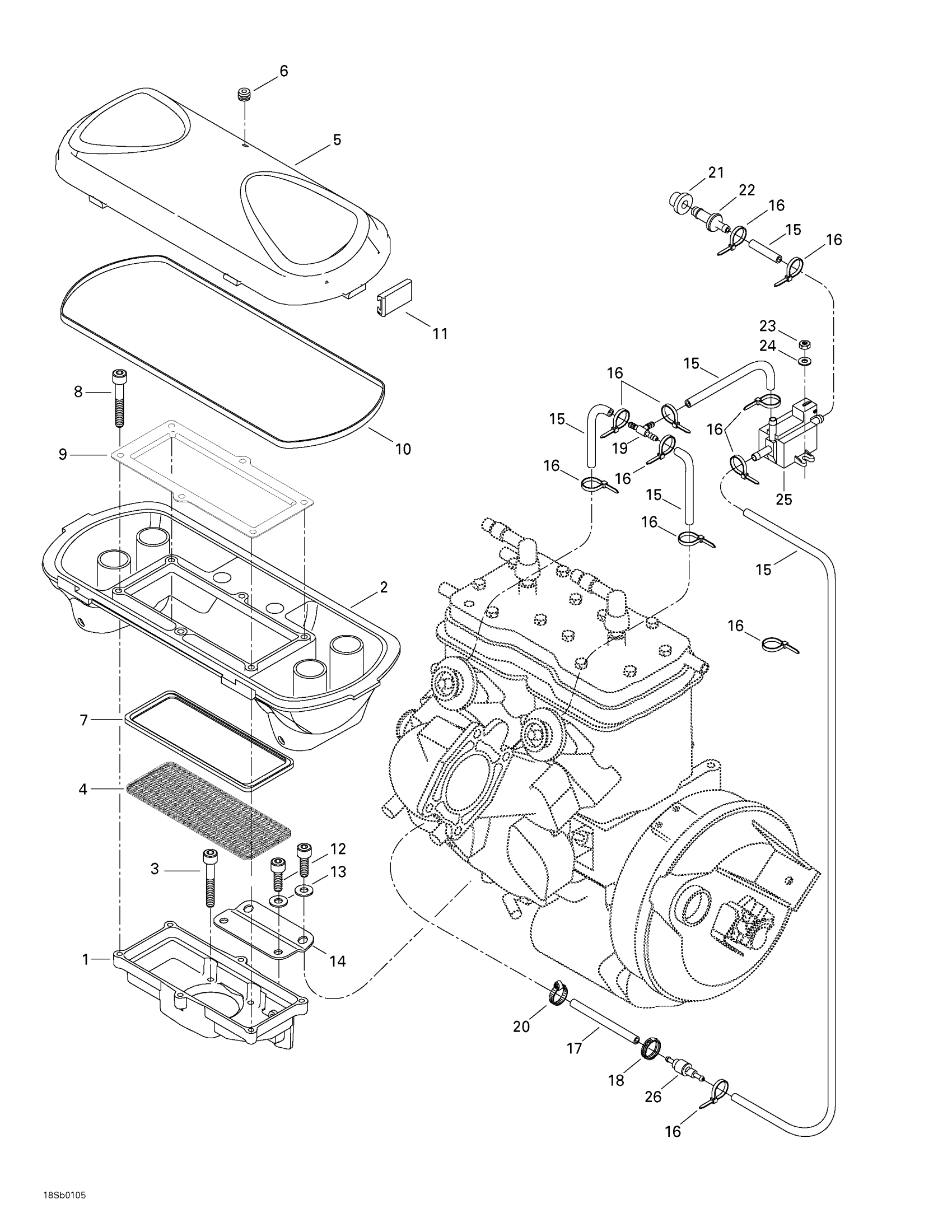

Sea-doo GTX RFI, 5524/5525/5553/5555, 2001 Air Intake System Diagram

#

Description
Price

1

Arrester Housing

273000086

Unavailable

2

AIR SILENCER BASE - Call your local BRP dealership

273000103

Unavailable

3

SOCKET HEAD SCREW M6 X 90, SCOTCH GRIP - Call your local BRP dealership

205569060

Unavailable

4

Flame Arrester

273000118

Unavailable

5

AIR SILENCER COVER - Call your local BRP dealership

273000115

Unavailable

6

Rubber Bumper

293830005

$8.09

7

ISOLATOR - Call your local BRP dealership

273000020

Unavailable

8

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

9

HOLDER PLATE - Call your local BRP dealership

273000059

Unavailable

10

GASKET - Call your local BRP dealership

293250023

Unavailable

11

Retainer Clip

273000006

Unavailable

12

Socket Head Screw M6 X 12, Scotch Grip

205561260

$1.58

13

Stainless Flat Washer M6

234061600

$0.33

14

Support

270000248

Unavailable

15

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

16

Tie Wrap 94 mm | 4X4

293750001

$1.03

17

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

18

Oetiker Clamp

293650042

$3.09

19

T-Fitting

293710068

$8.29

20

Tridon Gear Clamp

293650170

$1.99

21

Grommet

293720029

$1.59

22

Fitting

293700031

Unavailable

23

Hex. Elastic Nut M5 | X

232551600

$1.15

24

Flat Washer M5, Stainless

234051600

$0.77

25

Solenoid Valve

270600005

$116.49

26

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable
