- GTX RFI, 5524/5525/5553/5555, 2001
01- Engine Support And Muffler

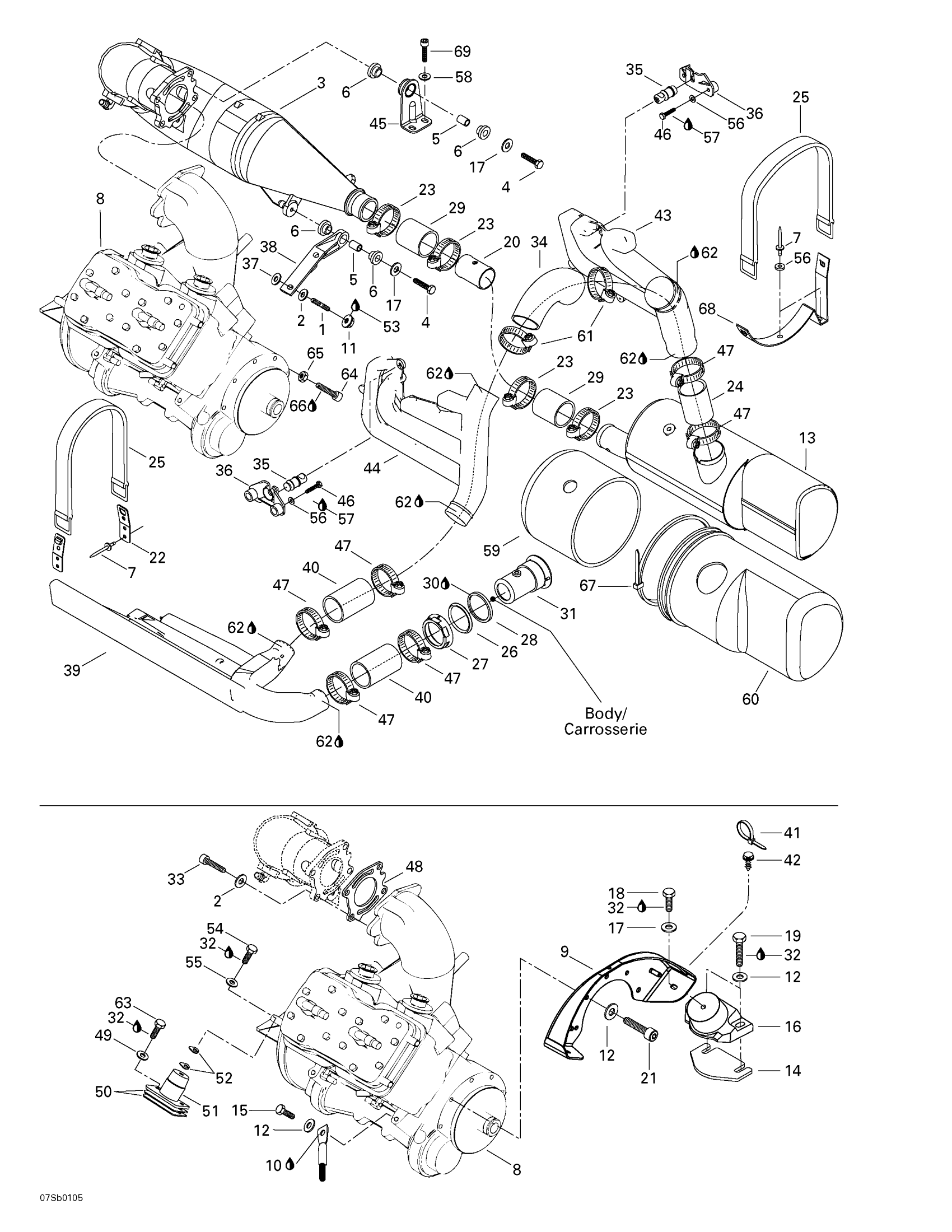

Sea-doo GTX RFI, 5524/5525/5553/5555, 2001 01- Engine Support And Muffler Diagram
#
1
Stud M10 X 60
250300007
Unavailable
2
Flat Washer 10 mm, Stainless
234001600
$1.15
3
Head Pipe Ass'y
274000926
Unavailable
4
Hex. Screw M8 X 40, Scotch Grip
207284060
$2.24
5
Bushing
274000254
$13.17
6
RUBBER BUSHING - Call your local BRP dealership
293830036
$14.23
7
Avdel Rivet 3/16"
293150037
$0.56
8
Short Block <<787>> Ass'y | Includes 1 - 23.
290078703
Unavailable
1
REBUILD-SHORT BLOCK 787 RFI - Call your local BRP dealership
421000913
Unavailable
9
Engine Support
270000359
Unavailable
10
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
11
Hex. Flange Nut M10
233101600
$5.29
12
Stainless, Flat Washer 8 mm
234081600
$0.55
13
Muffler
274000737
Unavailable
14
Shim 0.3 mm
270000122
Unavailable
SHIM 1.3 MM - Call your local BRP dealership
270000123
Unavailable
15
Hex. Screw M8 X 25, Scotch Grip
207382560
$2.43
16
Rubber Mount
270000427
Unavailable
17
Flat Washer 8 mm, Stainless
234082600
$2.43
18
Hex. Screw M8 X 16
207181660
Unavailable
19
Hex. Screw M8 X 40
207184060
$2.22
20
Curved Tube
274000776
Unavailable
21
Socket Head Screw M8 X 25, Scotch Grip
205582560
$2.19
22
Strap Clip
293850030
$11.12
23
Tridon Clamp
293650023
$13.49
24
EXHAUST HOSE - Call your local BRP dealership
274000530
Unavailable
25
Retainer Strap
293850097
$11.64
26
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
27
Nut 72 mm
274000224
$16.34
28
GASKET - Call your local BRP dealership
293250041
Unavailable
29
Exhaust Hose
274000170
Unavailable
30
Silicone Sealant 51388, 300 ml
296000309
$36.99
31
EXHAUST OUTLET - Call your local BRP dealership
274000222
Unavailable
32
Loctite 243, 10 ml
293800060
$21.49
33
SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership
244003560
Unavailable
34
EXHAUST HOSE - Call your local BRP dealership
274000563
Unavailable
35
RUBBER PAD - Call your local BRP dealership
293830062
Unavailable
36
Pad Support
291001204
Unavailable
37
Flat Washer 10 mm, Stainless
234002600
$2.22
38
SUPPORT PIPE - Call your local BRP dealership
274000759
Unavailable
39
Resonator
295500683
Unavailable
40
Exhaust Hose
274000616
Unavailable
41
Tie-Rap 180 mm
414115200
$0.11
42
Mount Dart
293730040
$1.04
43
RH Resonator
274000604
Unavailable
44
LH Resonator
274000655
Unavailable
45
Pipe Support
274000779
Unavailable
46
Hex. Screw M5 X 20
207152060
$1.47
47
Tridon Clamp
293650064
$8.29
48
Gasket
290931503
Unavailable
49
Stainless, Flat Washer 8 mm
234081600
$0.55
50
Shim 0.3 mm
270000122
Unavailable
SHIM 1.3 MM - Call your local BRP dealership
270000123
Unavailable
51
Rubber Mount
270000426
Unavailable
52
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
53
Loctite 262, 50 ml
413705200
Unavailable
54
HEX. SCREW M8 X 20 - Call your local BRP dealership
207182060
Unavailable
55
Flat Washer 8 mm, Stainless
234082600
$2.43
56
Flat Washer 5 mm, Stainless
234052600
$0.77
57
Loctite 243, 10 ml
293800060
$21.49
58
Flat Washer M8.5 x 18
293050001
$3.07
59
Front MÙffler Cover
274000790
Unavailable
60
Rear Muffler Cover
274000793
Unavailable
61
Tridon Clamp
293650179
$11.49
62
Sealant, Loctite, 80 ml | DS 650
293800090
$26.99
63
Hex. Screw M8 X 40
207184060
$2.22
64
Socket Screw M10 X 30
205003060
Unavailable
65
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
66
Loctite 271, 10 ml
293800005
$26.99
67
WRAP_TIE 828 X 9 - Call your local BRP dealership
293750020
Unavailable
68
Muffler Support
274000400
Unavailable
69
Socket Head Screw M8 X 25, Scotch Grip
205582560
$2.19
