- GTX RFI, 5524/5525/5553/5555, 2001
01- Cylinder, Exhaust Manifold

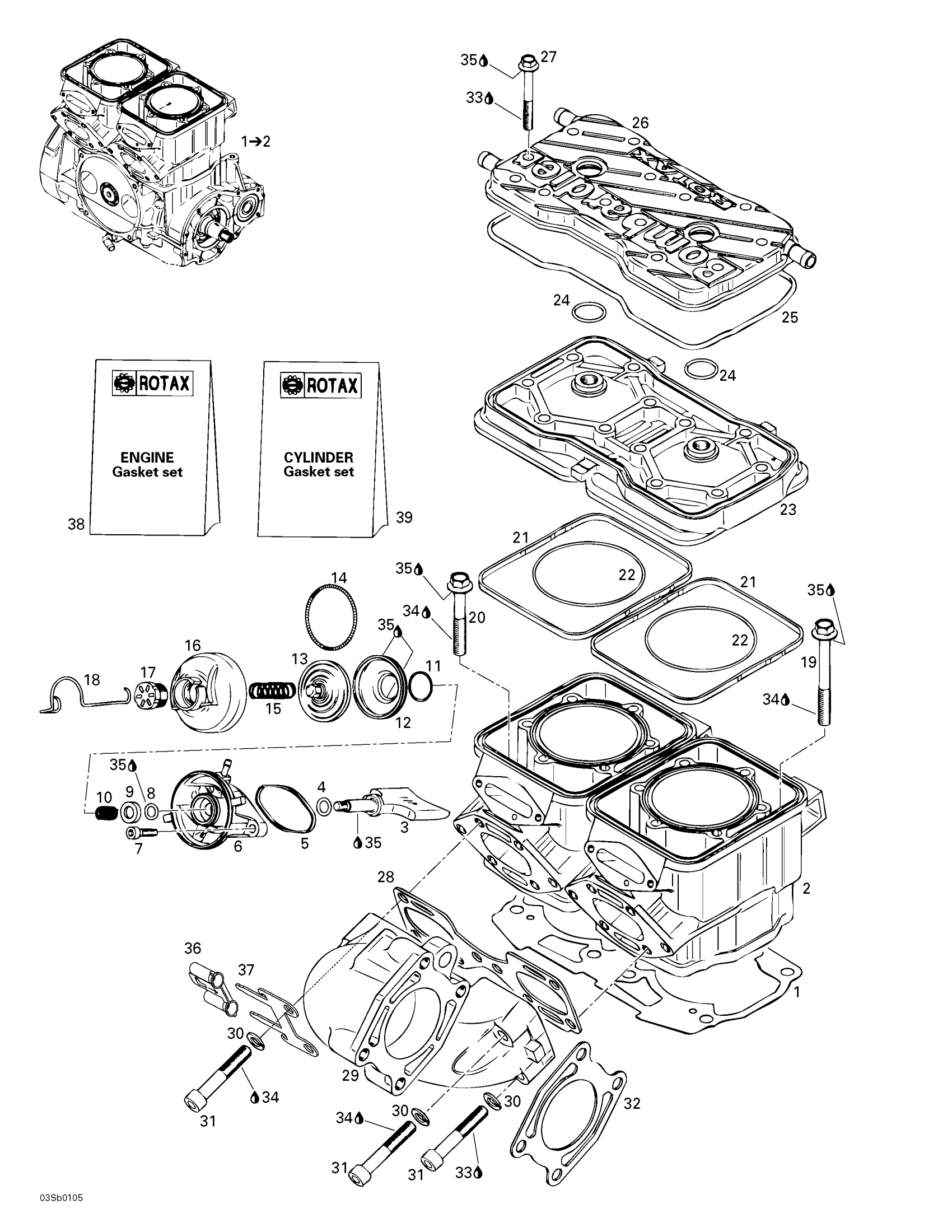

Sea-doo GTX RFI, 5524/5525/5553/5555, 2001 01- Cylinder, Exhaust Manifold Diagram
#
1
Short Block <<787>> Ass'y | Includes 1 - 23.
290078703
Unavailable
1
REBUILD-SHORT BLOCK 787 RFI - Call your local BRP dealership
421000913
Unavailable
1
Not Available As Spare Part - Friction Washer
Unavailable
Gasket Cylinder 0.6 mm
290931728
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
Gasket Cylinder 0.4 mm
290931726
Unavailable
Gasket Cylinder 0.3 mm
290931725
Unavailable
2
Cylinder with Sleeve
290923846
Unavailable
2
REBUILD-CYLINDER RESLEEVING 787 RFI GREY - Call your local BRP dealership
421000813
Unavailable
3
Exhaust Valve
290854354
Unavailable
4
O-Ring
420931765
$0.98
5
Rubber Gasket
290931670
Unavailable
6
Valve Housing
290854438
Unavailable
7
Socket Head Screw M6 X 25
205062560
$1.69
8
O-Ring
420931765
$0.98
9
Supporting Ring
290926225
Unavailable
10
COMPRESSION SPRING - Call your local BRP dealership
420838260
Unavailable
11
Hose Spring This part replaces 420838253.
420838255
$7.41
12
Exhaust Bellows
420260723
$42.49
13
Exhaust Valve
290854446
Unavailable
14
Hose Spring This part replaces 420239048.
420939281
$7.41
15
Compression Spring
290939137
Unavailable
16
Valve Cover This part replaces 420911558.
420911559
$29.49
17
Adjuster Screw
420241221
$14.22
18
SPRING CLIP - Call your local BRP dealership
420838083
Unavailable
19
Hex. Flange Screw M10 x 105
290941903
Unavailable
20
Flange Screw M10 x 73,5
290941333
Unavailable
21
RUBBER RING - Call your local BRP dealership
290931420
Unavailable
22
O-Ring | Included in gasket kit
420931410
$3.39
23
HEAD CYLINDER - Call your local BRP dealership This part replaces 290923302.
420923308
Unavailable
24
O-Ring
420430782
$5.39
25
O-RING - Call your local BRP dealership
290831550
Unavailable
26
Cylinder Head Cover (Silver)
290923313
Unavailable
27
Hex. Flange Screw M8 x 60
290240728
Unavailable
28
Gasket This part replaces 290931480.
420931481
$19.49
29
Exhaust Manifold
290979484
Unavailable
30
Helicoidal Lock Washer M10 | XT Models
234101601
$1.15
31
SOCKET HEAD SCREW M10 X 60 - Call your local BRP dealership
205006060
Unavailable
32
Gasket
290931503
Unavailable
33
Loctite 243, 10 ml
293800060
$21.49
34
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
35
Dow Corning 111, 150 g
413707000
$59.99
36
INSULATOR - Call your local BRP dealership
278000213
Unavailable
37
Ground Plate
278001273
Unavailable
38
ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886392
Unavailable
39
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886396
Unavailable
