- GTX RFI, 5524/5525/5553/5555, 2001
01- Crankcase And Rotary Valve

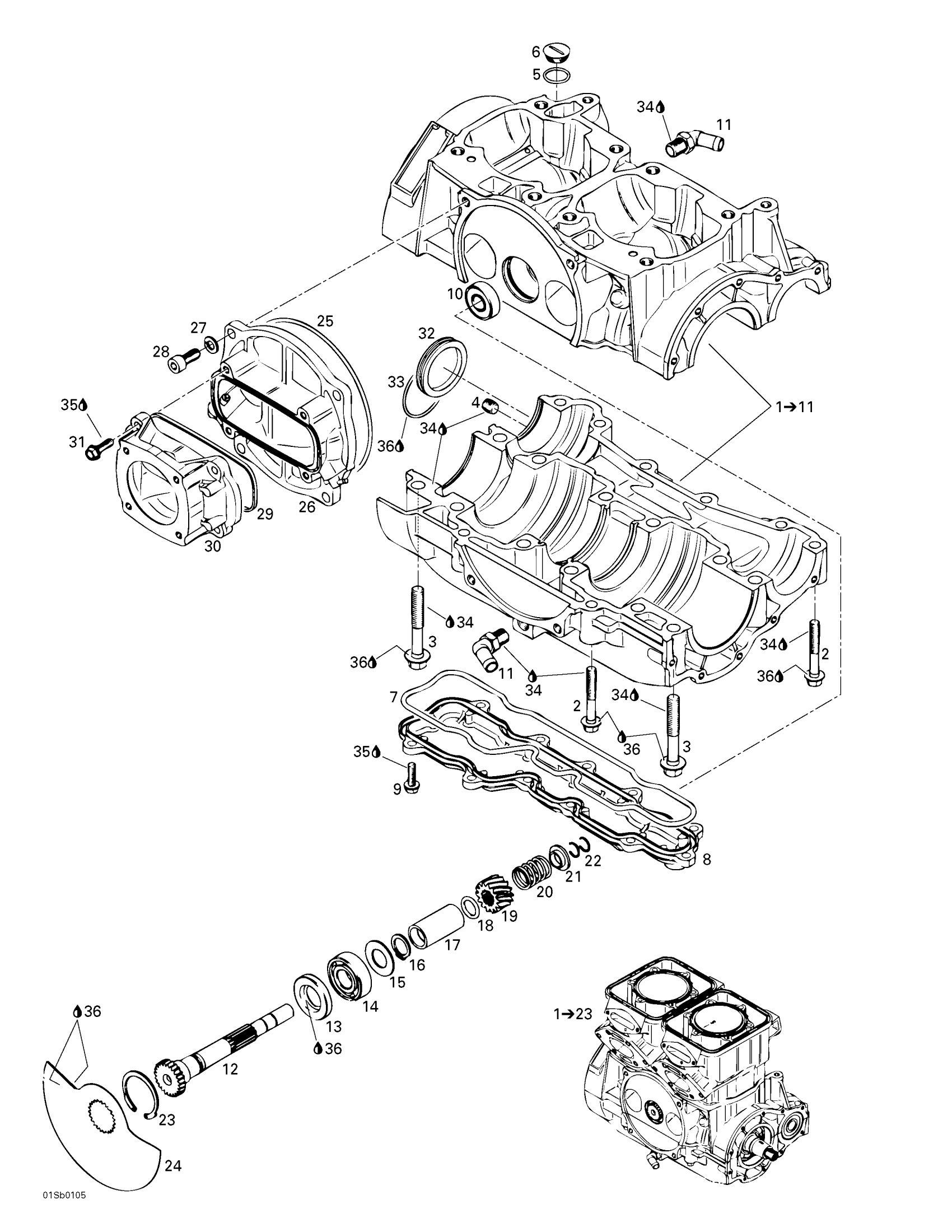

Sea-doo GTX RFI, 5524/5525/5553/5555, 2001 01- Crankcase And Rotary Valve Diagram
#
1
Short Block <<787>> Ass'y | Includes 1 - 23.
290078703
Unavailable
1
REBUILD-SHORT BLOCK 787 RFI - Call your local BRP dealership
421000913
Unavailable
1
Crankcase Ass'y <<787>> (Silver) | Includes 1 - 11.
290888223
Unavailable
2
Hex. Flange Screw M8 x 55
290240328
Unavailable
3
Flange Screw M10 x 73,5
290941333
Unavailable
4
Drain Plug 1/8"
290240483
Unavailable
5
O-Ring
420250890
$3.06
6
Drain Plug
420241801
$7.41
7
O-RING - Call your local BRP dealership This part replaces 290950360.
420950360
Unavailable
8
Waterchannel Cover
290811236
Unavailable
9
Tapping Screw M6 x 20
290941253
Unavailable
10
Ball Bearing
420932797
$19.99
11
Angular Tube
420922242
$14.83
12
Rotary Valve Shaft
290837352
Unavailable
13
OIL SEAL - Call your local BRP dealership
420930580
Unavailable
14
BALL BEARING - Call your local BRP dealership
293350051
Unavailable
15
SHIM - Call your local BRP dealership
420227439
Unavailable
16
SNAP RING - Call your local BRP dealership
420845450
Unavailable
17
Distance Sleeve
290847287
Unavailable
18
O-Ring
293300024
$8.57
19
Sprocket 14Th This part replaces 420935735.
420935736
$88.99
20
SPRING - Call your local BRP dealership
420938810
Unavailable
21
SPRING SEAT - Call your local BRP dealership
420827430
Unavailable
22
CIRCLIP - Call your local BRP dealership
420845160
Unavailable
23
Lock Ring
420945880
$4.44
24
ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502.
420924502
Unavailable
25
O-RING - Call your local BRP dealership
290831767
Unavailable
26
ROTARY VALVE COVER - Call your local BRP dealership | Includes 26 to 27
420811037
$359.99
27
Lock Spring Washer 8 mm, Stainless
234180602
$1.16
28
SOCKET SCREW M8 X 20 - Call your local BRP dealership
205082060
Unavailable
29
RUBBER RING - Call your local BRP dealership
420850520
Unavailable
30
Intake Manifold
290867821
Unavailable
31
Taptite Screw
290841543
Unavailable
32
BEARING COVER - Call your local BRP dealership This part replaces 290810745.
420810745
Unavailable
33
O-Ring
290230300
Unavailable
34
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
35
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
36
Dow Corning 111, 150 g
413707000
$59.99
37
ENGINE GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886392
Unavailable
38
CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership
290886396
Unavailable
