- GTX DI, 5649/5659, 2000
10- Rear Electrical Box

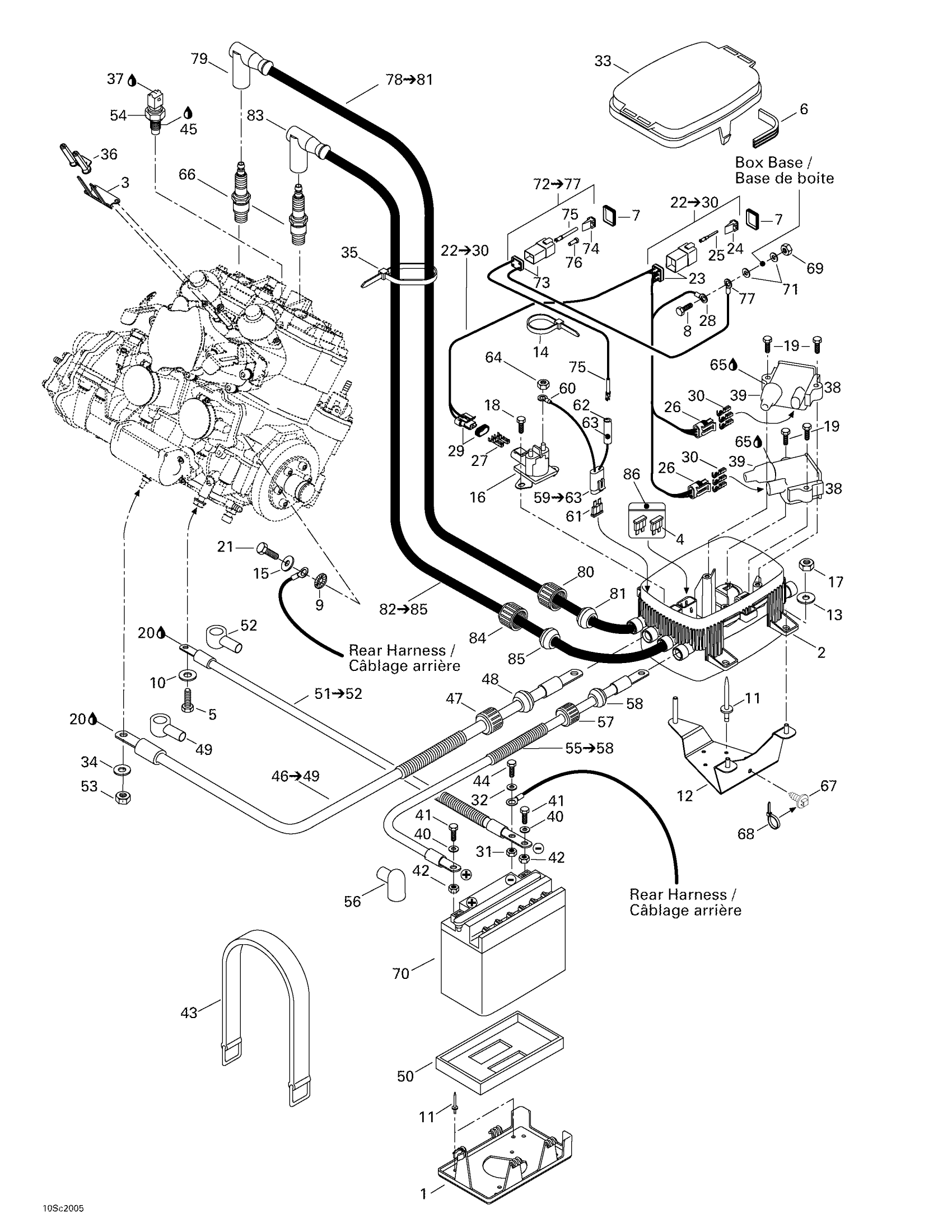

Sea-doo GTX DI, 5649/5659, 2000 10- Rear Electrical Box Diagram
#
1
BATTERY SUPPORT - Call your local BRP dealership
278001580
Unavailable
2
Electric box base
278001469
Unavailable
3
Ground Plate
278001495
Unavailable
4
Fuse, 25 Amperes
278001443
$3.28
Fuse, 15 Amperes
278000343
$3.28
5
Hex. Screw M10 X 20, Scotch Grip
207302060
$4.02
6
GASKET - Call your local BRP dealership
278001173
Unavailable
7
Gasket
293200030
Unavailable
8
Hex. Screw M6 X 16
207161660
$1.59
9
External Serrated Lock Washer 6 mm
234461608
$1.15
10
Flat Washer 10 mm, Stainless
234001600
$1.15
11
Avdel Rivet 3/16"
293150037
$0.56
12
Electric Box Support
278001487
Unavailable
13
Flat Washer M6, Stainless
234062600
$0.77
14
Tie Wrap 142 mm
293750002
$1.25
15
Stainless Flat Washer M6
234061600
$0.33
16
Starter Relay
278003012
$42.49
17
Hex. Elastic Stop Nut M6
232561600
$1.15
18
Hex. Flange Screw M6 X 10
210261040
$1.48
19
SCREW-TAPP.HEX.ISO.1479F - Call your local BRP dealership
209463840
Unavailable
20
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
21
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
22
Box Harness | Includes 17 to 25
278001458
Unavailable
23
Male Terminal Housing, 6 Circuits
710001539
$19.99
24
Female Lock, 6 Circuits
278000735
$3.19
25
Male Terminal
278000631
$4.39
26
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
278001467
Unavailable
27
Female Terminal
278001114
$3.19
28
Open Barrel Terminal
278001392
$4.79
29
Male Connector, 2 Circuits
278001113
$16.86
30
FEMALE TERMINAL - Call your local BRP dealership
278001468
Unavailable
31
Hex. Elastic Stop Nut M6
232561600
$1.15
32
Stainless Flat Washer M6
234061600
$0.33
33
ELECTRIC BOX COVER - Call your local BRP dealership
278001433
Unavailable
34
Stainless Flat Washer M6
234061600
$0.33
35
Tie Wrap 142 mm
293750002
$1.25
36
INSULATOR - Call your local BRP dealership
278001512
Unavailable
37
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
38
IGNITION COIL - Call your local BRP dealership
278001451
Unavailable
39
PROTECTOR CAP - Call your local BRP dealership
278001470
Unavailable
40
FLAT WASHER 6 MM - Call your local BRP dealership
211200018
Unavailable
41
Hex. Screw M6 X 16
207161644
$0.74
42
Hex. Nut M6
232061414
$0.53
43
Retainer Strap
293850097
$11.64
44
Hex. Cap Screw M6 X 12
207161260
$1.26
45
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
46
STARTER CABLE (RED) - Call your local BRP dealership | Includes 33 - 36.
278001457
Unavailable
47
Electric Wire Cap
278000100
Unavailable
48
GROMMET - Call your local BRP dealership
278000098
Unavailable
49
PROTECTION CAP - Call your local BRP dealership
278000020
Unavailable
50
Battery Lower Pad
278001234
Unavailable
51
Ground Cable, Black
278001462
Unavailable
52
Wire Cap (Black)
278001491
Unavailable
53
Hex. Elastic Stop Nut M6
232561600
$1.15
54
Temperature Sensor
278002895
$39.99
55
Battery Positive Cable (Red) | Includes 55 - 58.
278001459
Unavailable
56
PROTECTION CAP - Call your local BRP dealership
278000020
Unavailable
57
Electric Wire Cap
278000100
Unavailable
58
GROMMET - Call your local BRP dealership
278000098
Unavailable
59
Fuse Harness, 30 Amperes | Includes 37 to 41
278001453
Unavailable
60
Open Barrel Terminal
278001392
$4.79
61
Fuse, 30 Amperes
410917200
$3.28
62
FEMALE TERMINAL - Call your local BRP dealership
515175260
Unavailable
63
Deutsch Joint Housing
515175259
Unavailable
64
Hex. Elastic Stop Nut M6
232561600
$1.15
65
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
66
Spark Plug NGK Zfr4f-11
278001650
$6.35
67
Mount Dart
293730040
$1.04
68
Tie-Rap 180 mm
414115200
$0.11
69
Hex. Elastic Stop Nut M6
232561600
$1.15
70
Battery 19A | Includes 5 to 8
278001756
$153.36
71
Flat Washer 6 mm
234062410
$0.77
72
ELECTRIC BOX HARNESS ASS'Y - Call your local BRP dealership | Includes 26 to 30
278001494
Unavailable
73
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
278001477
Unavailable
74
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
278001478
Unavailable
75
MALE TERMINAL - Call your local BRP dealership
515175261
Unavailable
76
Sealing Cap
293000052
$3.19
77
Open Barrel Terminal
278001392
$4.79
78
COIL CABLE, 735 MM - Call your local BRP dealership | Includes 31 to 33
278001454
Unavailable
79
Spark Plug Cap
278001452
Unavailable
80
Electric Wire Cap
278000100
Unavailable
81
Grommet
278000682
Unavailable
82
COIL CABLE, 635MM - Call your local BRP dealership | Includes 34 to 36
278001466
Unavailable
83
Spark Plug Cap
278001452
Unavailable
84
Electric Wire Cap
278000100
Unavailable
85
Grommet
278000682
Unavailable
86
Not Available As Spare Part - Friction Washer
Unavailable
